Multi-Rate Electric Energy Metering RS485 Communication Cloud Data Connectivity Prepaid Meter DIN Rail LCD Three Phase

Inquiry Now

Product Details

Quick Details

Dimensions: 90*144*68mm
Accuracy Class: 0.5/1s
Phase: Three Phase
Display Type: Digital Only
Brand Name: Elecnova

Specifications

Basic Info.

Model NO.

DTSY1946A

Power Meter Connection

Terminal

Measured Signal

Pulse Peak

Type

Energy Meter

Certification

ISO, CE

Customized

Measuring Energy Range

0-99999

Accuracy Class

0.5/1s

Output Voltage

230V

Voltage Range

0.8un~1.2un

Input Current

AC 5(80)a

Frequency

50/60 Hz

Rated Voltage

230V

Communication

RS-485/Modbus/2-Wire

Nomal Voltage

3*230/400V

Specification

90*144*68mm

Trademark

ELECNOVA

Origin

China

HS Code

9030899090

Production Capacity

30000PCS/Per Month

Product Description

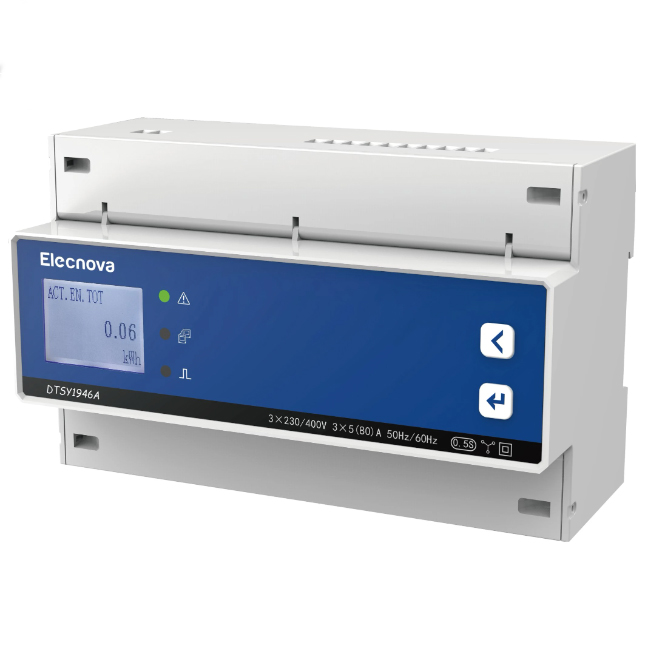

Product Name: Single phase multi-functional recharge billing system prepaid kwh Digital Bi-directional Energy Meter

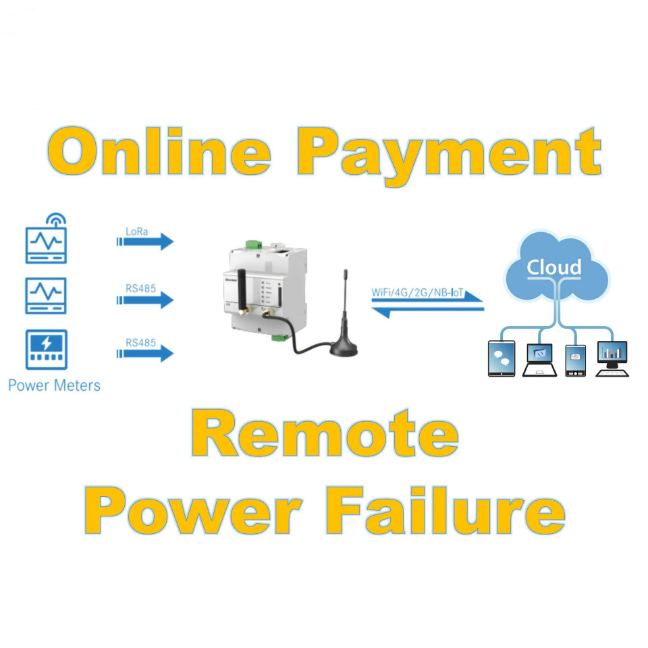

the DTSY1946A electricity meter is designed by adopting advanced microprocessor and signal processing technology, and it possesses functions as below: whole power quantity measurement, electric energy metering, time-division charging, prepayment, demand quantity statistic, event recording, malignant load identification, fault warning, etc. In addition, it is equipped with switching value input, relay output, pulse output and RS485 communication interface. the instrument inner is provided with magnetic latching relay, with the maximum make-break capacity reaching 80A, applicable to power consumption management of commercial real estate, school and intelligent building.
MultiRate Electric Energy Metering RS485 Communication Cloud Data Connectivity Prepaid Meter DIN Rail LCD Three Phase

Technical Specifications

Model		DTSY1946A
Electrical Characteristics
Accuracy grade		Voltage and current: 0.2%; Power: 0.5%; Frequency: ±0.01Hz Active electric energy: grade 0.5S; Reactive electric energy: Grade 2
Rated voltage		AC 3230/400V
Input current	Direct access	AC 5(80)A
Frequency		50/60 Hz
Wiring Mode		Three-phase four-wire
Scope of working voltage		0.8Un ~ 1.2Un
Power consumption	Power consumption of voltage circuit	< 5VA
	Power consumption of current circuit	< 2VA
Startup current	Direct access	0.004Ib
	Access via CT	0.002In
Switching Value Input
AC wet contact		on: AC 180~270V off:< AC 100V
Communication Characteristics
RS485 communication interface		Modbus-RTU protocol, maximum baud rate: 9,600bps
Multi-functional Output Interface
Electric energy pulse		Pulse width: 80ms±20ms
Clock pulse
Tripping Control Output Interface
Contact capacity		3A/250 VAC; 5A/30 VDC
Mechanical Characteristics
Dimension (mm)		9014468
IP protection		IP54 (panel)/IP20 (case)
Environmental Characteristics
Working temperature		(-25~70) C
Storage temperature		(-30~80) C
Relative humidity		(5~95) % (no condensation)

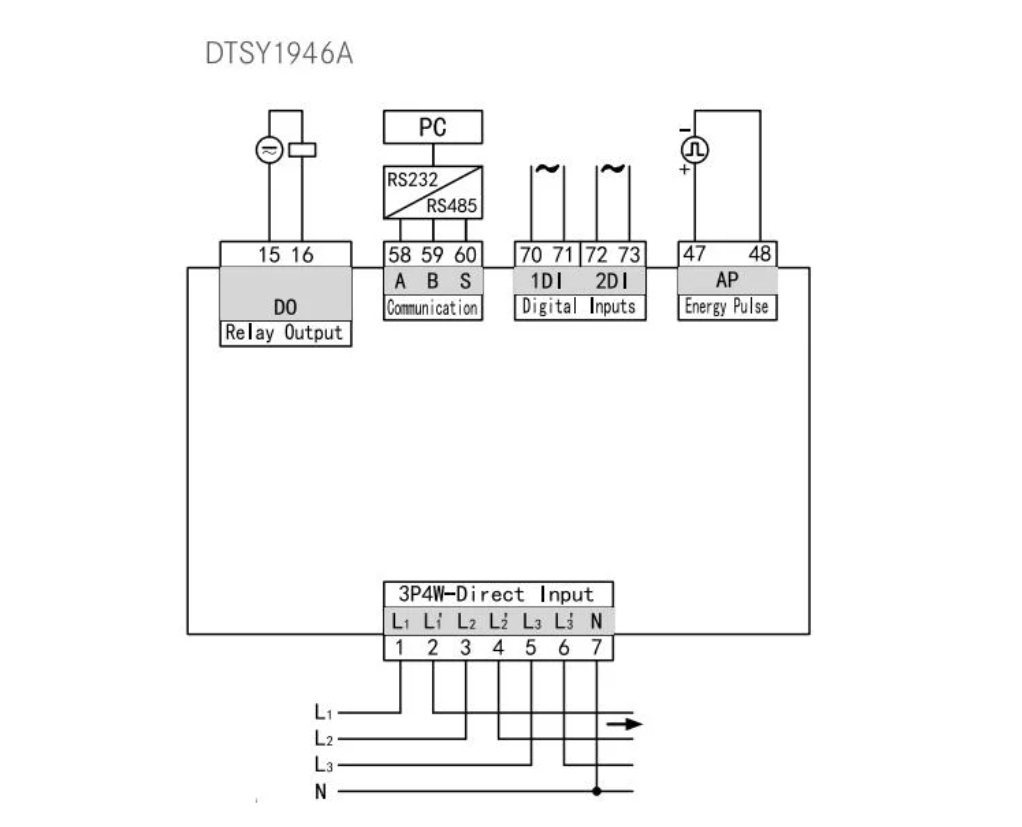

Typical Wiring
