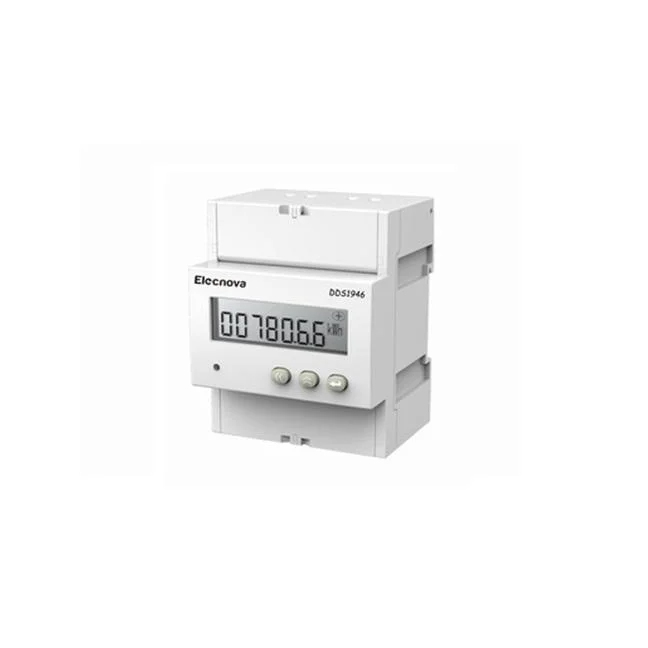

Dds1946 LCD Digital Display Single 1 Phase Kwh Meter DIN Rail Energy Meter

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Dimensions: 90*72*63.5mm
Accuracy Class: 0.5/1s
Phase: Single Phase and There Phase
Display Type: Digital Only
Brand Name: Elecnova

Specifications

Basic Info.

Model NO.

DDS1946

Power Meter Connection

Terminal

Measured Signal

Pulse Peak

Type

Energy Meter

Certification

ISO, CE

Customized

Accuracy Class

0.5/1s

Measuring Energy Range

0-99999

Output Voltage

230V

Normal Voltage

220V

Voltage Range

0.8un~1.2un

Relative Humidity

Max 93%

Frequency

45-65Hz

Direct Current

5(100)a

Communication

RS-485/Modbus/2-Wire

Specification

90*72*63.5mm

Trademark

ELECNOVA

Origin

China

HS Code

9030899090

Production Capacity

20000PCS/Per Month

Product Description

Product Name: DDS1946 LCD digital display single 1 phase kwh meter DIN rail Energy Meter
DIN-rail type electric energy meters are designed and produced according to user's real electricity consumption situation by adopting advanced energy measurement IC and using digital sampling processing and SMT technologies. They adopt modularity structure with the features such as small volume, convenient installation and reliable working.
Dds1946 LCD Digital Display Single 1 Phase Kwh Meter DIN Rail Energy Meter

Technical Specifications

Product name	DDS1946 LCD digital display single 1 phase kwh meter DIN rail Energy Meter
Wiring	1 phase 2 wire
Voltage	230V
Direct current	5(100)A
Current via CT	1.5(6)A
Accuracy	Voltage, current: 0.5 Class Power, active energy: 1 Class
Energy pulse	One optoelectronic isolation output, Pulse width(80±20%)ms
Communication	Modbus-RTU protocol,baud rate up to 9600bps DL/T 645 protocol,baud rate up to 9600bps

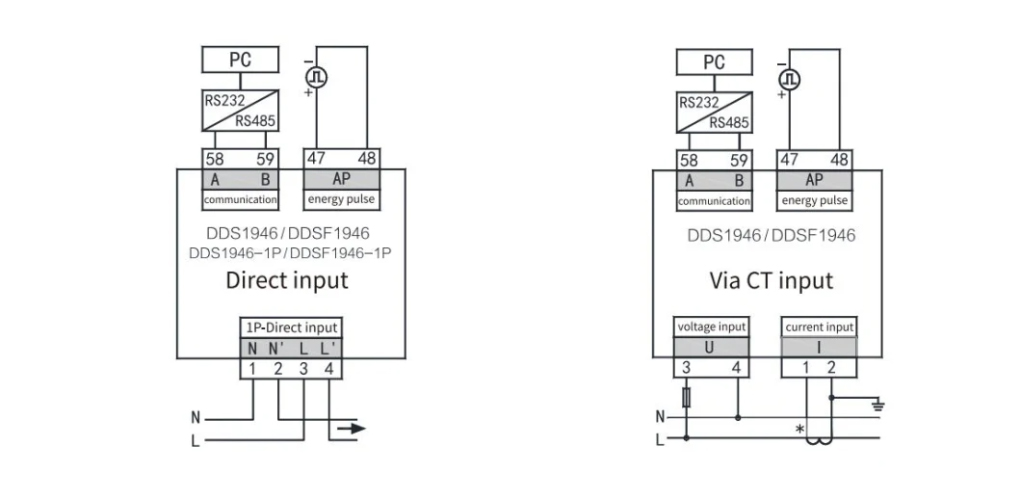

Typical Wiring
Dds1946 LCD Digital Display Single 1 Phase Kwh Meter DIN Rail Energy Meter

Application
Dds1946 LCD Digital Display Single 1 Phase Kwh Meter DIN Rail Energy Meter
