Home >Products Catalog > Din-Rail Energy Meter > Digital Modbus Single Phase Tariff Energy Counter High Accuracy MID Approval DIN Rail Energy Meter

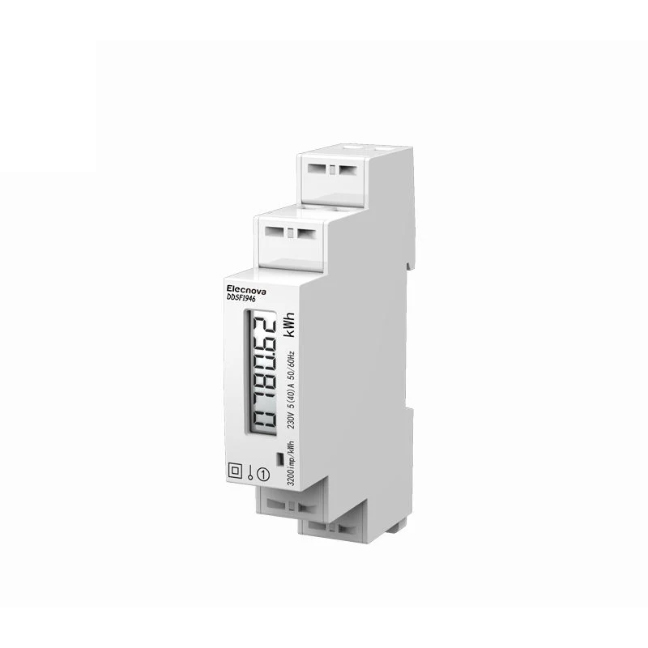

Digital Modbus Single Phase Tariff Energy Counter High Accuracy MID Approval DIN Rail Energy Meter

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

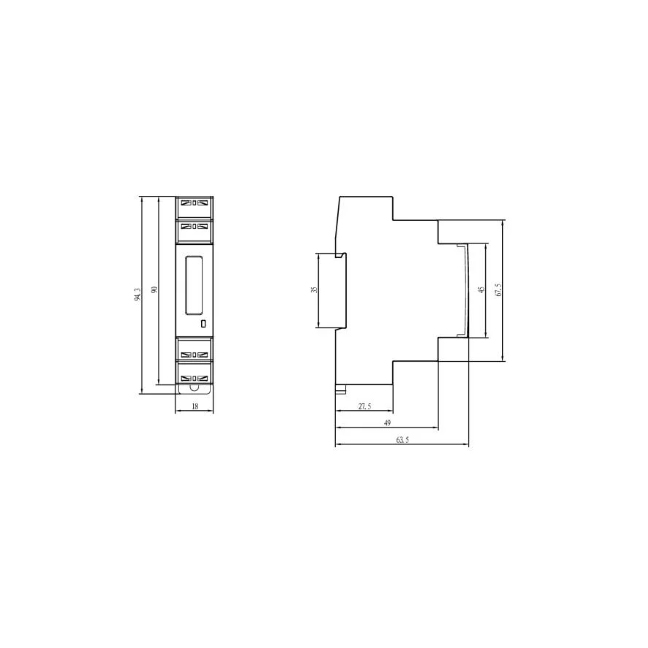

Dimensions: 18*90*63.5mm
Accuracy Class: 1%
Phase: Single Phase
Display Type: Digital Only
Brand Name: Elecnova

Specifications

Basic Info.

Model NO.

DDSF1946-1P

Power Meter Connection

Terminal

Measured Signal

Pulse Peak

Type

Energy Meter

Certification

ISO, CE

Customized

Measuring Energy Range

0-99999

Accuracy Class

Output Voltage

220V

Current

5(40)a

Voltage Range

0.8un~1.2un

Communication

RS-485/Modbus/2-Wire

Specification

18*90*63.5mm

Trademark

ELECNOVA

Origin

China

HS Code

9030899090

Production Capacity

20000PCS/Per Month

Product Description

Product Name: Digital modbus single phase tariff energy counter high accuracy MID approval DIN rail Energy Meter
the DIN rail mounted electric energy meter adopts advanced energy metering chip, which is designed and manufactured by digital sampling processing technology and SMT process. the series of electric energy meters adopts a modular structure, which is convenient to install and reliable in operation.
Digital Modbus Single Phase Tariff Energy Counter High Accuracy MID Approval DIN Rail Energy Meter

Technical Specifications

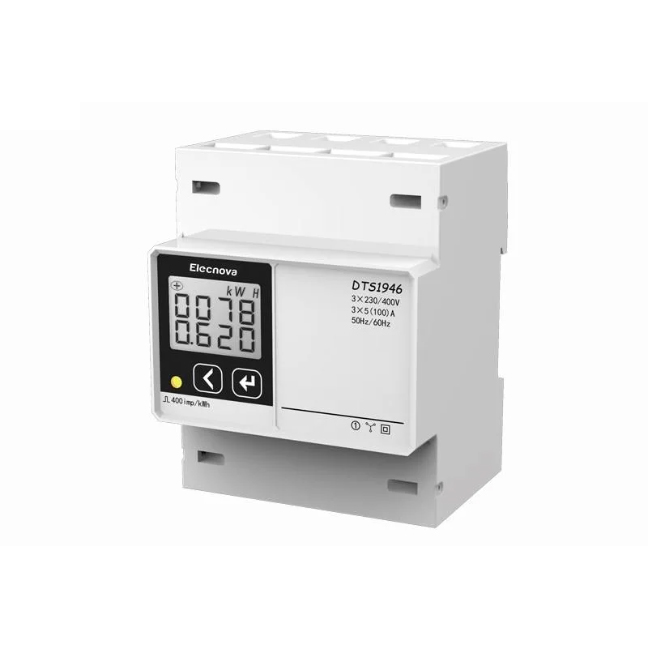

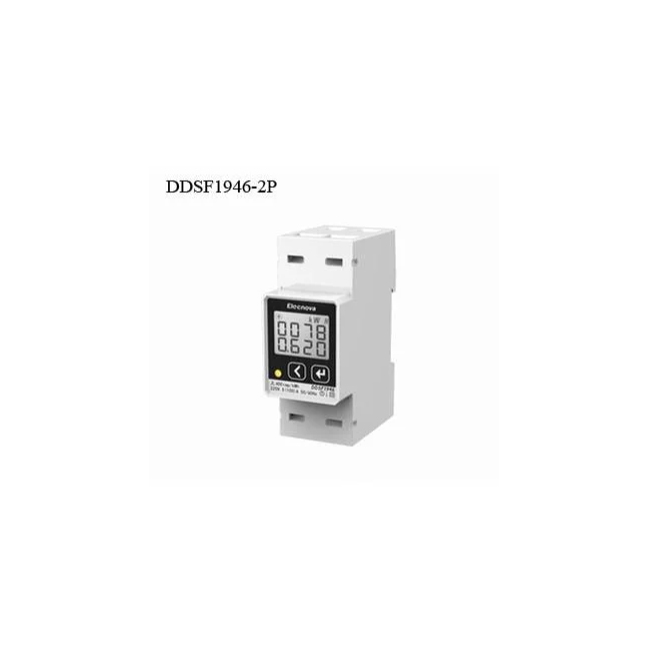

		DDS1946-1P DDSF1946-1P	DDS1946-2P DDSF1946-2P	DDS1946 DDSF1946	DSS1946 DSSF1946	DTS1946 DTSF1946
Normal Voltage		230V	230V	230V	3*400V	3*230/400V
Current	Direct input	5(40)A	5(100)A	5(100)A	5(100)A	5(100)A
	Via CT input	-	-	1.5(6)A	1.5(6)A	1.5(6)A
Accuracy		Class 1(Optional:Class 0.5S)
Frequency		45Hz~65Hz
Voltage Range		0.8Un~1.2Un
Start Current	Direct input	0.004Ib
	Via CT input	0.002In
Consumption		<2VA
Energy Pulse		1 output, pulse width (80±20%) ms
RTC Error		≤0.5s/day
Communication		RS485, Modbus-RTU, 2-wire, up to 9600bps
IP Degree		Front: IP51
Operating Temperature		-10C ~ 55C
Storage Temperature		-25C ~ 70C
Relative Humidity		≤93%
Certificate		CE ISO9001,MID

Typical Wiring
Digital Modbus Single Phase Tariff Energy Counter High Accuracy MID Approval DIN Rail Energy Meter

Application
Digital Modbus Single Phase Tariff Energy Counter High Accuracy MID Approval DIN Rail Energy Meter
