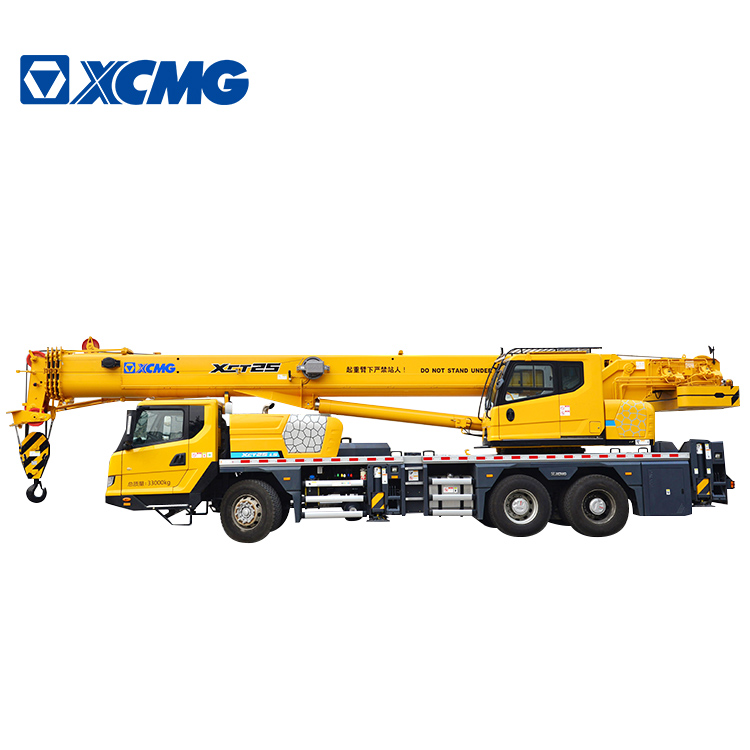

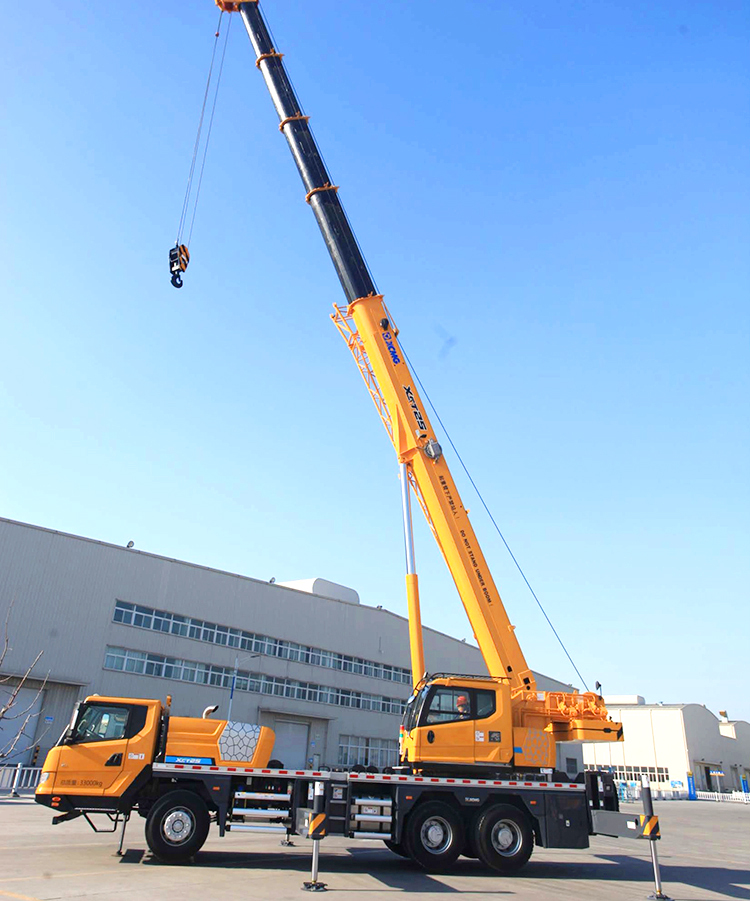

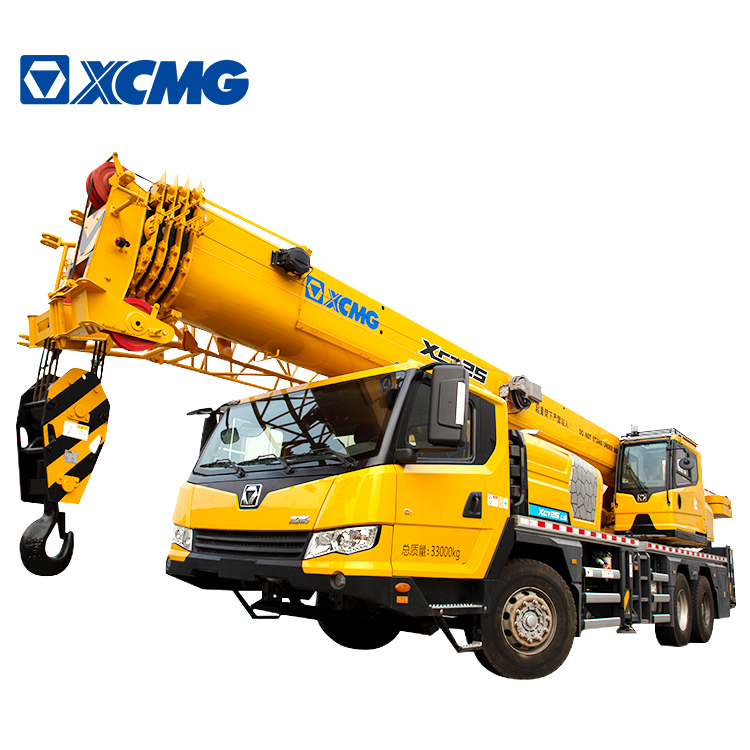

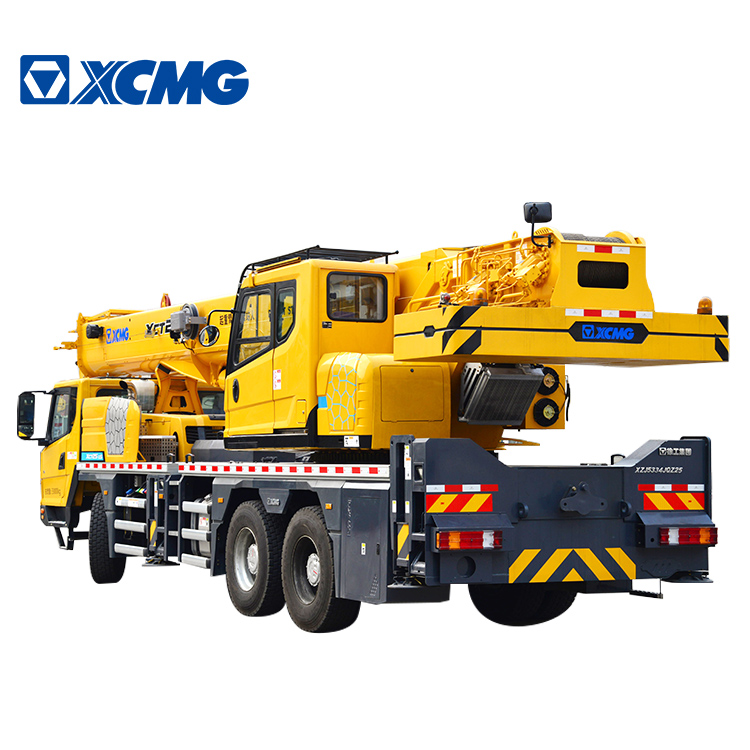

XCMG Factory XCT25L5 China 25 Ton Construction Mobile Hydraulic Truck Crane Price

FOB Price:	10000.00 - 100000.00 USD/Piece
Supply Ability:	10,000 Piece(s) per Year
Shipping:	Any Port in China
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China

Quick Details

Feature: Truck Crane
Brand Name: XCMG
Max. Lifting Load: 25000kg
Rated Loading Capacity: 25000kg
Year: New
Make: XCMG
After-sales Service Provided: Overseas service center available
Warranty: 1 Year
Certification: CE, ISO, Gost, EPA(USA)CCC
Model Number: XCT25L5
Span: 7900mm
Max. Lifting Height: 50.2m
Rated Lifting Moment: 900kN.m
Application: Construction machinery
Condition: New
Machinery Test Report: Provided
Marketing Type: Hot Product 2023
Application: Construction
Video outgoing-inspection: Provided
Weight (KG): 33000 kg
Hydraulic Cylinder Brand: Top brand
Engine Brand: Top brand
Hydraulic Valve Brand: Top brand

Specifications

XCMG Factory XCT25L5 China 25 Ton Construction Mobile Hydraulic Truck Crane Price

XCMG Factory XCT25L5 China 25 Ton Construction Mobile Hydraulic Truck Crane Price
We can provide you brand NEW & USED machines as well as the SPARE PARTS for XCMG equipment.

XCT25L5 Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.

1.Super lifting performance
* 5-section boom of 42 m with U-type profile is adopted; the max. Lifting load is 25 t; the max. Lifting height is 50.2 m; the max. Working radius is 38.5 m; the performance takes the lead comprehensively.*Innovative single-plate boom head and compact boom tail structure, best overlapping ratio in its class and stronger boom load-bearing capacity.

2.New energy-saving hydraulic system
* the min. Stable slewing speed is 0.1°/s. the min. Stable lifting speed (drum) is 2.5m/min. Precise and safe lifting movements can be realized.

*Dual-pump separate and confluent control technology brings higher compound movement performance in the industry with higher working efficiency.

3.Low-speed large-torque power drive system

Resulting in perfect combination of high power performance and low fuel consumption, i.e.12% reduction in fuel consumption for driving, 15% for operation, and 15% improvement in power performance.

Product parameters

Dimension	Unit	XCT25L5
Overall length	mm	12870
Overall width	mm	2550
Overall height	mm	3470
Total weight in travel	kg	33000
Max. Travel speed	km/h	90
Min. Turning diameter	m	21
Min. Ground clearance	mm	260
Approach angle	°	12
Departure angle	°	14
Max. Grade ability	%	45
Fuel consumption for 100km	L	30
Max. Rated total lifting capacity	t	25
Min. Rated working radius	m	3
Turning radius at turntable tail	m	3.34
Max. Lifting torque	kN.M	1132
Base boom	m	10.2
Max.Main boom	m	41
Max.Main boom+jib	m	50.2

Company Profile

FAQ

1: What kind terms of payment can be accepted?
A: for terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: for the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5: What about the Minimum Order Quantity?
A: the MOQ is 1 pcs.
