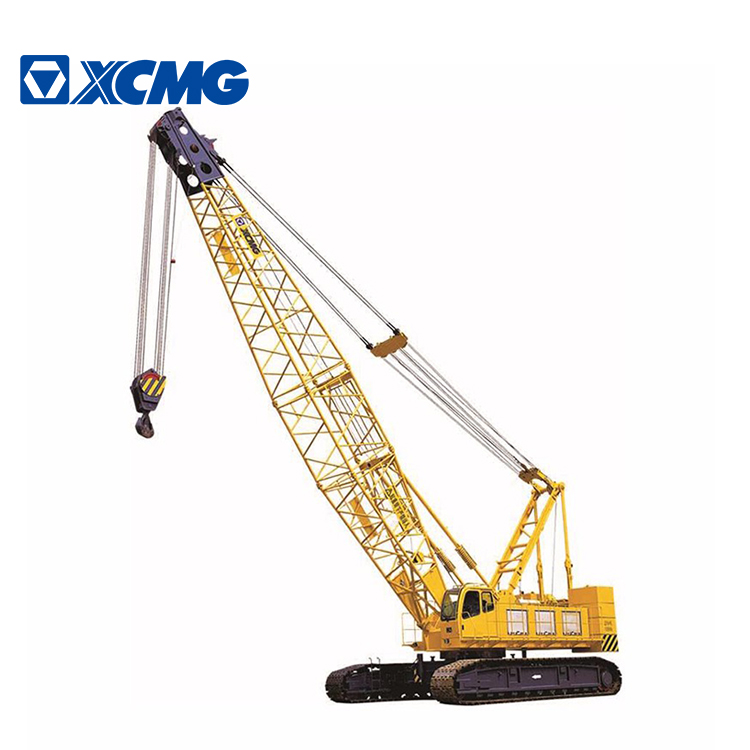

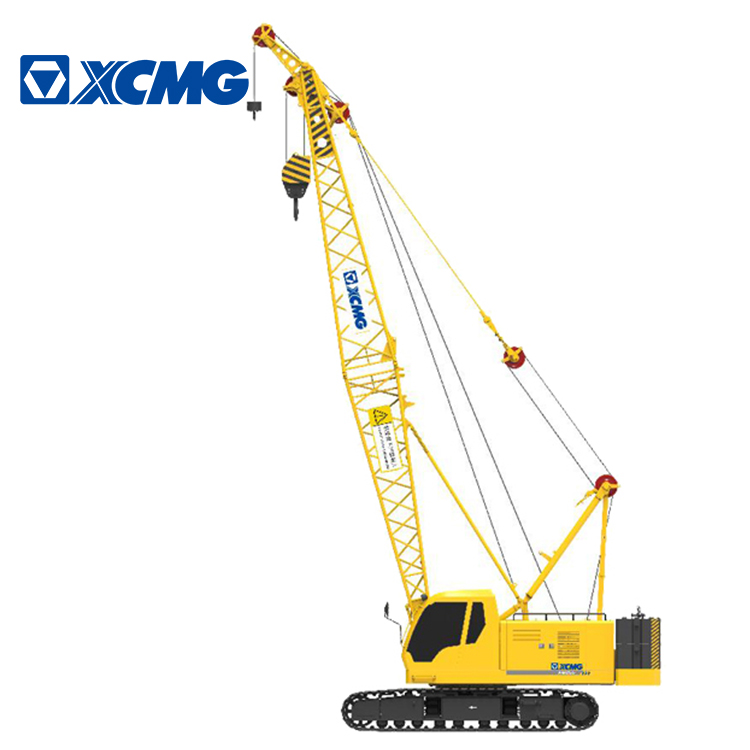

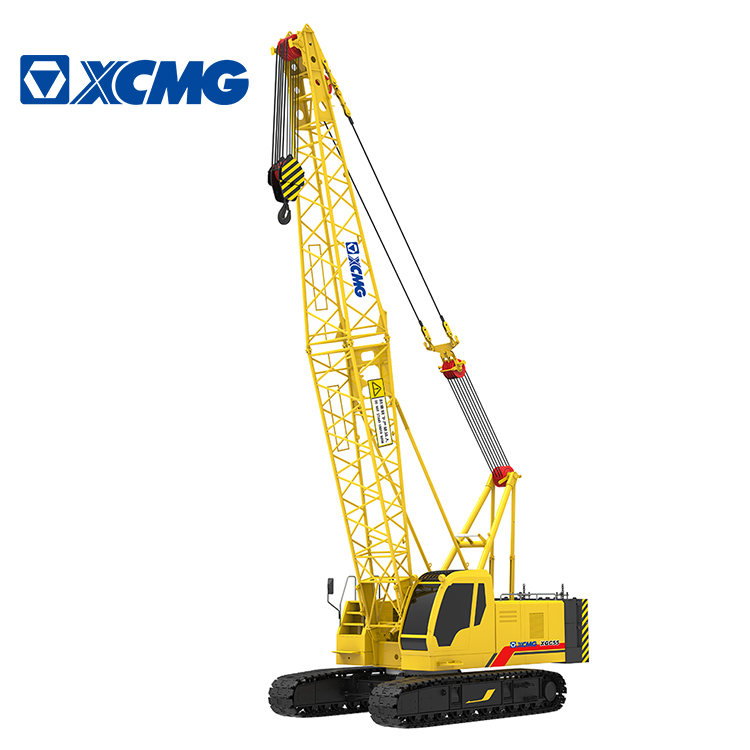

XCMG Manufacturer XGC55 China 55 Ton New Hydraulic Crawler Crane for Sale

FOB Price:	20000.00 - 100000.00 USD/Piece
Supply Ability:	10,000 Piece(s) per Year
Shipping:	Any Port in China
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China

Quick Details

Feature: Other
After-sales Service Provided: Overseas service center available
Certification: ISO9001, CE, RoHS, BV
Brand Name: XCMG
Condition: New
Feature: Crawler Crane
Warranty: 1 Year
Model Number: XGC55
Max. Lifting Load: 55000kg
Rated Lifting Moment: 203500kg
Rated Loading Capacity: 55000kg
Application: Construction machinery
Max. Single Line Speed of Hoist System: 125m/Min
Transport Package: Comply with Export Packaging Requirements
Main Boom Length: 13-52m
Max. Single Line Speed of Main Luffing S: 12040*3450*3360mm
12040*3450*3360mm: 13~52 M
Max. Travel Speed: 1.37/1.22 Km/H
Max. Single Line Speed of Main Luffing: 87m/Min

Specifications

XCMG Manufacturer XGC55 China 55 Ton New Hydraulic Crawler Crane.
XCMG crawler crane XGC55 is designed and developed independently in absorption of foreign advanced technology and combined with China domestic work conditions.
1. Optimized hydraulic system design
* Integrated design to reduce failure points, while reserve open space for assembly/ disassembly and maintenance.
* Use of highly integrated LUDV main valve, with the functions of multi-com- plex operation, control of combined flow, high/low speed selection, to ensure operation efficiency.
* Optional unique independent bypass filtration in the industry, strong magnetic adsorption device, strengthened hydraulic system filtration, and anti-emulsifying ability.
2. Main/ auxiliary hook one-key-switch-over function
One-key-switch is used to easily achieve main/auxiliary hook switch-over, for wider range of applications.
3. Universal and modular design
Common platform products with fixed jib, single top, both-sided counterweight, luffing mechanism, hydraulic pump and main valve block can achieve universal and interchangeable use, greatly reduce purchase, transport and maintenance costs.
Product parameters

Items	Unit	XGC55
Max. Rated lifting load of main boom	(t)	55
Max. Rated lifting load of fixed jib	(t)	11.4
Max. Lifting load moment	(t.M)	203.5
Max. Rated lifting load of boom single pulley	(t)	6
Main boom length	(m)	13~52
Main boom luffing angle	(°)	-3~80
Fixed jib length	(m)	7~16
Max. Size of single unit for transport (LWH)	(m)	12.043.453.36
Installation angle of fixed jib	(°)	10,30
Max. Single line speed of hoist system	(m/min)	125
Max. Single line speed of main luffing system	(m/min)	87/78
Max. Slewing speed	(r/min)	2.45/2.2
Max. Travel speed	(km/h)	1.37/1.22
Gradeability	(%)	30
Average ground pressure	(MPa)	0.06
Model	-	SC7H210.1G3/QSB6.7
Engine power	(kW)	155/153
Emission	-	National III stage/Europe III
Crane overall mass	(t)	46.3(Main hook,13m boom)
Max. Weight of single unit for transport	(t)	28.6

Company Profile

FAQ

1: What kind terms of payment can be accepted?
A: for terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: for the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5: What about the Minimum Order Quantity?
A: the MOQ is 1 pcs.
