Dongfeng 153 Sewage Pump Truck

FOB Price:	25,000.00 - 35,000.00 USD/Set
Supply Ability:	2,000 Set/Sets per Year
Shipping:	Any port in China
Payment Terms:	L/C, T/T, Bank transfer

In Stock

Inquiry Now

Product Details

Export Markets:	South America, Southeast Asia, Africa, Mid East, Eastern Asia
Place of Origin:	Hubei in China
Packaging Details:	nude, waxed, etc.

Specifications

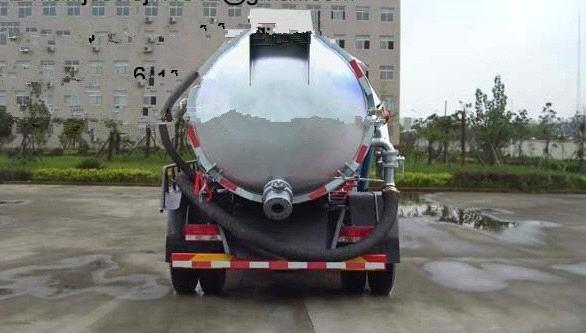

Dongfeng 153 sewage pump Truck

This Self Priming Sewage Pump adopts by Dongfeng 153 chassis, for pumping manure, sewage sludge and slurry mixed with debris suspended mud residue, a small brick, stone, and so on. High-pressure.

Truck No.	JDF5160GXW
Overall Dimension(mm)	7370×2490×3300	Total Weight(Kg)	15990
Cargo Dimension(mm)	××	Payload Weight(Kg)	6980
Approach/Departure Angle(°)	34/14	Kerb Weight(Kg)	8815
Front/Rear Suspension(mm)	1250/2170	Max. Speed(km/h)	85
VIN No.	LGDXWA1L××××××××× LGDXWB1L×××××××××
Chassis Model	EQ1162GJAC
Engine	Engine Producer	Displacement	Power
YC4E160-33 YC6J180-33 YC6J190-33 ISDe160 30 ISDe180 30 B170 33 B170 30 B190 30 B190 33	Guangxi Yuchai Motor Co., Ltd. Guangxi Yuchai Motor Co., Ltd. Guangxi Yuchai Motor Co., Ltd. Dongfeng Cummins Motor Co., Ltd. Dongfeng Cummins Motor Co., Ltd. Dongfeng Cummins Motor Co., Ltd. Dongfeng Cummins Motor Co., Ltd. Dongfeng Cummins Motor Co., Ltd. Dongfeng Cummins Motor Co., Ltd.	4257 6494 6494 4500 4500 5900 5900 5900 5900	118 132 140 118 132 125 125 140 140
Fuel Type	Diesel	Emission	GB3847-2005,GB17691-2005
Axle	2	Number of Tires	6
Wheelbase	3950	Specification of Tire	9.00-20,10.00-20
Axle Loading	5995/9995	Front Tread	1910,1940
Leaf of Spring	9/11+8	Rear Tread	1800,1860
Others	1,Volume:9-12m3 2, Dedicated on part by taking power, transmission shaft, a vacuum suction pump sewage, water separator, multi-valve, boom, the manure tank, the release valve manure smoking gun, boxes of water, manure, as the window, vacuum pressure gauge, such as the composition of the pipeline system. 3, Widely applied to large, medium and small cities and towns sanitation, municipal, agriculture, chemical industry, factories and mines, the use of residential property.
