>Products Catalog > LNF Power Meter > 96*48mm RS485 Communication 1 Channel Analog Output DC Current LCD Display Single-Phase Panel Mounted Ampere Meter

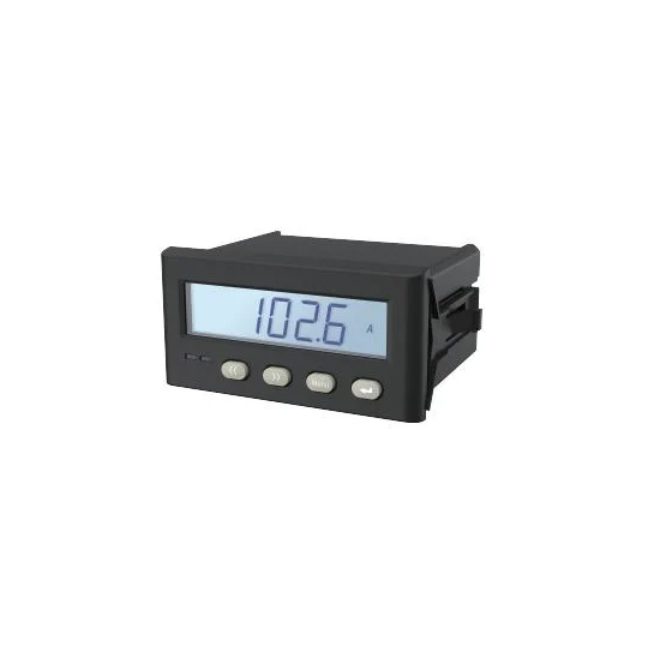

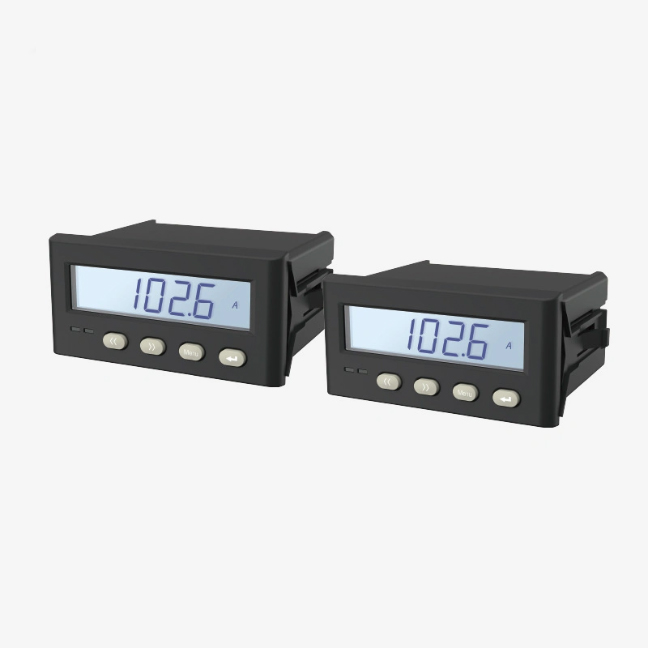

96*48mm RS485 Communication 1 Channel Analog Output DC Current LCD Display Single-Phase Panel Mounted Ampere Meter
Quick Details
- Dimensions: 96*48mm
- Supply Voltage: 80~270V
- Measuring Range: DC 60V,100V,400V,1000V
- Display Type: Digital Only
- Brand Name: Elecnova
Specifications
Basic Info.
Model NO.
LNF55IY-CM
Display Ammeter Type
Single-phase Digital
Customized
Customized
Display Method
LCD
Data Refresh Frequency
1s
Degree of Protection
IP54
Frequency
45-65Hz
Real-Time Measurement
I/U/P/Q/S/F/PF
Harmonic Content
2-15 Times
Communication
RS485
Supply Voltage
80~270V
Rated Voltage
AC 100V/380V
Specification

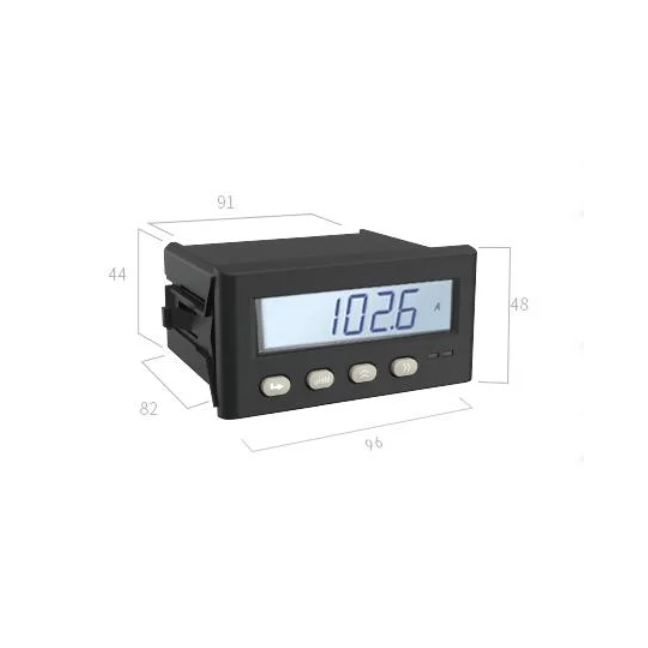

96*48mm
Trademark
LINFEE
Origin
China
HS Code
8543109990
Production Capacity
30000PCS/Per Month
Product Description
Product Name: 96*48mm RS485 communication 1 channel analog output DC current LCD display Single-phase Panel mounted Ampere Meter
this series of intelligent electrical measuring instruments is suitable for voltage or current parameter measurement of power distribution system. the series of instruments have programmable transformation ratio, optional communication interface, beautiful appearance and compact structure.
Technical Specifications
| Accuracy | 0.5S | |
| Input Feature | Voltage rate | DC 60V,100V,400V,1000V |
| Power consumption | <1VA | |
| Current rate | DC 75mV(DC shunt),4V(Hall sensor) | |
| Communication | RS485 Interface | Modbus-RTU protocol, baud rate up to 9600bps |
| Analog output | Current output | DC 4~20mA, DC 0~20mA,Load≤350Ω |
| Auxiliary Power Supply | Working Range | AC/DC 80~270V |
| Energy Consumption | ≤5VA | |
| Environment Condition | Working Temperature | -10~55C |
| Storage Temperature | -25~70C | |
| Relative Humidity | ≤93%RH | |
| Altitude | ≤2000m | |
| Withstand Voltage | Power supply,input and output ≥AC2kv | |
| Protection Level | IP54 |
Application
FAQ
Q: Are you trading company or manufacturer?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: how long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples? Is it free or extra?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
