Product Details

Place of Origin:	Hubei in China

Specifications

Description

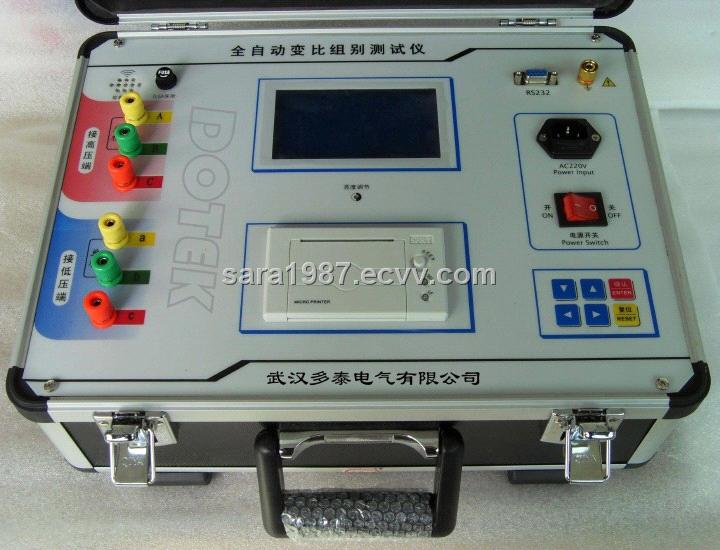

DTBZ-2009 is an enhanced Transformer Turn Ratio Tester. It is capable to test single-phase and three-phase transformers. The testing process is fully automatic and very quick.

Another important function is automatically measuring the vector group of transformers.

Operator enters the test parameters, DTBZ automatically performs the testing process: Power up the test voltage, Balance the test bridge, Take the readings and Display on the LCD screen, then Print the results on built-in printer.

Features

Large LCD screen, Menu operation

Fully automatic testing, no manual balancing

Test single phase and three phase transformers

Auto measure transformer vector group

Auto switch measuring range

Auto calculate ratio error

Auto save the test data

Recall and print last 30 records

Truly portable, Weight less than 10kg

Safety Features

Auto cutoff test voltage after testing

Fuse protection for test-leads short-circuit

Fuse and Reset protection for reverse connection of HV side and LV side

Sound an alarm when protection act

Specifications (English version available)

Power Supply: AC 220V± 10%, 50Hz± 1

Turn Ratio Range: 1~9999.9

Vector Group Coding: Ii6/12, Dd / Dy / Yd / Yy 1~12

Accuracy: 0.2 % when 1~999.9, 0.5 % when 1000~9999.9

Test Voltage: AC 190V

Ambient Temperature: 0~40º C

Ambient Humidity: RH < 85%

Dimension: 40 x 35 x 20cm, Accessory bag: 30 x 25 x 10cm

Weight: 10 kg, Accessory bag: 2kg
