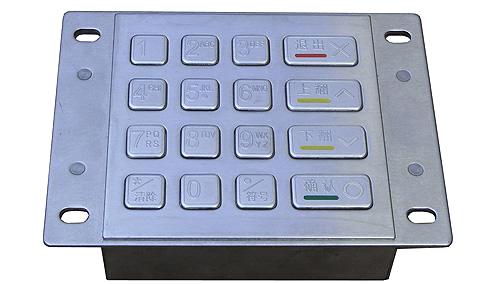

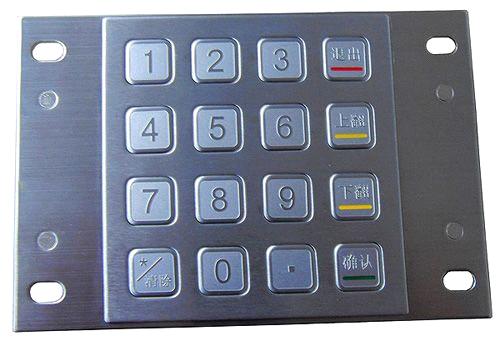

Backlight Industrial Metal Numeric Keypad (X-KN16B)
| Supply Ability: | 2,000 Set/Sets per Month |
|---|---|
| Shipping: | 1-2 weeks after payment is received. |
| Payment Terms: | L/C, T/T, Western Union |
| Place of Origin: | Guangdong in China |
|---|---|
| Packaging Details: | Bulk packing, each unit with label marked CE, FCC and RoHS to a box. |
Specifications
Backlight Industrial Metal Numeric Keypad, industrial keypad, public phone kaypad
Metal Keypad Specification:
SERIES NO. : X-KN16B
SERIES NO. : X-KN16B
DESCRIPTION of Numeric Keypad: 16 keys compact format vandal-proof IP65 stainless steel keypad with gold-on-gold key switch technology for accurate data input, with rear panel mounting solution.
MODEL NO. : X-KN161B
DIMENSIONS: 100.0mm x 91.5mm(front panel)
MODEL NO. : X-KN162B
DIMENSIONS: 160.0mm x 102.3mm(front panel)

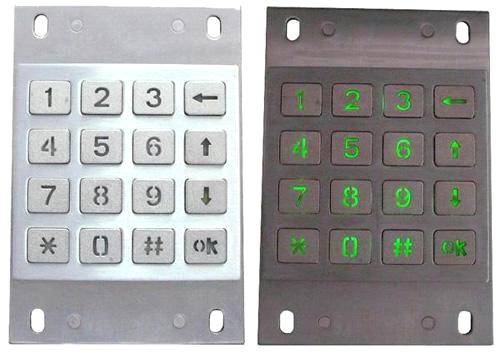

MODEL NO. : X-KN163B (with backlight)
DIMENSIONS: 100.0mm x 91.5mm(front panel)
MAIN FEATURE
1. Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant, operation under hostile environments.
2. Key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off.
3. Waterproof/dirt-proof execution according to degree of protection IP65, waterproof and dirt proof encapsulation with unique membrane.
4. Easily mounting into enclosure or panel, and is provided with PS/2, USB or RS232, connection output cables that plug directly into the host computer for keypad operations.
5. OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac OSX
COMMUNICATION PARAMETER.
1. Standard PC/AT keyboard interface
2. 16 actuator on the keypad: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, ., Exit, P-Up, P-Down, Enter, Clear, 4 x 4 scanning code. Any keys can be re-defined per customers' requirements.
3. 8 functional keys: F5, F10, F11, F12 and up/down/right/left arrows (optional)
MECHANICAL DATA
1. Key: 16 keys, SUS304 brushed stainless steel
2. Key top style: Plain/Non-Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available
3. Key travel: 0.45mm
4. Front Plate: Super quality brushed stainless steel
5. Actuator/keys materials: stainless steel
6. Dimensions: 100.0mm x 91.4mm (front panel)(X-KN161B), 160.0mm x 102.3mm(front panel)(X-KN162B), 100.0mm x 91.4mm (front panel)(X-KN163B),
7. G. W.: 1.0KGs (X-KN161B), 1.2KGs (X-KN162B), 1.0KGs (X-KN163B)
ELECTRICAL DATA
1. Power supply voltage: 5V DC.
2. Power Consumption: Under 30mA for operation
3. Communication interface: PS2, USB or RS232 are all available.
ENVIRONMENTAL ADAPTABILITY
1. Operating temperature: -20C to +60C.
2. Storage temperature: -30C to +70C.
3. Operating RH: 30-90%.
4. Atmospheric pressure: 60-106Kpa.
RELIABILITY
1. RoHS Compliant, CE and FCC
2. Protection Level: IP65(front panel dynamic)
3. Vandal resistant IK10
4. MTBF > 50000H.
5. MTTR < 30min.
