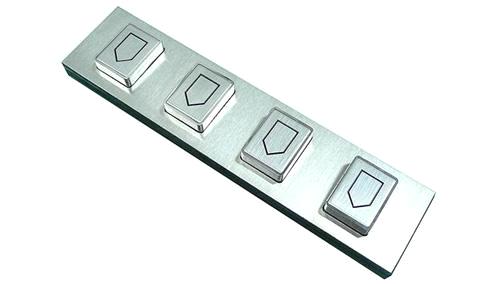

Vandal Proof Stainless Steel Function Keypad
| Supply Ability: | 2,000 Set/Sets per Month |
|---|---|
| Shipping: | 1-2 weeks after payment is received. |
| Payment Terms: | L/C, T/T, Paypal, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Bulk packing, each unit with label marked CE, FCC and RoHS to a box. |
Specifications
Vandal Proof Stainless Steel Function Keypad, metal keypad, ATM function keys
SERIES NO. : X-FP4F
SERIES NO. : X-FP4F
DESCRIPTION of Metal Numeric Keypad: 4 keys vandal proof IP65 stainless steel function keypad with carbon-on-gold key switch technology for accurate and fasting data input, with front panel mounting solution.
MODEL NO. : X-FP41F
DIMENSIONS: 150.0mm x 35.0mm (front panel)
MAIN FEATURE
1. 5.5mm protuberant rectangular keys.
2. Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant, operation under hostile environments.
3. Internet friendly key layout, key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off. Or protrusive engraving available
4. With firm tactile key feel, full long carbon-on-gold key switches, with unique double over-travel protection.
5. Waterproof/dirt-proof execution according to degree of protection IP65, waterproof and dirt proof.
6. Easily mounting into enclosure or panel.
MECHANICAL DATA
1. Switching material: Carbon-on-Gold
2. Actuation Force: 1.50N +/-0.1N (pressure point)
3. Key Travel: 5.5mm
4. Lettering: laser engraving, or raised letters.
5. Front panel: brushed stainless steel
6. Actuator/keys materials: stainless steel
7. G. W. 0.5KGs(X-FP41F)
ELECTRICAL DATA
1. Power supply voltage: 5.0V DC.
2. Power Consumption: Under 150.0mW for operation, under 50.0mW for non-operation
3. Electrical lifetime: > 5 years
4. EMC: EN55022(B)
ENVIRONMENTAL ADAPTABILITY
1. Operating temperature: -20C to +60C
2. Storage temperature: -30C to +70C
3. Operating RH: 3090%
4. Atmospheric pressure: 60106Kpa.
RELIABILITY
1. RoHS Compliant, CE and FCC
2. Protection Level: IP65(front panel)
3. Vandal resistant IK09
4. Key Lifespan > 10 million actuations
5. MTBF > 50000H
6. MTTR < 30min
