Kiosk Function Keys (X-FN4F)

Supply Ability:	2,000 Set/Sets per Month
Shipping:	1-2 weeks after payment is received.
Payment Terms:	L/C, T/T, Paypal, Western Union

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Bulk packing, each unit with label marked CE, FCC and RoHS to a box.

Specifications

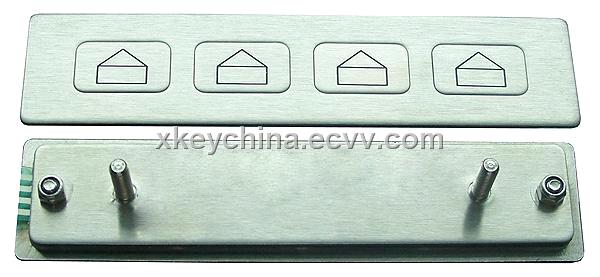

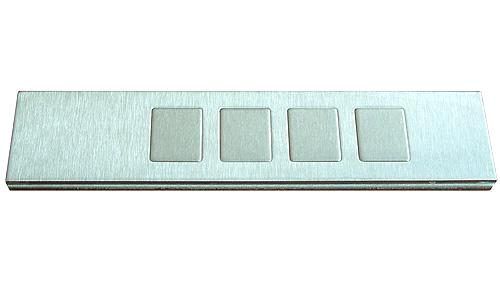

Kiosk Function Keys (X-FN4F)

SERIES NO.: X-FN4F

DESCRIPTION OF Metal Keypad: 4 keys vandal proof IP65 function keypad in super quality stainless steel, with gold-on-gold key switch technology.

MODEL NO.: X-FN41F

DIMENSIONS: 116.0mm x 27.0mm (Front Panel)

MODEL NO.: X-FN42F

DIMENSIONS: 175.0mm x 40.0mm (Front Panel)

MAIN FEATURE

1. Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant, operation under hostile environments.

2. key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off. Or protrusive engraving available

3. With firm tactile key feel, short travel gold-on-gold key switches, with unique double over-travel protection.

4. Waterproof/dirt-proof execution according to degree of protection IP65, waterproof and dirt proof encapsulation with unique membrane.

5. Easily mounting into enclosure or panel.

MECHANICAL DATA

1. Switching Material: Gold-on-Gold

2. Key Travel: 0.45mm

3. Lettering: laser engraving, or raised letters.

4. Front Panel: brushed stainless steel

5. Actuator/Keys Materials: stainless steel

6. G.W. 0.25KGs (X-FN41F), 0.45KGs (X-FN42F)

ELECTRICAL DATA

1. Power Supply Voltage: 5.0V DC.
