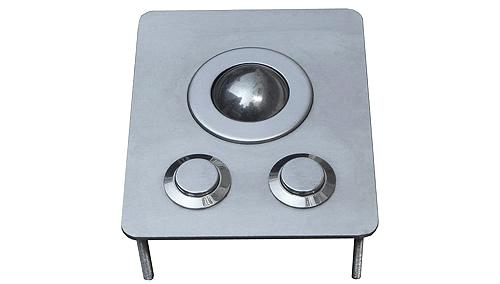

Vandalproof Industrial Metal Trackball (X-BP2F-R)
| Supply Ability: | 2,000 Set/Sets per Month |
|---|---|
| Shipping: | 1-2 weeks after payment is received. |
| Payment Terms: | L/C, T/T, Paypal, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Bulk packing, each unit with label marked CE, FCC and RoHS to a box. |
Specifications
Vandalproof Industrial Metal Trackball, kiosk trackball, industrial trackball
SERIES NO.: X-BP2F-R
SERIES NO.: X-BP2F-R
DESCRIPTION: 25mm(1.0) or 38.0mm (1.5') vandal proof IP65 stainless steel mechanical trackball with high resolution, two mouse keys, with front panel mounting solution.
MODEL NO.: X-BP21F-R
DIMENSIONS: 67.0mm x 82.0mm (front panel)
MAIN FEATURE
1. Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
2. All Metal Mechanicals provide for rugged, smooth, long lasting operation.
3. Mechanical technology, IP65 sealing.
4. Front panel mounting.
5. Stainless steel ring protecting the trackball sealing.
6. Stainless steel trackball or industrial black phenolic ball is optional.
7. Its compact dimensions make these trackball units ideally suited for all harsh industrial applications, kiosk consoles, navigation controls, etc where minimal mounting space is required while maintaining excellent vandalproof and good sealing characteristics.
TECHNICAL SPECIFICATION
|
ITEM
|
SPECIFICATION
|
|
|
Mechanical
|
Key
|
2 keys, quality brushed stainless steel, two round stainless steel sealed switches
|
|
Front Plate
|
Quality brushed stainless steel or Anti-scratch and durable electroplated titanium black stainless steel panel.
|
|
|
Key Travel
|
1.3.0mm
|
|
|
Ball diameter
|
25mm(1.0)
|
|
|
Key switch lifespan
|
more than 10 Mio actuations
|
|
|
Track ball lifespan
|
> 10 Mio revolutions
|
|
|
Back Metal Cover
|
Rear side integrated electronics protected by a metal cover
|
|
|
Actuation Force
|
4N
|
|
|
Dimension
|
||
|
67.0mm x 82.0mm
|
||
|
Interface
|
PS2, USB are available, Y type cable with ports of PS2 and USB
|
|
|
Electrical
|
Power supply
|
5V DC+ 10%, keyboard interface
|
|
Protection level
|
IP65 (front panel), NEMA3
|
|
|
EMC Standard
|
EN55022(B)
|
|
|
Power consuming
|
1.0W(dynamic)
|
|
|
0.2W(static)
|
||
|
Contact Material
|
Carbon/Gold
|
|
|
Environmental
|
Operating temperature
|
-20C-+ 60C
|
|
Storage temperature
|
- 30C-+ 70C
|
|
|
Operating RH
|
30-90%
|
|
|
Atmospheric pressure
|
60-106Kpa.
|
|
|
Reliable
|
Certificates
|
RoHS compliant, CE and FCC certified. IP65 front panel.
|
|
MTBF
|
>50000h
|
|
|
MTTR
|
< 30min
|
|
|
OS
|
OS is under DOS/Windows95/98/NT/ME/2000/XP/2003/Vista, Linux, Unix, Mac OS9 / OSX
|
|
|
Packing Details
|
Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.
|
|
