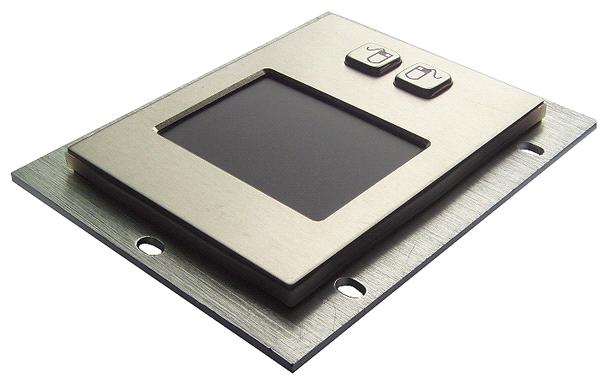

IP65 Vandalproof Industrial Touchpad (X-PP2B)

Supply Ability:	2,000 Set/Sets per Month
Shipping:	1-2 weeks after payment is received.
Payment Terms:	L/C, T/T, Paypal, Western Union

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Bulk packing, each unit with label marked CE, FCC and RoHS to a box.

Specifications

IP65 Vandalproof Industrial Touchpad, payphone touch pad, medical touchpad

SERIES NO.: X-PP2B

DESCRIPTION of Industrial Touchpad: Stainless steel frame, ergonomic quality ruggedized touchpad with rear panel mounting.

MODEL NO.: X-PP21B

DIMENSIONS: 83.0mm x 110.0mm (front panel)

TECHNICAL SPECIFICATION

ITEM		SPECIFICATION
Mechanical	Front Plate	Quality brushed stainless steel
	Touchpad thickness	1.3 mm PCB thickness inclusive of mylar layer
	Validated touch width	46.50mm (max)
	Validated touch length	62.50mm (max)
	Mounting Rack	Aluminum alloy
	Back Metal Cover	Rear side integrated electronics protected by a metal cover
	Touchpad lifespan	> 10 Mio times
	Dimensions	Touchpad: 65.0mm x 49.0mm; Front Mounting Panel: 83.0mm x 110.0mm (front panel), Rear Mounting Panel: 107.0mm x 134.0mm
Interface	PS2 and USB both available
Electrical	Power supply		5V DC+ 10%,
	Work current		4.0 mA (normal)
	X/Y position sensing resolution:		1000 points/inch (40 points/mm)
	X/Y position reporting:		Relative
	Tracking speed:		Maximum 1,016 m/sec
	Protection level:		IP65 (front panel)
	Static Release:		15 KV (front panel)
	EMC Standard:		EN55022(B)
Environmental	Operating temperature:		-20C to +60C
	Storage temperature:		- 40C to + 70C
	Operating RH:		10%-95%
	Atmospheric pressure:		60-106Kpa
Reliability	MTBF		>50000h
	MTTR		< 30min
	Touchpad Lifespan		>10 million actuations
OS	OS is under DOS/Windows95/98/NT/ME/2000/XP/2003/Vista, Linux, Unix, Mac OS9 / OSX
Packing Details	Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.
