>Products Catalog > INDUSTRIAL POINTING DEVICES > Vandalproof Industrial Stainless Steel Trackball (X-BP2B)

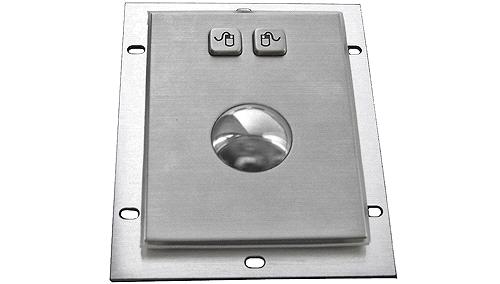

Vandalproof Industrial Stainless Steel Trackball (X-BP2B)
| Supply Ability: | 2,000 Set/Sets per Month |
|---|---|
| Shipping: | 1-2 weeks after payment is received. |
| Payment Terms: | L/C, T/T, Paypal, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Bulk packing, each unit with label marked CE, FCC and RoHS to a box. |
Specifications
Vandalproof Industrial Stainless Steel Trackball (X-BP2B)
SERIES NO.: X-BP2B
SERIES NO.: X-BP2B
DESCRIPTION of Industrial Trackball: 38.0mm (1.5') vandal proof IP65 stainless steel trackball with high resolution, with rear panel mounting solution.
MODEL NO.: X-BP21B
DIMENSIONS: 83.0mm x 110.0mm (front panel)
MAIN FEATURE
1. Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
2. All Metal Mechanicals provide for rugged, smooth, long lasting operation.
3. Available 38mm diameter Stainless steel for smooth, durable operation and precise cursor positioning.
4. Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.

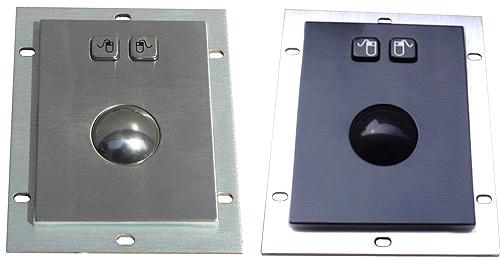

5. Anti-scratch and durable electroplated titanium black panel and industrial black phenolic ball are optional.
6. Mechanical trackball module with 400 DPI, reliable positioning data. Optical trackball module with 800DPI are available.
TECHNICAL SPECIFICATION
|
ITEM
|
SPECIFICATION
|
|
|
Mechanical
|
Key
|
2 keys, quality brushed stainless steel or with electroplated titanium black
|
|
Front Plate
|
Quality brushed stainless steel or Anti-scratch and durable black electroplated titanium on stainless steel panel.
|
|
|
Key Travel
|
2.0mm
|
|
|
Ball diameter
|
38.1mm/1.50' (19mm, 25mm, 36mm 40mm also available soon)
|
|
|
Key switch lifespan
|
more than 10 Mio actuations
|
|
|
Track ball lifespan
|
> 10 Mio revolutions
|
|
|
Back Metal Cover
|
Rear side integrated electronics protected by a metal cover
|
|
|
Actuation Force
|
0.6 N to 1.2 N
|
|
|
Mounting Rack
|
Aluminum alloy
|
|
|
Dimension
|
Dimensions with 38.0mm track ball, Front plate (W x H): 83.0 x 110.0mm Overall (W x H x D): 107.0 x 134.0 x 35.2mm
|
|
|
Interface
|
PS2, USB are available, Y type cable with ports of PS2 and USB
|
|
|
Electrical
|
Power supply
|
5V DC+ 10%, keyboard interface
|
|
Protection level
|
IP65 (front panel), NEMA3
|
|
|
EMC Standard
|
EN55022(B)
|
|
|
Power consuming
|
1.0W(dynamic)
|
|
|
0.2W(static)
|
||
|
Contact Material
|
Carbon/Gold
|
|
|
Environmental
|
Operating temperature
|
-20C-+ 60C
|
|
Storage temperature
|
- 30C-+ 70C
|
|
|
Operating RH
|
30-90%
|
|
|
Atmospheric pressure
|
60-106Kpa.
|
|
|
Reliable
|
Certificates
|
RoHS compliant, CE and FCC certified. IP65 front panel.
|
|
MTBF
|
>50000h
|
|
|
MTTR
|
< 30min
|
|
|
OS
|
OS is under DOS/Windows95/98/NT/ME/2000/XP/2003/Vista, Linux, Unix, Mac OS9 / OSX
|
|
|
Packing Details
|
Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.
|
|
