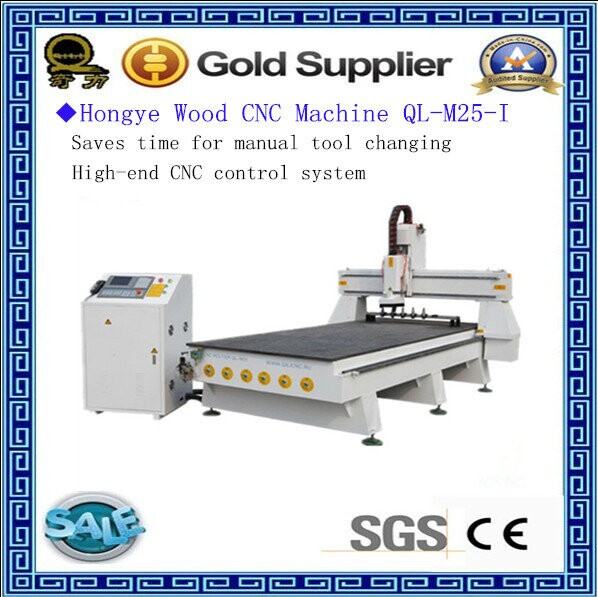

QL-m25 ATC Wood CNC Router

FOB Price:	22,000.00 USD/Set
Supply Ability:	150 Set/Sets per Month
Shipping:	QINGDAO
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Fumigating wood case

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: CE SGS
Weight: 100KG
Dimension(L*W*H): 1300*2500*200MM
Power(W): 4.5KW
Voltage: 380V
Model Number: QL-M25
Brand Name: QL
CNC or Not: CNC
Condition: New

Specifications

QL-M25-I ATC CNC Router

The models of excellence that the price of the High Accuracy ATC CNC Router models, with the M25 lies in the difference between the main tool change, three-axis machines Drive, Drive, etc., are the main components of the machines have to import high client configuration, the double-track bilateral Taiwan-motivation, also a heavy cutting-processing models. 1, sub-keyboard control: simple, convenient and easy to learn the sub-keyboard operation, the user can quickly flexibility to use the equipment,

More independence.

2, Taiwan' s advanced CNC control systems, intelligent processing cross-border protection functions: to prevent the layout design of the processing rate of more than caused by

Machinery collision phenomenon. Intelligent processing speed control: the processing speed can be controlled, truly improve processing efficiency, extended tool life,

Improve the yield.

3, cleaning, adsorption devices: cleaning system in the course of processing wood and broken suction take Mo, to maintain the disguise of the table clean equipment

For the maintenance; absorption system to replace the previous mechanical plate fixed to improve the processing time for handling outside the plate.

4, the paper pretreated advanced features to help users promptly corrected the mistakes in processing documents, and to good-compatible domestic and foreign multi -

Kind of software (such as Mastercam, Typ3, UG, Artcam, Caxa, etc. ) generated by the processing code. Advanced three-dimensional curves prediction algorithm, the presentation of

A smooth line to ensure that the curve of speed and accuracy.

5, windows-based platform for the NC embedded systems, upgrading of unlimited expansion. Synchronization of anti-jamming software and hardware design, to ensure that

System time reliable operation. A breakpoint, continued carving off function, back to square with automatic correction features, effectively guaranteed in a long time

The accuracy of processing work.

6 with two seamless steel structure used welding, rigid strong, not deformed.

NO. Description		Parameter
1	Table size	1600*3100mm
2	X, Y working area	1300*2500mm
3	Z working area	380mm
4	Processing precision	0.02mm
5	Reposition precision	0.05mm
6	Table structure	Vacuum table
7	X, Y,Z structure	Z ballscrew X, Y gearwheel
8	Self-consuming power	2.8KW
9	Max working speed	25000mm/min
10	Spindle power	6.0KW
11	Working voltage	AC380V/50Hz
12	Spindle rotating speed	0-24000rpm/min
13	Drive Motor	Japan servo motor
14	Operation system	Taiwan LNC control system
15	Net weight	2000kg
16	Gross weight	2300kg
