Wood Working CNC Machine

FOB Price:	5,000.00 - 6,999.00 USD/Set
Supply Ability:	280 Set/Sets per Month
Shipping:	By Sea
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Free-fumigation Plywood

Specifications

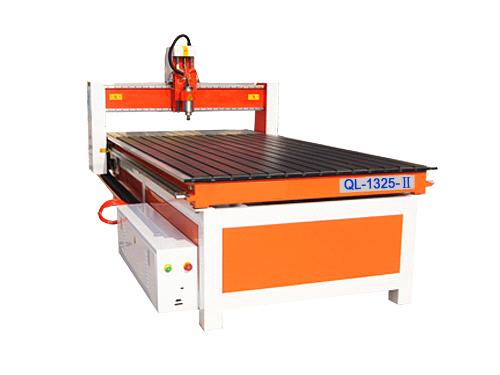

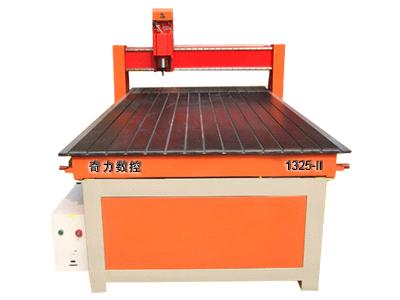

Economic CNC Router (QL-1325-II)

QL-1325-II Carving machinery

Details:

1, imported straight square Guides, double-row ball slider 4, the loading capacity, smooth operation, high accuracy and long life. Import high precision ball screw, knife precision.
2, computer completely divorced from remote operation of USB interface DSP operating system, grip-type operation, operating more simple, more human design, unique intelligent budget rules, and give full play to electrical potential, high-speed processing, Qu Linear Synchronous, perfect curve, not computer memory and achieve cutting from spindle automatic suspension.
3, software compatible with type3/Artcam/Castmate/Wentai, other CAD/CAM design software.

4, high-speed drive stepper motor and drive, a double-Y-axis motor drive, high-speed operation up to 35m/min empty row over speed with cutting vigorously carved spindle speed can improve more.

The main application field of industry:

1, Woodworking: Three-dimensional wave plate processing, cupboard doors, wooden doors, wooden doors process, screens, process window processing, video game cabinets and panels, computer table and plate Auxiliary furniture products processing.
2, advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, a variety of materials advertising the production of decorative products.
3, die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4, other industries: A variety of large-scale relief sculpture, video carving, widely used in process industries gifts.

Mechanical Capacity:

1. X. Y working area: 1300*2500mm
2. Z working area: 200mm
3. Table: 1480*3000mm
4. The largest operating speed: > 20m/min
5. Processor DSP/Speeds: 100MHz
6. Interface: USB
7. Command: Gcode*. U00*. Mmg*. Plt
8. Surroundings for software: DSP
9. Power(exclude spindle): 1840W
10. Work voltage: AC 380V/50Hz
11. Spindle power: 3KW
12. Spindle rotating speed: 0-24000rpm/min
13. Work Mode: Stepper
