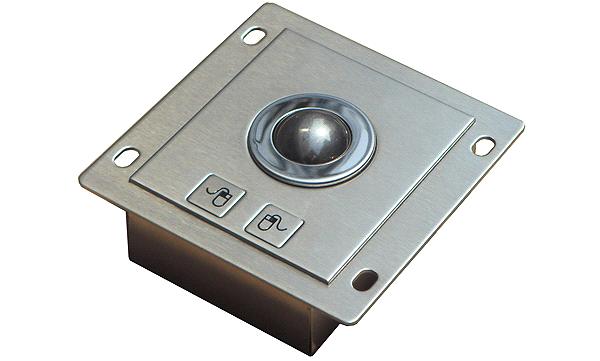

IP65 Vandal Proof Mechanical Trackball (X-BN2B)
| Supply Ability: | 2,000 Set/Sets per Month |
|---|---|
| Shipping: | 1-2 weeks after payment is received. |
| Payment Terms: | L/C, T/T, Paypal, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Bulk packing, each unit with label marked CE, FCC and RoHS to a box. |
Specifications
IP65 vandal proof mechanical trackball (X-BN2B)
SERIES NO. : X-BN2B
SERIES NO. : X-BN2B
DESCRIPTION: 25.4mm (1.0' ) vandal proof IP65 stainless steel trackball with high resolution, with rear panel mounting solution.
MODEL NO. : X-BN21B
DIMENSIONS: 65.0mm x 80.0mm (front panel)
MAIN FEATURE
1. Emulates most popular mice uses existing mouse driver and mouse software Interfaces for most workstations and computers.
2. All Metal Mechanicals provide for rugged, smooth, long lasting operation.
3. Laser Encoders provide fast, high resolution more than 1000DPI, reliable positioning data.
4. Available 25.4mm diameter Stainless steel for smooth, durable operation and precise cursor positioning.
5. Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.
TECHNICAL SPECIFICATION
|
ITEM
|
SPECIFICATION
|
|
|
Mechanical
|
Key
|
2 keys, quality brushed stainless steel
|
|
Key top style
|
Plain/Non-Protuberant rectangular keys
|
|
|
Front Plate
|
Quality brushed stainless steel
|
|
|
Key Travel
|
0.45mm
|
|
|
Ball diameter
|
25.4mm/1.0'
|
|
|
Key switch lifespan
|
more than 10 Mio actuations
|
|
|
Track ball lifespan
|
> 10 Mio revolutions
|
|
|
Back Metal Cover
|
Rear side integrated electronics protected by a metal cover
|
|
|
Actuation Force
|
1.0N to 3.0N
|
|
|
Mounting Rack
|
Aluminum alloy
|
|
|
Dimension
|
Dimensions with 25mm track ball, Front plate (W x H): 65.0 x 80.0mm, Overall (W x H x D): 90.0 x 90.0 x 29.5mm
|
|
|
Interface
|
PS2, USB are available, Y type cable with ports of PS2 and USB
|
|
|
Electrical
|
Power supply
|
5V DC+ 10%, keyboard interface
|
|
Protection level
|
IP65 (front panel), NEMA3
|
|
|
EMC Standard
|
EN55022(B)
|
|
|
Power consuming
|
1.0W(dynamic)
|
|
|
0.2W(static)
|
||
|
Contact Material
|
Gold/Carbon
|
|
|
Environmental
|
Operating temperature
|
-20C-+ 60C
|
|
Storage temperature
|
- 30C-+ 70C
|
|
|
Operating RH
|
30-90%
|
|
|
Atmospheric pressure
|
60-106Kpa.
|
|
|
Reliable
|
Certificates
|
RoHS compliant, CE and FCC certified. IP65 front panel.
|
|
MTBF
|
> 50000h
|
|
|
MTTR
|
< 30min
|
|
|
OS
|
OS is under DOS/Windows95/98/NT/ME/2000/XP/2003/Vista/7, Linux, Unix, Mac OS9 / OSX
|
|
|
Packing Details
|
Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.
|
|
