Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th

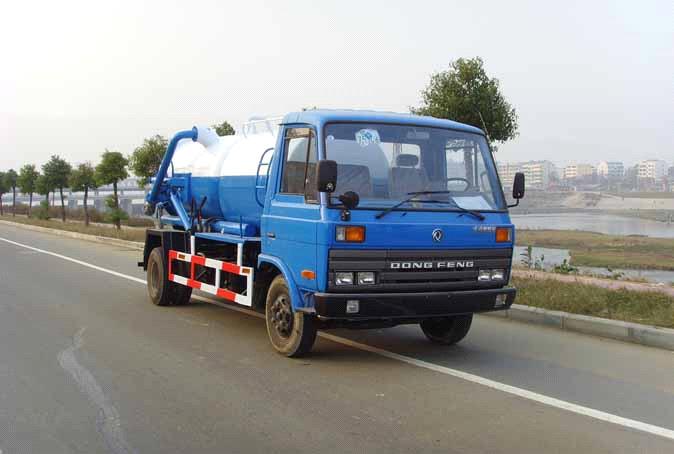

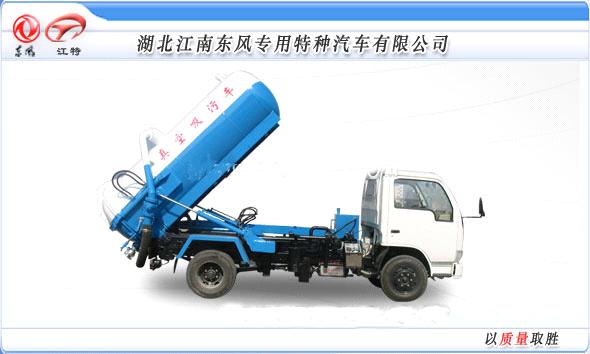

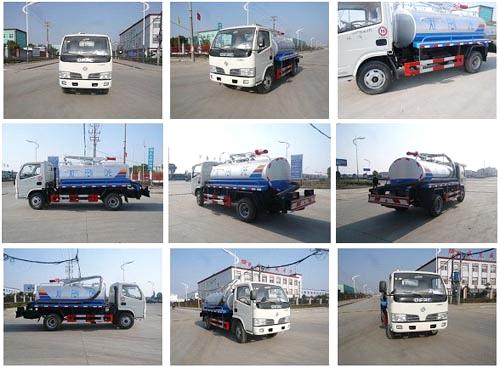

Mini Sewage Sucking Truck
| FOB Price: | 9,999.00 - 29,999.00 USD/Set |
|---|---|
| Supply Ability: | 2,000 Set/Sets per Year |
| Shipping: | Any port in China |
| Payment Terms: | L/C, T/T, Bank transfer |
| Export Markets: | South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | nude, waxed, etc. |
Specifications
MIni Sewage Sucking Truck Technical Parameters:
|
model
|
JDF5060GXW Sewage sucking Truck
|
Chassis model
|
EQ1060TJ20D3
|
||
|
Weight parameter
(kg)
|
Load weight
|
2700.2765
|
Outline size(mm)
|
5995× 1950× 2500
|
|
|
Curb weight
|
3600
|
Van size(mm)
|
/
|
||
|
MAX overall weight
|
6495
|
wheelbase (mm)
|
3300
|
||
|
Engine
|
Load weight
|
CY4102-C3F
|
type
|
Water colling straight-line 4 cylinder diesel engine
|
|
|
Curb weight
|
70/3856
|
Engine factory
|
DONGFENG CHAOYANG DIESEL ENGINE CO., LTD
|
||
|
performance
|
Max speed (km/h)
|
95
|
Track span
(mm)
|
Front axle
|
1506
|
|
cabin
|
Flat head with single type
|
Rear axle
|
1466
|
||
|
seats
|
2.3
|
Reaching out of vehicle (mm)
|
Front overhang
|
1032
|
|
|
Number of tyre
|
6
|
Rear overhang
|
1663
|
||
|
Tyre model
|
6.50-16
|
Driving angle (° )
|
Approach angle
|
19
|
|
|
Steel spring
|
8/9+5,6/8+4
|
Departure angle
|
13
|
||
|
Special functions
|
Tank capacity(L)
|
5000
|
Tank size(mm)
|
/
|
|
|
Volume pump model
|
XD-30
|
Suitbal wheel speed
|
500-600r/min
|
||
|
Max vaccuum radio
|
5KPa
|
effective Sucking range
|
≥ 7-20m
|
||
|
The time when the tank is full
|
≤ 3 min
|
Time of the lift tank
|
≤ 10s
|
||
Remarks:
The above information is just for your reference. We can manufacture the truck according to your specific requirements.
