Home >Products Catalog > Vacuum Suction Truck > Dongfeng Furuika Vacuum Pump Sewage Suction Truck

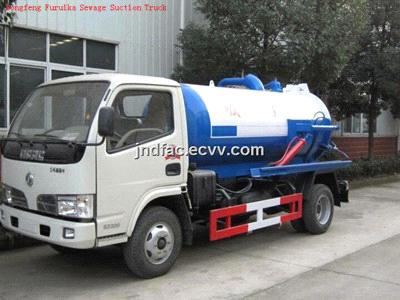

Dongfeng Furuika Vacuum Pump Sewage Suction Truck

FOB Price:	15,000.00 - 20,000.00 USD/Set
Supply Ability:	20,000 Set/Sets per Year
Shipping:	RO-RO shipment or container
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hubei in China
Packaging Details:	Waxed , Bulk shipment or Roro shipment or as customer's demand

Specifications

Dongfeng Furuika Vacuum Pump Sewage Suction Truck

all our products has 3C certificates , and passed ISO9001-2000

Product name	Compression Garbage Truck
Dimensions(mm)	5995×1950×2500	Total Mass(kg)	6495
Approach/Departure Angle	19/13	Loaded Mass(kg)	2765
Front/Rear Suspension(mm)	1032/1663	Unladen Mass(kg)	3600
Chassis Model	EQ1060TJ20D3	Maximum Speed(km/h)	90
Engine Type	Engine Manufacturer	Displacement	Power
CY4102-C3F	Dongfeng Chaoyang Engine	3856	70
Fuel Type	Diesel	Emission Standards	GB3847-2005,GB17691-2005
Axes	2	Number of Tires	6
Wheelbase	3300	Tires	6.50-16/7.00-16
Axle Load	2595/3900	Front Track	1506
Number of Leaf Spring	8/9+5	Rear Track	1466
Others	Media: Liquid dirt; Density: 800 kg/m³; Tank dimensions:(mm)3600*1200 Tank capacity:3540L
Equipment	Equipped with vacuum pump(rating rotate speed=1400r/m,min rotate speed800r/m, max suction lift6m, vacuum500mmHg, clockwise) Equipped with power take off, transmission shaft,fecal tank, pipe network, fecal pipe for observing and cleanout equipment Time for full sucktion 5min
warranty	12months since the date of supply

our company specialized in special trucks , we provide Aerial working platform trucks , Road wrecker, Fire Fighting Trucks , Truck mounted Crane , Garbage truck , Road sweeper , Oil tank , street sprinkle truck , Tractors , Semi-trailer , High-pressure cleaning truck, Suction/Sewage truck , we will serve you with our best , welcome to visit our factory .

if you need more information , pls leave a message or give me a call , thanks
