Flotation Separator for Ore Dressing SafeBuy Supplier Member

FOB Price: 10,000.00 - 50,000.00 USD/Set
Supply Ability: 100 Set/Sets per Year
Shipping: Negotiable
Payment Terms: L/C, T/T
In Stock
Export Markets: South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia
Place of Origin: Henan in China
Packaging Details: Seaworthy Packaging


XJM Series Flotation separator is mainly used for separating coal slime within 0.5mm. It can be also used for separating particulate mineral such as non-ferrous metal, rare metal, ferrous metal, nonmetallic. etc.

Key features:

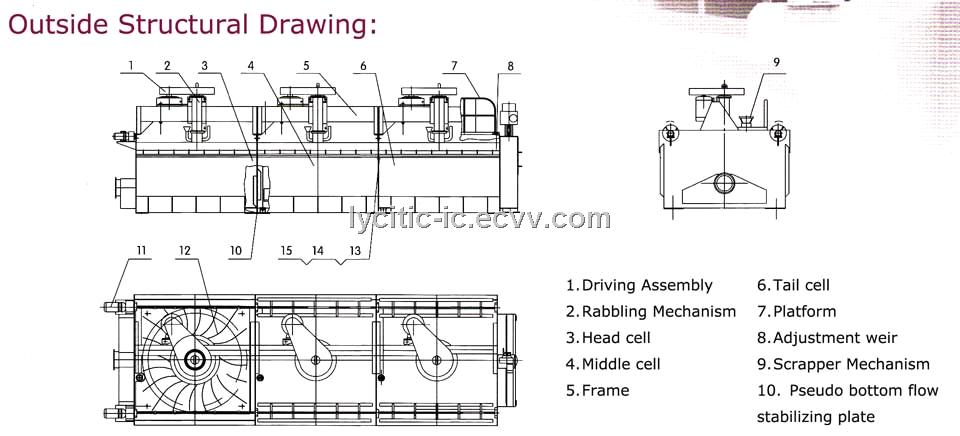

1. Adopted impeller aspirating mechanical agitation
It is consisted of fixed part and rotary part. The impeller rotating and the stator play a role in aspirating and agitating the coal slime in the cell. The impeller is made of ductile cast iron, which improve its wear-resisting property.

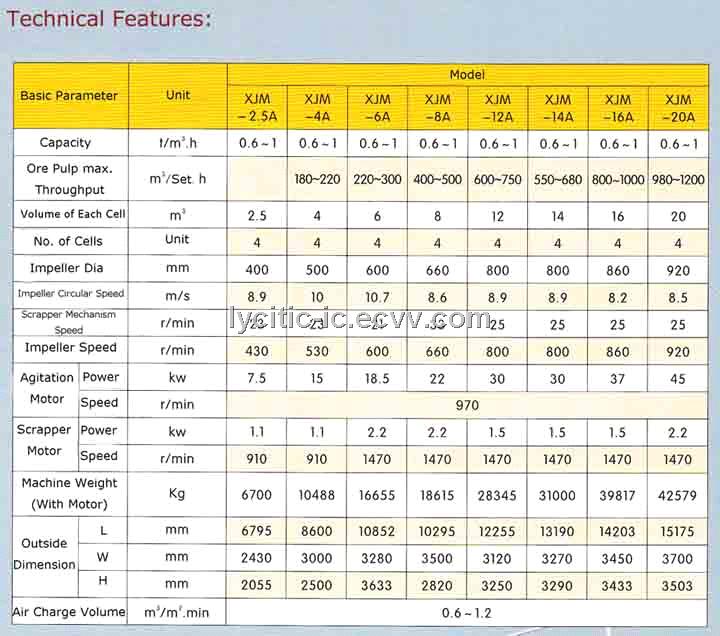

2. The inflating volume can reach 1.2~1.3m3/m2. Min
3. The capacity can reach 0.6~1.2t/h. M3

This series of flotation separator have the features of compact structure, light weight, homogeneous air bubble distribution, great capacity, flexible technical process, convenient operation and reliable work.

Working Principle:
By the impeller rotating, the coal slurry is carried to the suction chamber through the suction bent pipe. Under the centrifugal force of the impeller, the air and coal slurry were inhaled into the impeller due to the internal negative pressure, and then were equally mixed. Effected by proper additives, the coal and agents can be separated due to their different hydrophilic nature.

Ordering instruction:
1. Please give the handling material info. ( size composition, inlet density), and requirements of the machine (i. E handling capacity).
2. Please indicate the cell Nos.
3. Supply full set of main machine (including motor and gearbox).
4. Spare parts need to be order separately.
5. If there is any special requirements, we can supply non-standard products.
