Home  >Products Catalog > Mine Washing Equipment > TWZ Series Horizontal Vibrating Centrifuge

TWZ Series Horizontal Vibrating Centrifuge SafeBuy Supplier Member

FOB Price: 40,000.00 - 50,000.00 USD/Set
Supply Ability: 50 Set/Sets per Quarter
Shipping: Negotiable
Payment Terms: L/C, T/T
In Stock
Export Markets: South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia
Place of Origin: Henan in China
Packaging Details: Seaworthy Packages

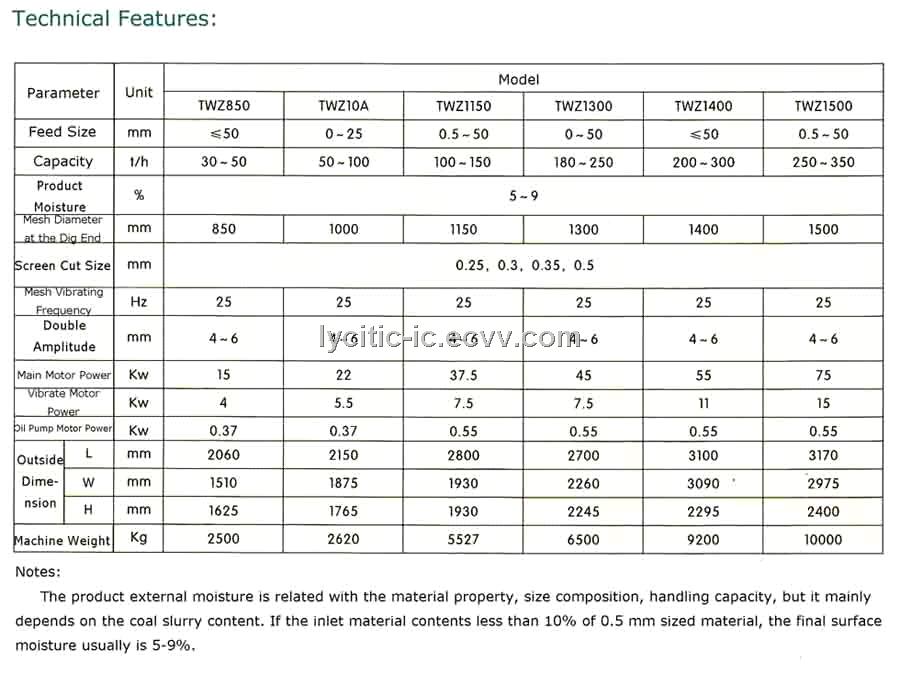

Specifications

Application and features:

Horizontal vibrating centrifuge belongs to the centrifugal dewatering equipments. This series of centrifuge mainly applied for the dewatering of 0.5~25mm medium and cleaned coal in coal dressing plant. It can also be used for dewatering of other similar material.

Structural features:
Horizontal vibrating centrifuge is a kind of solid-liquid seperation equipments. It makes solid-liquid seperation of the material on the sieve which revolves at a high speed. The vibration system attached a vibration force to the material on the sieve, thus the automatic-unloading can be realized.

TWZ series have the features of great output, less material grinding, long working life, stable and easy operation, convenient maintenance. Etc. With simple structure and low noise, it is of low cost and high reliability.

Working principle:
The material get through the feed pipe with enamel and the sieve base, then enter into the bottom of the sieve basket. Pulled by the centrifugal base, material in the sieve basket clings to the screen surface. And then under the vibrating force, the material move uniformly to the big end of the sieve basket, finally the dewatering material is thrown out from all around the sieve basket, falling into the discharging port under the chasis, and then is discharged downward. As to the water in the material, pulled by the centrifugal force, getting through the material layer and screen cut, it is thrown out to all around the chasis and flows along the chasis wall to the water outlet.

Main features:
1. High handling capacity, fine dehydration effect
2. Less material grinding. The sieve basket is difficult to wear and has a long working life.
3. TWZ system applies inertia over resonance vibrating system, with stable and reliable amplitude and frequency.
TWZ vibrating system has advantages such as steady operation, low noise, simple structure, convenient maintenance and energy conservation. etc.

Ordering instruction:

1. Screen cut can be provided according to requirements
2. The main machine is provided in full set (including motor)
3. Spare parts order is seperate.
