Home  >Products Catalog > Optical Passive Series > Sc/Sc Optical Fiber Patchcord

Sc/Sc Optical Fiber Patchcord SafeBuy Supplier Member

Shipping: By sea or air
Payment Terms: L/C, T/T
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Zhejiang in China

Quick Details

  • Brand Name: YOUXIN
  • Model Number: FPT-SC/APC-SC/APC-SM

Specifications

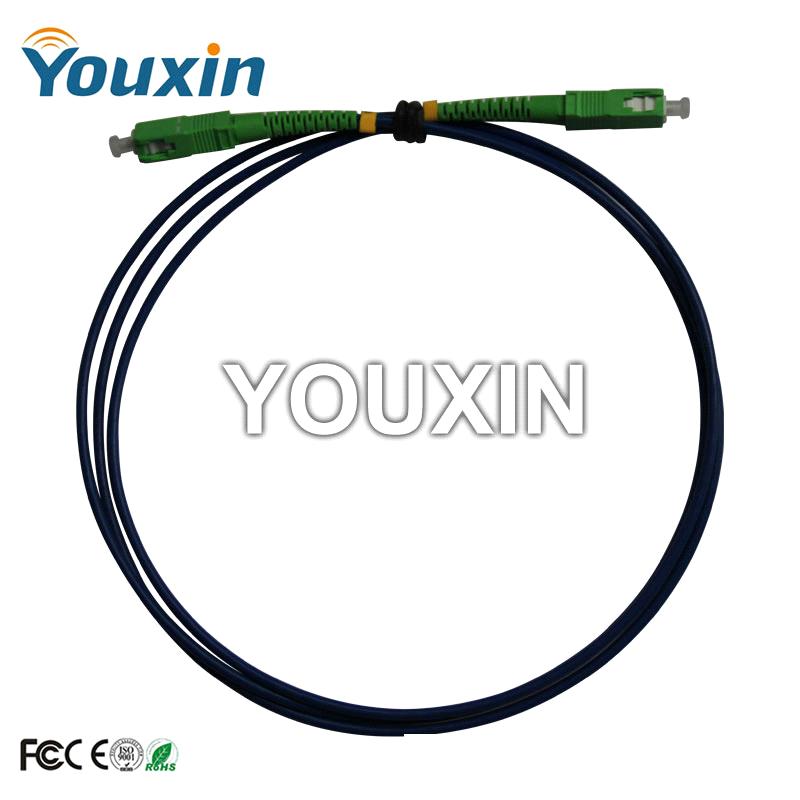

Optical fiber patch cord, G652D, 9/125um, single fiber, 3.0mm, LSZH, 3m, single SC/APC to singleSC/APC.
Features :
◇ Low insertion loss
◇ High return loss
◇ High stability and reliability

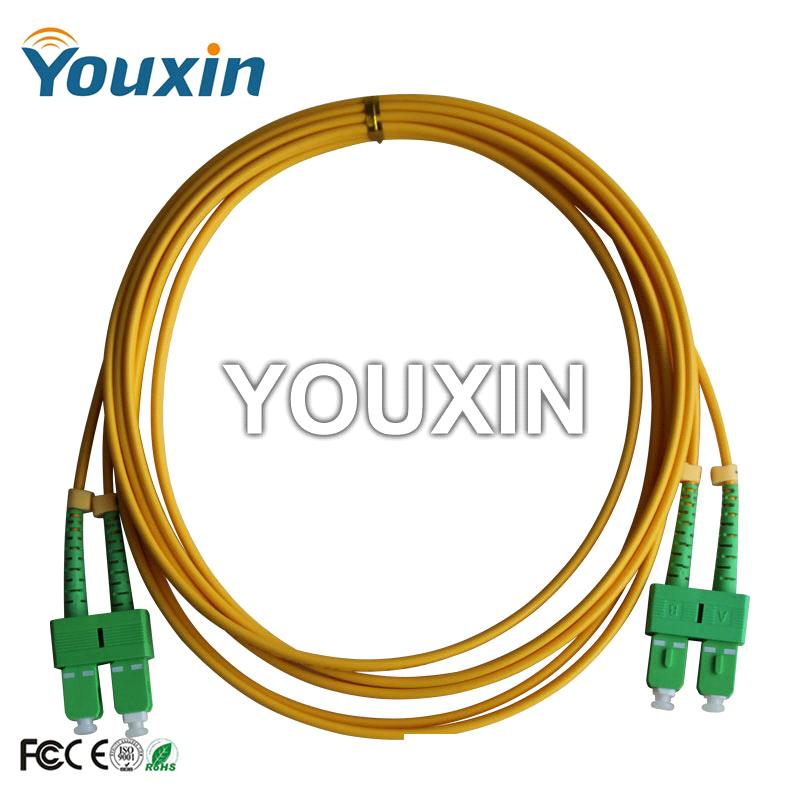

◇ SM and MM, single and duplex cores, Φ0.9mm, Φ2.0mm, Φ3.0mm(PVC/LSZH)
◇ length is specified

Parameter
  Item
Specification
SM
MM
PC
UPC
APC
PC
Insertion loss
≤0.20 dB
Max. Insertion loss
≤0.30 dB
Repeatability
≤0.10 dB
Changeability
≤0.20 dB
Return Loss
45 dB
50 dB
60 dB

Operation temperature
-40 ~ +80℃
Storage temperature
-40 ~ +85℃
Fiber type
9/125 um
50/125 um.62.5/125 um
Core number
single or dual fiber
Durability
>1000 times
Industry standard
Bellcore TA-NWT-001209
Applications
◇ FTTH, LAN, PON & Optical CATV
◇ Local ring net
◇ Optical fiber communication system
◇ Optical fiber test equipment
