Quick Details
- Brand Name: YOUXIN
- Model Number: FSP-100
Specifications
Chinese fusion splicer, 5 inch color screen, standard accessories. Multiple language menu options, with cleaver.
Features:
Fusion Splicer Manual:FSP 100Fusion Splicer Manual
◇ Fiber core can be display clearly
◇ Single X or Y view and X & Y view simultaneously
◇ Auto check quality of cleaved end face
◇ Auto select best splicing program
◇ 9 seconds splice time and 30 seconds heat time
◇ Small bulk and light weight
◇ 5 inch color LCD monitor with clear digital image display
◇ Simple operation menu
Description

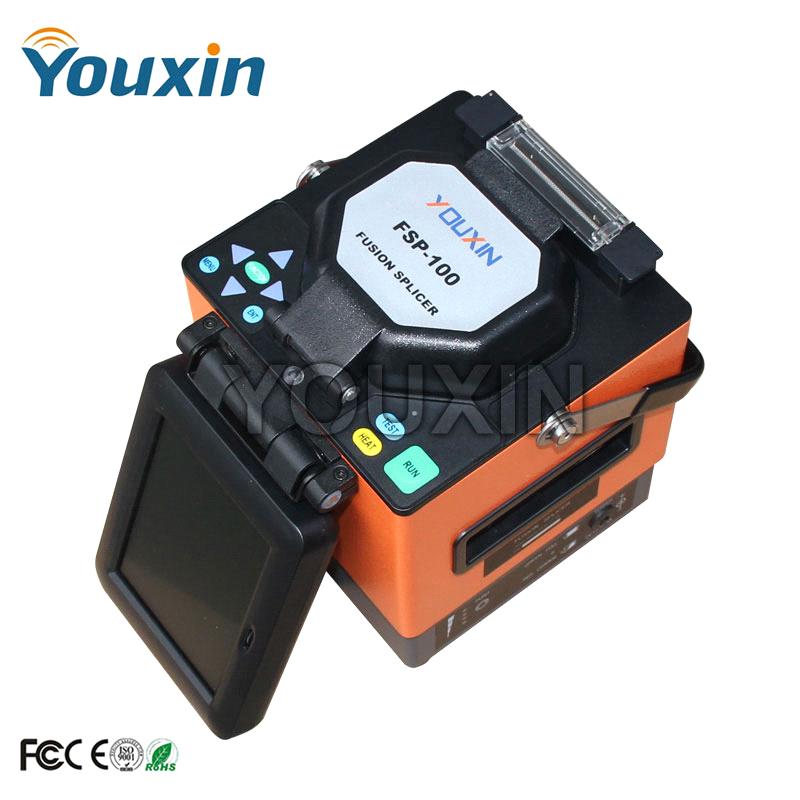

FSP-100 is an economic and competitive fusion splicer machine for optical network engineering. compact, simple and slim body, multiple foreign languages menu, handheld power in the machine, convenient and easy to operate indoor and field.
Fiber core can be display clearly, Single X or Y view and X & Y view simultaneously, Auto check quality of cleaved end face, Auto select best splicing program, 9 seconds splice time and 30 seconds heat time, Small bulk and light weight, 5 inch color LCD monitor with clear digital image display, Simple Operation menu.
Parameter
|
Item
|
Parameter
|
|
Applicable fiber
|
SM MM DS NZDS
|
|
Fiber cleaved length
|
8~16mm
|
|
Fiber diameter
|
Cladding diameter:80~150um
Coating diameter:100~1000um
|
|
Fiber count
|
Single
|
|
Fiber aligning method
|
Core aligning
|
|
Return loss
|
＞60db
|
|
Actual average splice loss
|
0.02db-SM;0.01db-MM;
0.04db-DS;0.04db-NZDS
|
|
Splicing mode
|
Auto
|
|
Typical splicing time
|
9 sec for standard SM fiber
|
|
Tube typical heating time
|
30sec
|
|
Protection sleeve length
|
40mm, 60mm
|
|
Storage of splice result
|
5000, 3 parameter per result
|
|
Tension
|
2N
|
|
Fiber magnification
|
400X(X or Y view) &200X(X or Y view)
|
|
Electrode life
|
2500
|
|
No. of splice/heating with battery
|
130 cycles
|
|
Image change over
|
The fiber image can be turned out
|
|
Display screen
|
5 inch color LCD monitor
|
|
Terminal management
|
RS232 port
|
|
Power supply
|
AC100~240V with adaptor and with 6600mAH Li-battery
|
|
Operating temperature
|
0~5000m above sea level
-10~50℃
|
|
Dimension
|
150x150x160mm
|
|
Weight
|
3.52kg including battery
|
Applications
◇ SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU G.653),NZDS(ITU-T G.655)
Packing List
|
No
|
Item
|
Unit
|
Qty
|
|
|
1
|
Fusion Splicer
|
pcs
|
1
|
Equipment
|
|
2
|
Power supply module
|
pcs
|
1
|
Accessories
|
|
3
|

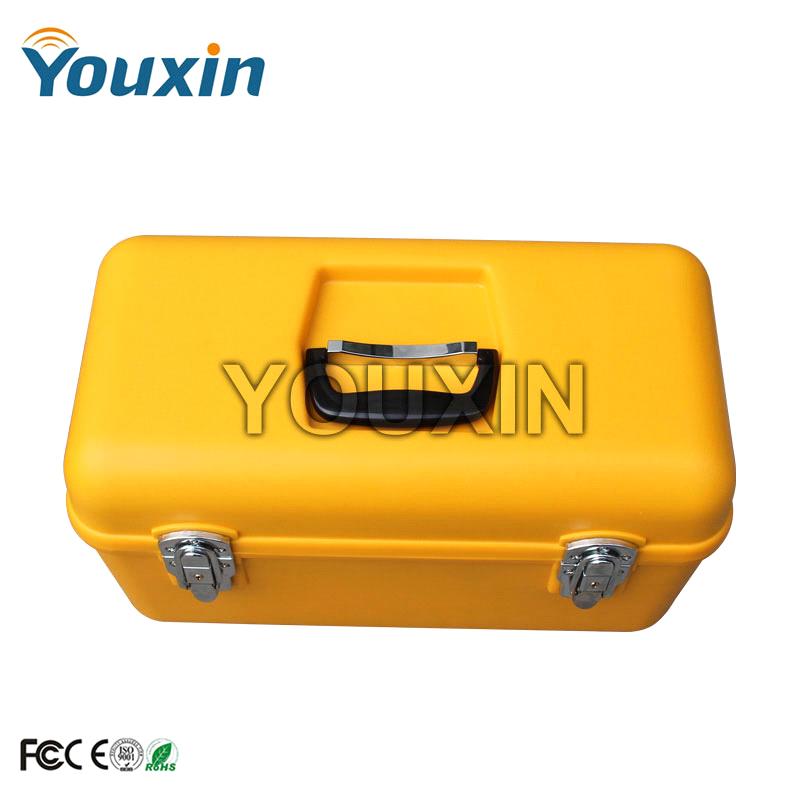

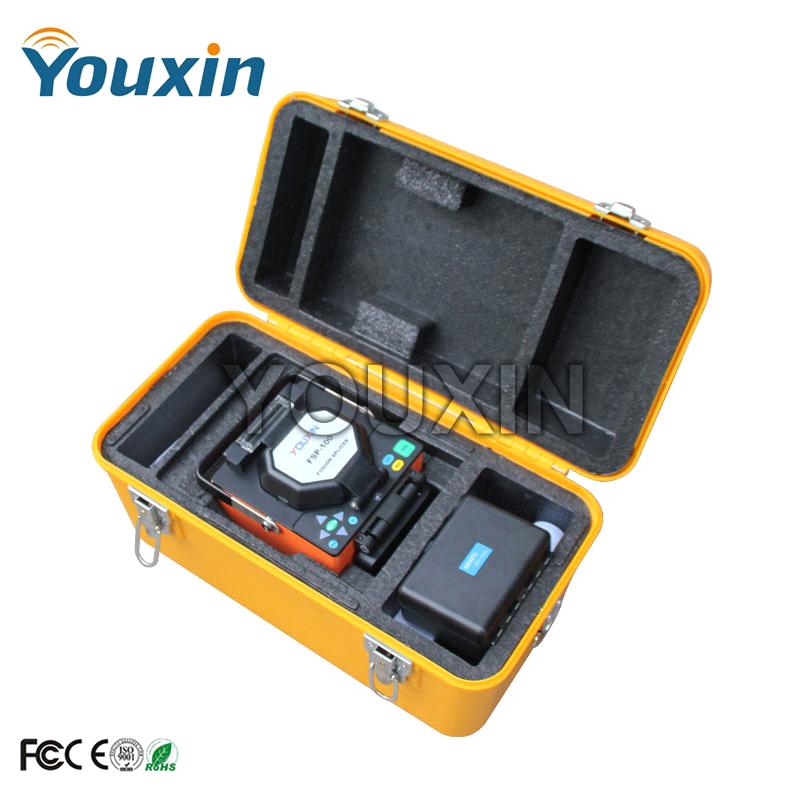

Carrying Case
|
pcs
|
1
|
Accessories
|
|
4
|
Spare Electrodes
|
set
|
1
|
Accessories
|
|
5
|
User Manual
|
pcs
|
1
|
Accessories
|
|
6
|
Video Instruction Manual
|
pcs
|
1
|
Accessories
|
|
7
|
AC Power Cord
|
pcs
|
1
|
Accessories
|
|
8
|

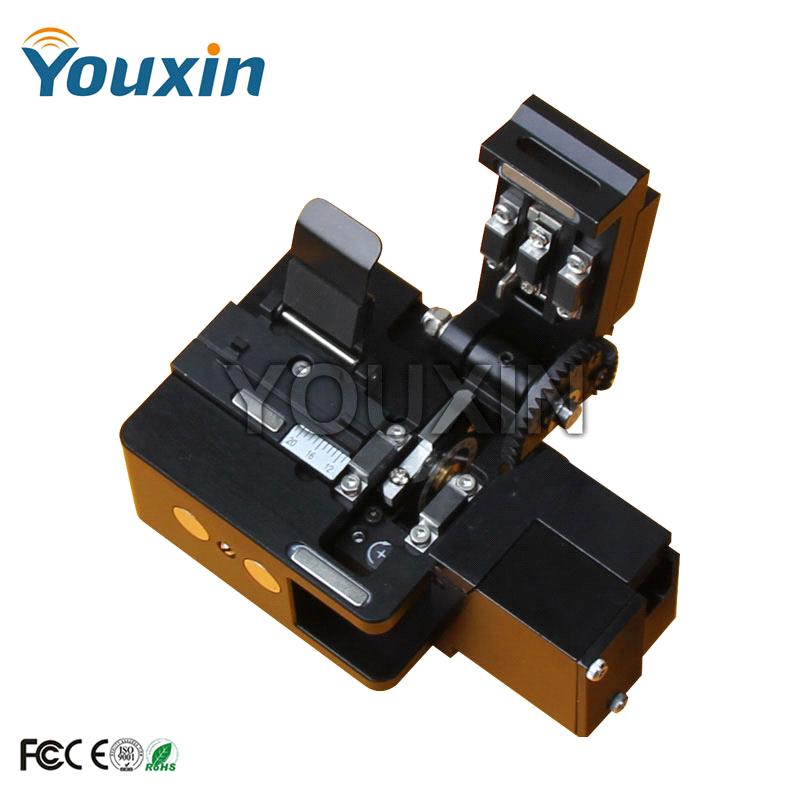

Cleaver
|
pcs
|
1
|
optional
|
|
9
|
Cool Tray
|
pcs
|
1
|
Accessories
|
|
10
|
Packing List
|
pcs
|
1
|
Accessories
|
