Quick Details
- Brand Name: YOUXIN
- Model Number: FC-100
Specifications

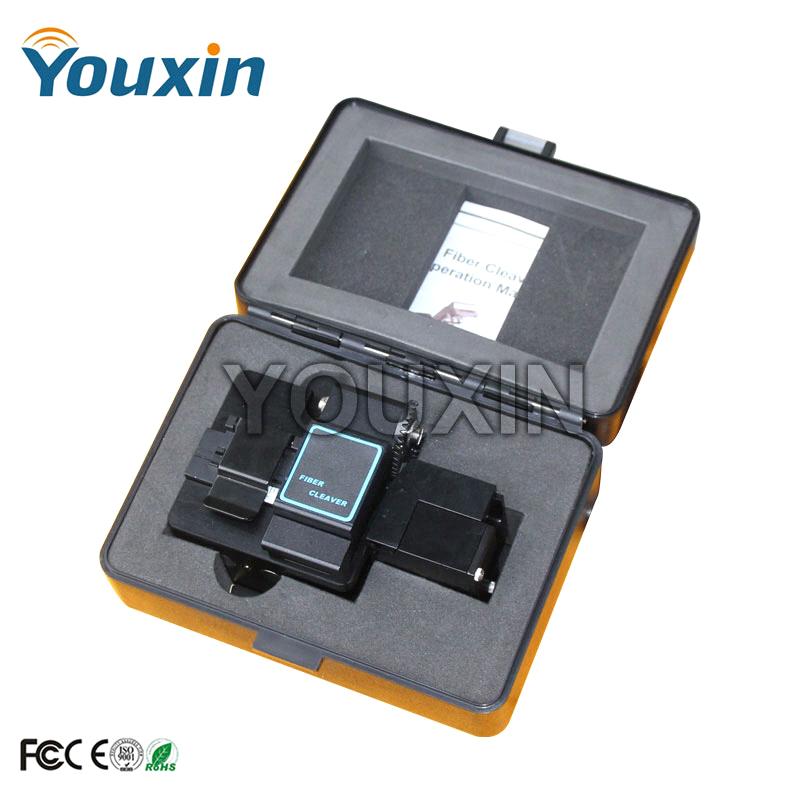

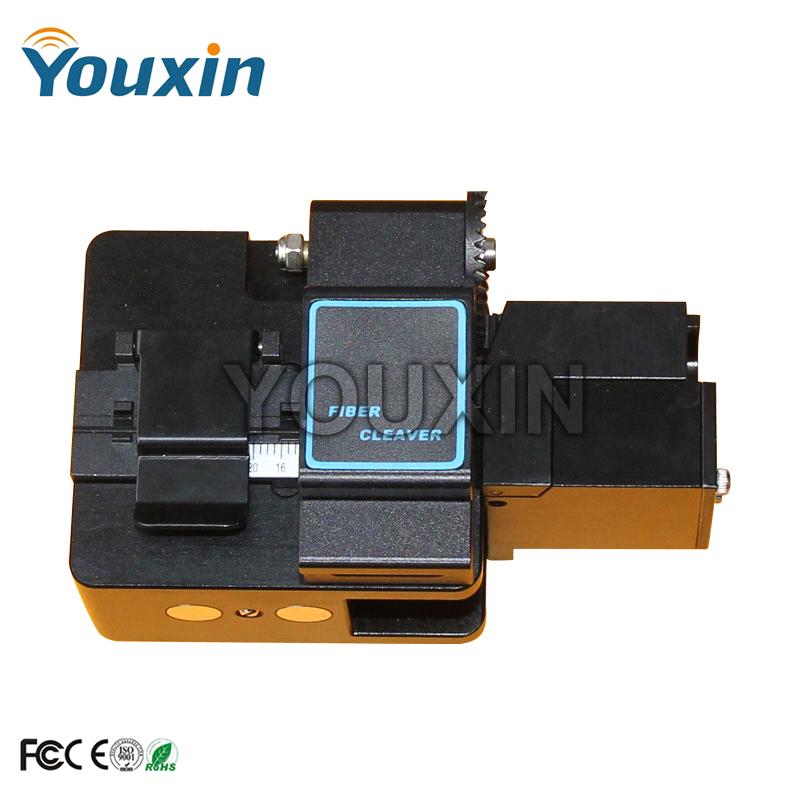

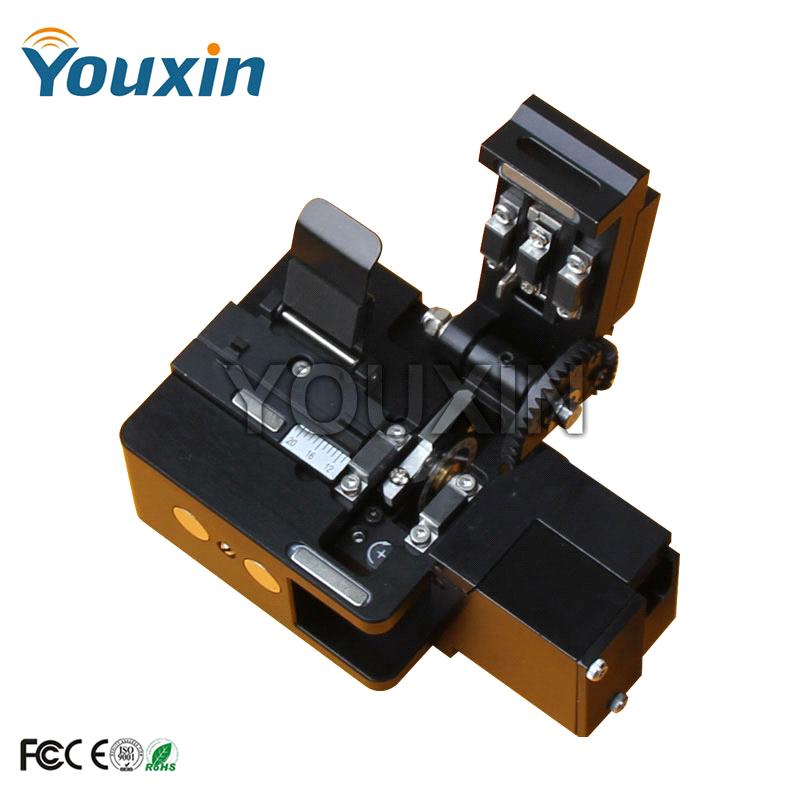

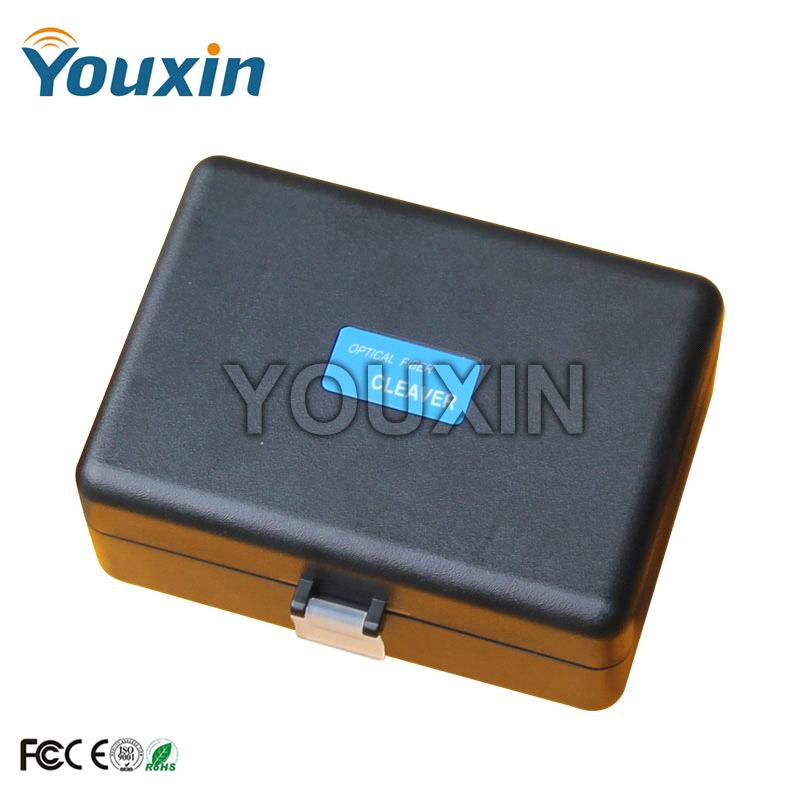

Chinese multi-action clever, high precision preparation for single fibers, standard length 16mm.
Features:
Fusion Splicer Manual: Fiber Cleaver Manual
◇ Compact body& light weight
◇ Applicable up to 12-fiber cleaving
◇ 48000 fibers blade life(3 height x 16 positions)
◇ Fiber scrap collection-free
Description
High-precision optical fiber cleavers are commercially available through a small number of specialized manufacturers, such as YOUXIN, Fujukura, which usually also supplies other fusion splicing accessories such as fiber optic recoaters and stripping and preparation equipment.
Parameter
|
Item
|
Specification
|
|
Bare fiber diameter
|
125um
|
|
Outer coat diameter
|
0.25~0.9mm
|
|
Fiber type
|
Single tube fiber and Ribbon fiber(exchangeable)
|
|
Cleaved length
|
5~30mm
|
|
Cleaved angle
|
0.5°
|
|
Blade life
|
0.5° -12,000cleaves
|
|
Mode
|
Semiautomatic
|
|
Dimensions
|
58 (W)× 55(D)× 48mm(H)
|
|
Weight
|
260g
|
Applications
◇ SM(ITU-T G. 652), MM(ITU-T G. 651), DS(ITU G. 653), NZDS(ITU-T G. 655)
