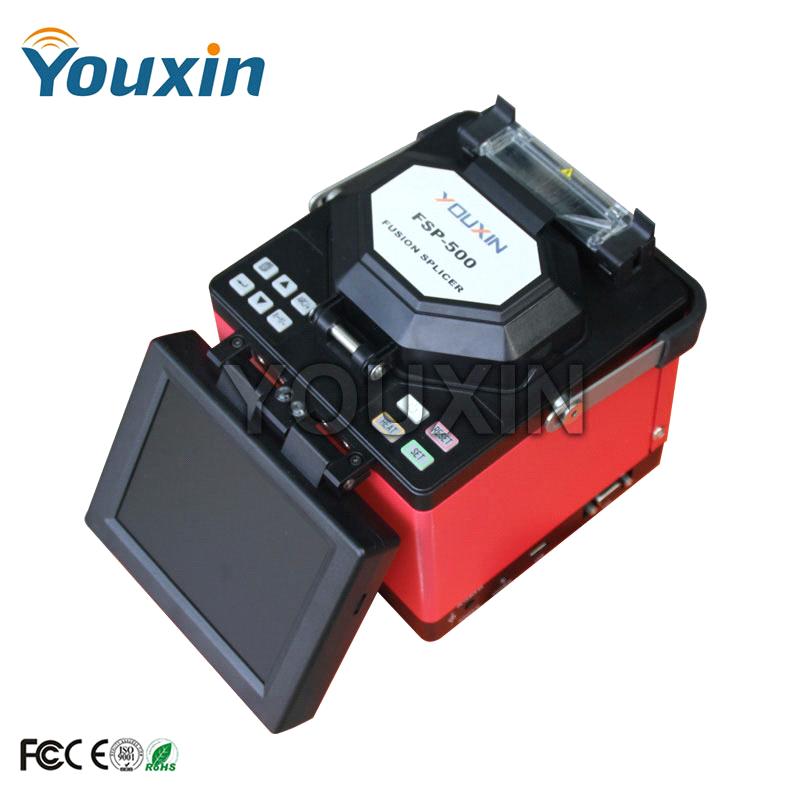

Fusion Splicer(FTTH) for Drop Cable and Pathcord FSP-500
| Shipping: | By sea or air |
|---|---|
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Brand Name: YOUXIN
- Model Number: FSP-500
Specifications
Fusion Splicer(FTTH) for drop cable and pathcord, with USB and VGA interface, 5.7 inch color screen, standard accessories. Multiple language menu options, with cleaver.
Features:
Fusion Splicer Manual: FSP 500 Fusion Splicer Manual
◇ FTTH is environment, can be used in normal optical fiber engineering
◇ Accurate fiber core alignment, guarantee in the low loss
◇ Small volume, light weight, including the battery only 2.8 kg
◇ 8 seconds welding, heat shrinkable 30 seconds
◇ X/the Y axis shows at the same time, magnified 304 times
◇ Can be set to close wind cover automatically start welding, closed heating cover heat shrinkable start automatically
◇ Real-time discharge correction, do not need to adjust the parameters
◇ Electrode life is long, discharge is as high as 4000
◇ USB and VGA port
◇ 5.7 inch high-definition digital display on the LCD panel
◇ Built-in super capacity of lithium battery, can be completed in 220 times and heating
◇ Real-time accurate says the battery surplus
Description
The fiber fusion splicer(FSP-500 )is FTTH fibersplicing machines is a new design of the optical fiber in equipment. In thelight of the special FTTH environment.
In fiber application: This fiber fusion splicer light body and the fine designin the even if narrow work environment also can ease; Our this fiber fusionsplicer has Novel light, and the fiber fusion splicer can provide fine imagingsystem and pure digital design makes the image display is more exquisite, clear. The embedded real-time operating system provides the friendly interfaceand more rich function; The built-in super capacity for long time highperformance of lithium battery field work provides reliably.
Temperature, humidity and pressure real-time compensation system has greatlyimproved the equipment adapt to bad environmental change ability, for indifferent get low loss in the environment of the consistency of the provide aguarantee.
Parameter
In fiber application: This fiber fusion splicer light body and the fine designin the even if narrow work environment also can ease; Our this fiber fusionsplicer has Novel light, and the fiber fusion splicer can provide fine imagingsystem and pure digital design makes the image display is more exquisite, clear. The embedded real-time operating system provides the friendly interfaceand more rich function; The built-in super capacity for long time highperformance of lithium battery field work provides reliably.
Temperature, humidity and pressure real-time compensation system has greatlyimproved the equipment adapt to bad environmental change ability, for indifferent get low loss in the environment of the consistency of the provide aguarantee.
Parameter
|
Applicable Fiber
|
SMF(ITU-T G. 652), MMF(ITU-T G. 651), DSF(ITU-T G. 653), NZDSF
|
|
Average Splicing Loss
|
0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
|
|
Return Loss
|
< -60dB
|
|
Operation Mode
|
Auto, Half auto, Manual
|
|
Align Mode
|
Advanced PAS align mode.
|
|
Fiber Diameter
|
clad diameter: 80μ m～ 150μ m, coating diameter: 100μ m～ 1000μ m
|
|
Cleave Length
|
8~16mm(coating diameter< 250μ m), 16mm(coating diameter 250～ 1000μ m)
|
|
Magnification
|
Vertical 152times, horizontal 304times.
|
|
Image Display
|
5.7′ 640× 480 LCD.
|
|
Pull Test
|
Standard 2N(optional).
|
|
Pyrocondensation Tube
|
40mm, 60mm and a series of micro Heat-Shrinkable Tubing.
|
|
Battery Capacity
|
Typically splice 220 times, charging for 3.5 hour(available when charge).
|
|
Battery Lifetime
|
Cycle life up to 300～ 500 times, replaceable.
|
|
Electrode Lifetime
|
> 4000 times, replaceable
|
|
Lighting for Construction
|
Built-in super High-brightness LED supply convenient for night work
|
|
Ports
|
USB, VGA
|
|
Power Supply
|
Built in 11.1V Lithium Ion Battery. AC adopter(input AC100～ 240, output DC13.5V/4.5A)
|
|
Environment Adaptation
|
Temperature range: -10o C～ 50o C; Humidity: 95%RH(40o C), no condensing); Altitude: 0～ 5000m
|
|
Size
|
L× W× H=160× 150× 140(mm)
|
|
Weight
|
2.3kg(no battery ), 2.8kg (including battery)
|
◇ SM(ITU-T G. 652), MM(ITU-T G. 651), DS(ITU G. 653), NZDS(ITU-T G. 655)
Packing List
|
Key
|
Description
|
QTY
|
|
1
|
FSP-500 Fiber Splicer
|
1
|
|
2
|
Fiber holder FH-71A-2.0
|
1 pair
|
|
3
|
Fiber holder FH-71A-SC
|
1 pair
|
|
4
|
AC power adpoter
|
1
|
|
5
|
AC current cable
|
1
|
|
6
|
Standby electrode
|
1 pair
|
|
7
|
Blower brush
|
1
|
|
8
|
Bottle with siphon
|
1
|
|
9
|
Cooling tray
|
1
|
|
10
|
User' s manual
|
1
|
|
11
|

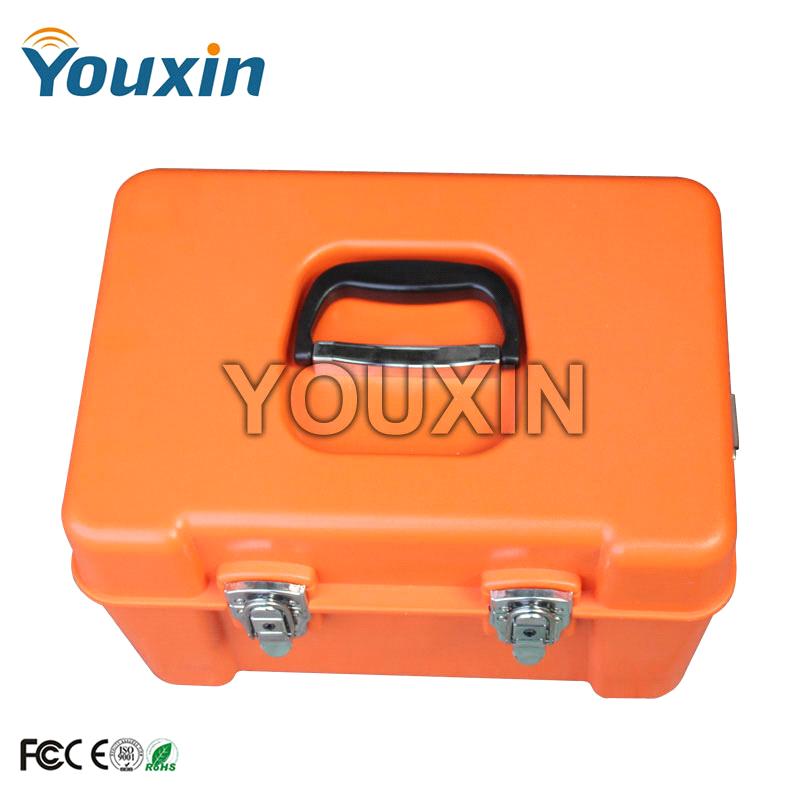

Luxury tote kit
|
1
|
