Six spindles CNC Router for wood plastic embroidery SafeBuy Supplier Member

FOB Price: 3,388.00 - 8,833.00 USD/Set
Supply Ability: 150 Set/Sets per Month
Shipping: 6 working-days delivery time, FOBQingdao/Shanghai/Ningbo/Tianjin
Payment Terms: L/C, T/T, Western Union
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China
Packaging Details: Fumigating wooden packaging, wooden case

Quick Details

  • Brand Name: TZJD
  • Model Number: 1512
  • Working area: 1500mm*1200mm*120mm
  • Machine structure: Rack gear
  • Spindle: 6 pieces spindle
  • Spindle power: 2.2kw water-cooling
  • Motor driver: Stepper
  • Working table: T-Slot with PVC board
  • Interface: USB

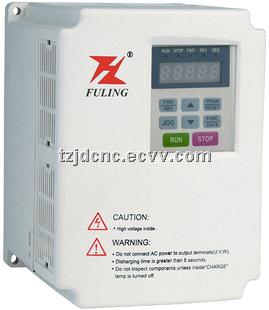

  • Inverter: Fulling
  • Controller: DSP
  • Software: Type3
  • Working voltage: single phase 110v/220v, 50hz/60hz

Specifications

Six spindles CNC Router for wood plastic embroidery

1. Cast heavy-thickness square tube welding structure, solid without distortion.


2. Germany Ballscrew system for Z axis, high-efficiency wrking. Rack gear for X Y axis, high-speed with best rigidity.


3. Taiwan HIWIN Square orbits. High-efficiency & Long-time life.


4. Water-cooling spindle, can be working for a long term.


5. Brolen-point memory, ensures the continuity of work when inciddent happens.

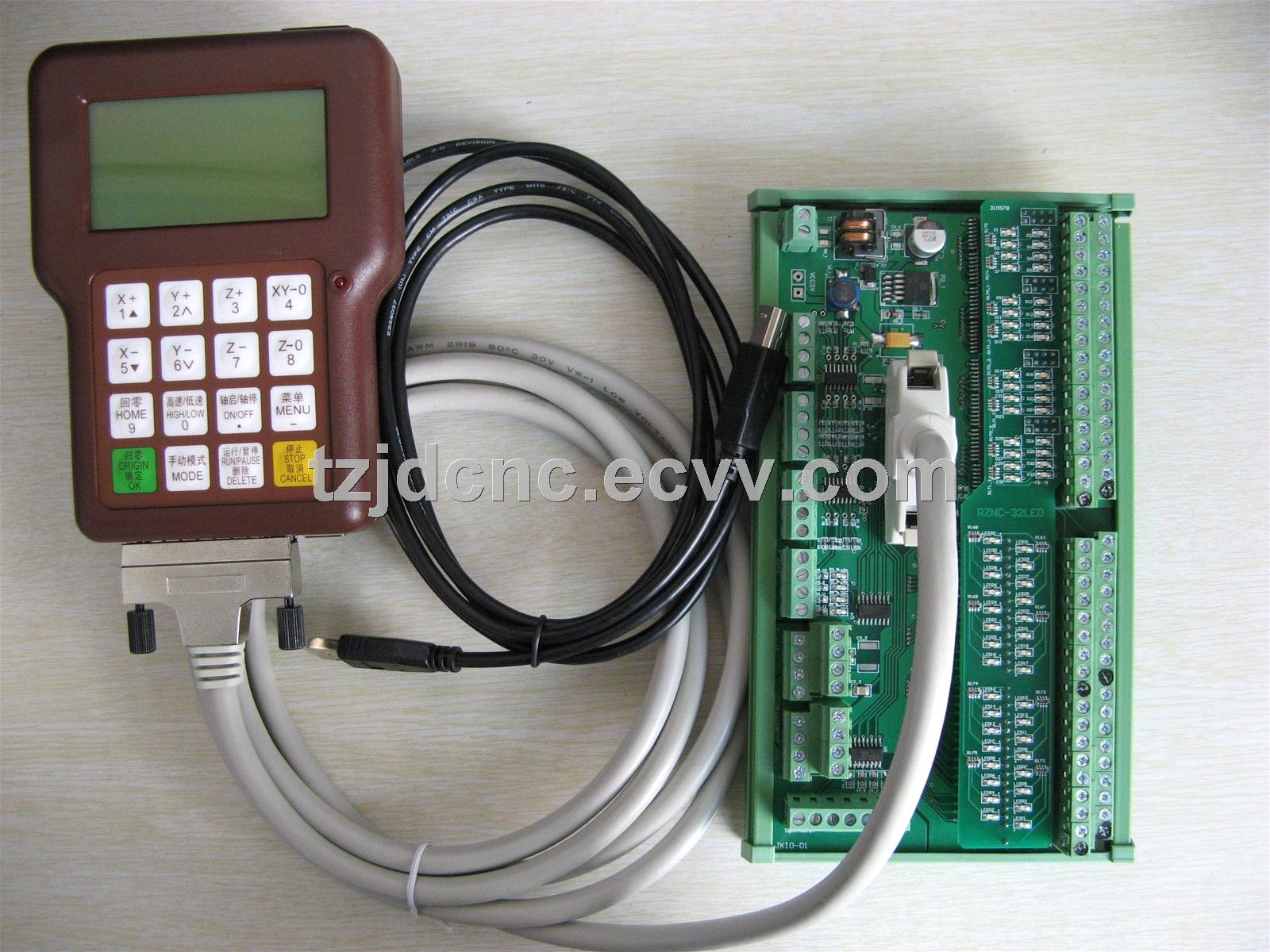

6. DSP Controller system, conveniently to operate.


7. Water-cooling Spindle & Air-cooling Spindle, fasting-speed & working-efficiency.


8. U flash interface.


9. Software compatibility: Types/Artcam/astmate/Wentai & these CAD/CAM designing software.


10. Water-cooling system, mainly improve the tools working-life. Low noise & lowest maintenance.


11. Double motors for Y axis, confirm the working under stable.


12. Tool sensor system, save extra time, improve working-efficiency.


13. Special dustproof device, confirm the working environment cleanly.




Specification Parameter

Description

Parameter

TZJD-1512

Working Area (X*Y*Zmm)

1500mm*1200mm*120mm

Max Engraving Speed

8000mm/min

Frame

Cast Square tube welding

XYZ travelling positioning accuracy

±0.03/300mm

XYZ repositioning accuracy

±0.02mm

Spindle power(KW)

 1.5 KW/2.2KW/3KW/4.5KW *6

Max. Power Consumption(Without spindle)

1.2KW

Spindle Speed

6000-24000rpm

Resolution

0.005mm

Repeatability

0.01mm

Voltage

AC220V,50Hz/60Hz(option:AC110V,50Hz/60HZ)

Drive motor

Stepper(option:Servo motor)

Working table

T-Slot with PVC board

Working Dictate

G Code*.u00*.mmg*.plt

Operating system

Nc-studio/DSP optional

Different diameters blade

ф3.175, ф6mm, ф12.7mm, ф2,ф1, etc.

Software environment

Windows98/2000/xp

Interface

USB

Flash memory

128M(U Disk)

Software Compatability

Type3,,Ucancam,Artcam Software)

Running Environemt

Temperature: 0℃~45℃

Relative humidity: 30%~75%

Machine available(option)

Dust collector system, spindle cover, Japan Panasonic Servo motor, vacuum absorption table

& vacuum pump system, Auto-oiling system, Tool-sensor,



Applicable materials:

Wooden industry: harden wooden relievo engraving, classical furniture and wooden crafts, gift box, jewel case engraving.



Advertising industry:

plate & mould engraving; Atchitects' models, badge, display board, organization's symbol, door plate,

process decoration, furniture decoration.

Metal industry: steel, copper, aluminum,stainless steel, iron, etc.
