3 Axis Desktop CNC Router 600mm*900mm
| FOB Price: | 1,663.00 - 3,661.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Shipping: | 4 working-days Delivery time, FOBQingdao |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | fumigating wooden case |
Quick Details
- Brand Name: TZJD
- Model Number: 6090B
- Color: White Blue
- Working area: 600mm*900mm*230mm
- Working voltage: single-phase 110v/220v, 50hz/60hz
- Structure: Imported German ballscrew
- Spindle: 1.5kw, 2.2kw, 3kw water-cooling
- Drive motor: Stepper Servo
- Guide rail: Taiwan HIWIN Square guide way and slider
- Working table: T-Slot with PVC board
- Control system: Ncstudio controller, DSP controller, Syntec
- Software: Original Type3 with dongle-key
Specifications
3 Axis Desktop CNC Router 600mm*900mm
1-Specification Parameter
| Description | Parameter |
| TZJD-6090 | |
| Working Area (X*Y*Zmm) | 600mm*900mm*230mm |
| Max Engraving Speed | 6000mm/min |
| Frame | Square tube welding |
| XYZ travelling positioning accuracy | ±0.03/300mm |
| XYZ repositioning accuracy | ±0.02mm |
| Spindle power(KW) | 1.5 KW/2.2KW/3KW |
| Max. Power Consumption(Without spindle) | 1.2KW |
| Spindle Speed | 6000-24000rpm |
| Resolution | 0.005mm |
| Repeatability | 0.01mm |
| Voltage | AC220V,50Hz/60Hz(option:AC110V,50Hz/60HZ) |
| Drive motor | Stepper(option:Servo motor) |
| Working table | T-Slot with PVC board |
| Working Dictate | G Code*.u00*.mmg*.plt |
| Operating system | Nc-studio/DSP optional |
| Software environment | Windows98/2000/xp |
| Interface | USB |
| Flash memory | 128M(U Disk) |
| Software Compatability | Type3,,Ucancam,Artcam Software) |
| Running Environemt | Temperature: 0℃～45℃ |
| Relative humidity: 30%～75% | |
| Machine available |
Dust collector system, spindle cover, Japan Panasonic Servo motor, vacuum absorption table & vacuum pump system, Auto-oiling system, Tool-sensor, |
2- Product Features
1. German Ball Screw Nut and imported Guide; guarantee the long-life using.
2. Broken-point memory ensures the continuity of work when inciddent happens.
3, Gantry movement ensures the undeformation after a long-time work as well as a higher accuracy.
4. Solid gantry, well structure of lathe bed, stable lathe table.
5. High power cutting of Desktop CNC Router ensures the smoothness and clearness of the processed metal.
6. High-speed spindle with water cooling system works vigorously with low noise and guarantees long time mass processing.
7. Aluminum decorated appearance, beautiful shape and magnificent looking.
8. Wide range of use: Architecture model, school, government departments and enterprises.
9. Optimized mechanical and electrical design with well-selected brand parts minimizes breakdown rate.
3-Applicable industry
Advertisement industry, handicraft industry, various types of man-made plate, LED, mold manufacturing, wood processing, craft manufacturing, light box cutting, building model, light equipment mold processing, sign and mark, acrylic board processing,PCB circult board, department cards.
4-Applicable material
Acryl ,wood, Aluminum, 3D technology, copper, PVC board, MDF board, PCB Board, breastplate, indoor & outdoor decoration, etc.

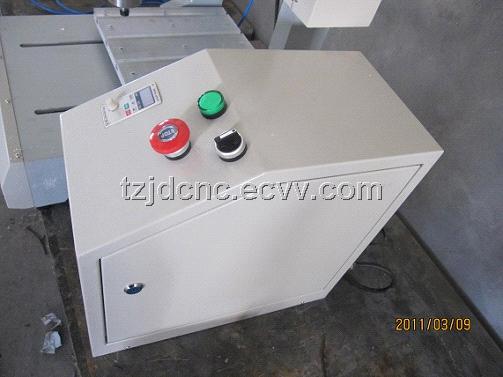

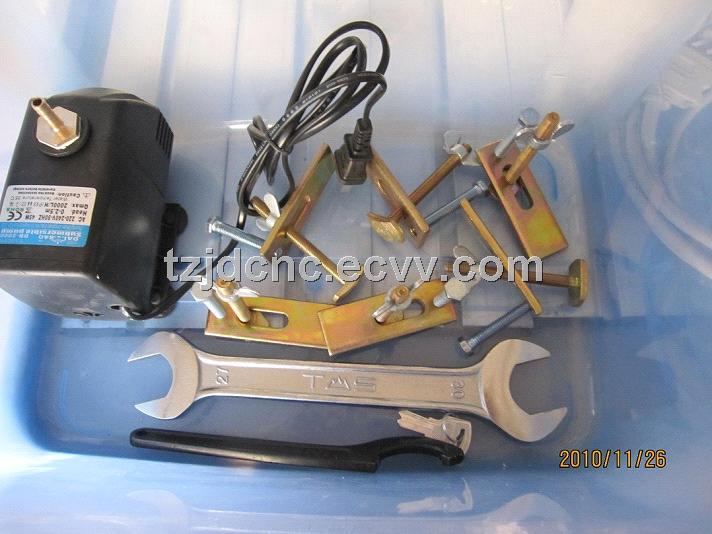

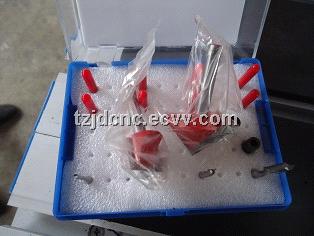

5- Machine picture
6- Sample picture
