Home  >Products Catalog > CNC Router > CNC Wood Carving machine/Wood Cutting machine TZJD-M25A

CNC Wood Carving machine/Wood Cutting machine TZJD-M25A SafeBuy Supplier Member

FOB Price: 1,995.00 - 5,991.00 USD/Set
Supply Ability: 100 Set/Sets per Month
Shipping: 6 working-days Delivery time, FOBQingdao
Payment Terms: T/T, Western Union
Update Time: 2017/10/5
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China
Packaging Details: fumigating wooden case

Quick Details

  • Brand Name: TZJD
  • Model Number: M25A
  • Color: White
  • Working area: 1300mm*2500mm*200mm
  • XY structure: Rack and pinion transmission
  • Z structure: Imported German ballscrew
  • Spindle: 4.5kw water-cooling, air-cooling
  • Drive motor: Servo
  • Guide rail: Taiwan HIWIN Square guide way and slider
  • Working table: T-Slot with PVC
  • Control system: Ncstudio controller, DSP controller
  • Software: Original Type3 with dongle-key

Specifications

CNC Wood Carving machine/Wood Cutting machine TZJD-M25A

1-
Specification Parameter

Description

Paramater

TZJD-M25A

Working Area (X*Y*Zmm)

1300mmx2500mmx200mm

X, Y Structure

Gear Wheel Transmission, Shaft Linear Bearings

Z Structure

Ball Screw/Gear wheel

Table Surface

T-Slot Table with PVC board

Max Engraving Speed

20000mm/min

Frame

Cast Square tube welding, "trapezoid" type structure

Spindle power(KW)

3kw/4.5kw/5.5kw/6kw/7.5kw/9kw

Max. Power Consumption(Without spindle)

2.0KW

Spindle Speed

6000-24000rpm

Resolution

0.005mm

Repeatability

0.01mm

Voltage

AC220V,50/60Hz,1PH(option,380V 3PH)

Drive motor

 Stepper/servo

Working Dictate

G Code*.u00*.mmg*.plt

Operating system

Dsp System/Syntec/LNC

Necessary function

Auto-oiling system

Interface

USB

Flash memory

128M(U Disk)

Software Compatability

Type3,Ucancam, Artcam Software

Running Environemt

Temperature: 0℃~45℃

Relative humidity: 30%~75%

Working software

Windows98/2000/xp


2-
Product Features

1. Heavy-duty structure with large solid gantry; stable engraving/cutting & high working accuracy.

2. Three Axis under the control of Type3/Artcam software, with high automation.

3. High speed and efficiency, max. speed over 16m/m.

4. The CNC Engraver is with two motors and unique two rack driving,

No deformation and vibration after a long-time work within high speed.

5. Application of Leadshine driver with high definition subdivision ensures fast speed and high accuracy.

6.Wood industry,it is a professional wood door making and furniture making machine.




3-Applicable industry
Wood industry,i wood door making and furniture making, relief, double-color board, bamboo crafts,
Advertising industry,breastplate,doorplate, aluminum, marble/stone industry.


4-Applicable material
Wood,organic glass,PVC board, plastic, marble, metal, aluminum, KT board,Acryl ,etc

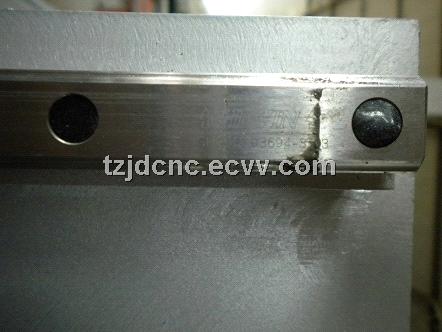

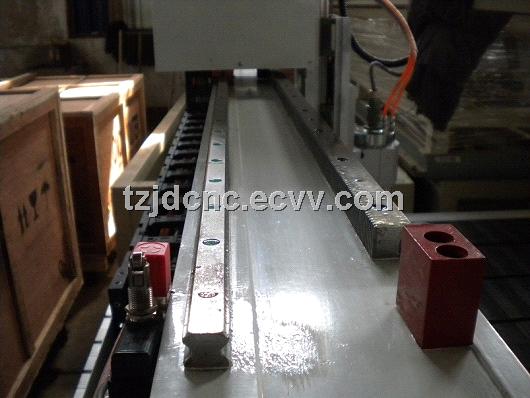

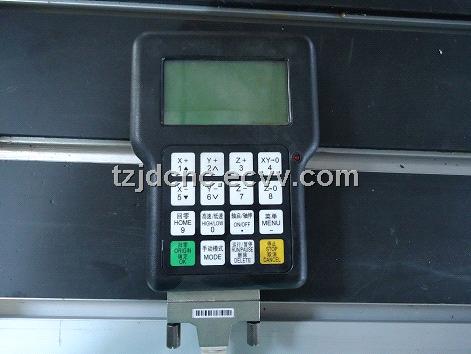

5- Machine picture
 ecaltvv

6- Sample picture

ecaltvvecaltvv
ecaltvv ecaltvv
