Shenzhen Xuwei Electronic Co., Ltd.
China Manufacturer with main products: All Kinds of Components, High Power Resistor, Fusing Resistor, Chip Resistor, All Kinds of Resistor, Resistor Machinery, Resistor Accessories... |
11th
High Quality Chip Resistor Supplier from Shenzhen China
| FOB Price: | 0.01 - 0.12 USD/Piece |
|---|---|
| Supply Ability: | 50,000,000 Piece/Pieces per Day |
| Shipping: | via International Express way as customer needed. |
| Payment Terms: | T/T, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | neutral or printing packing way as customer needed to packing |
Quick Details
- Operating Temperature: 100PPM---200PPM
- Rated Power: 1/16W---1W
- Resistance Tolerance: 1% 2% 5%
- Resistance: 1R-10MR and above or below
- Package Type: Throught Hole
- Technology: Thick Film
- Type: Fixed Resistor
- Model Number: XWP-154
- Brand Name: OEM
Specifications
High Quality Chip Resistor Supplier from Shenzhen China
smd chip resistor 0402 0603 0805 1206 1210 2010 2512
1,Style is your market
Used for power industry to protective circuit.
2,Selling point
1)Prompt delivery;

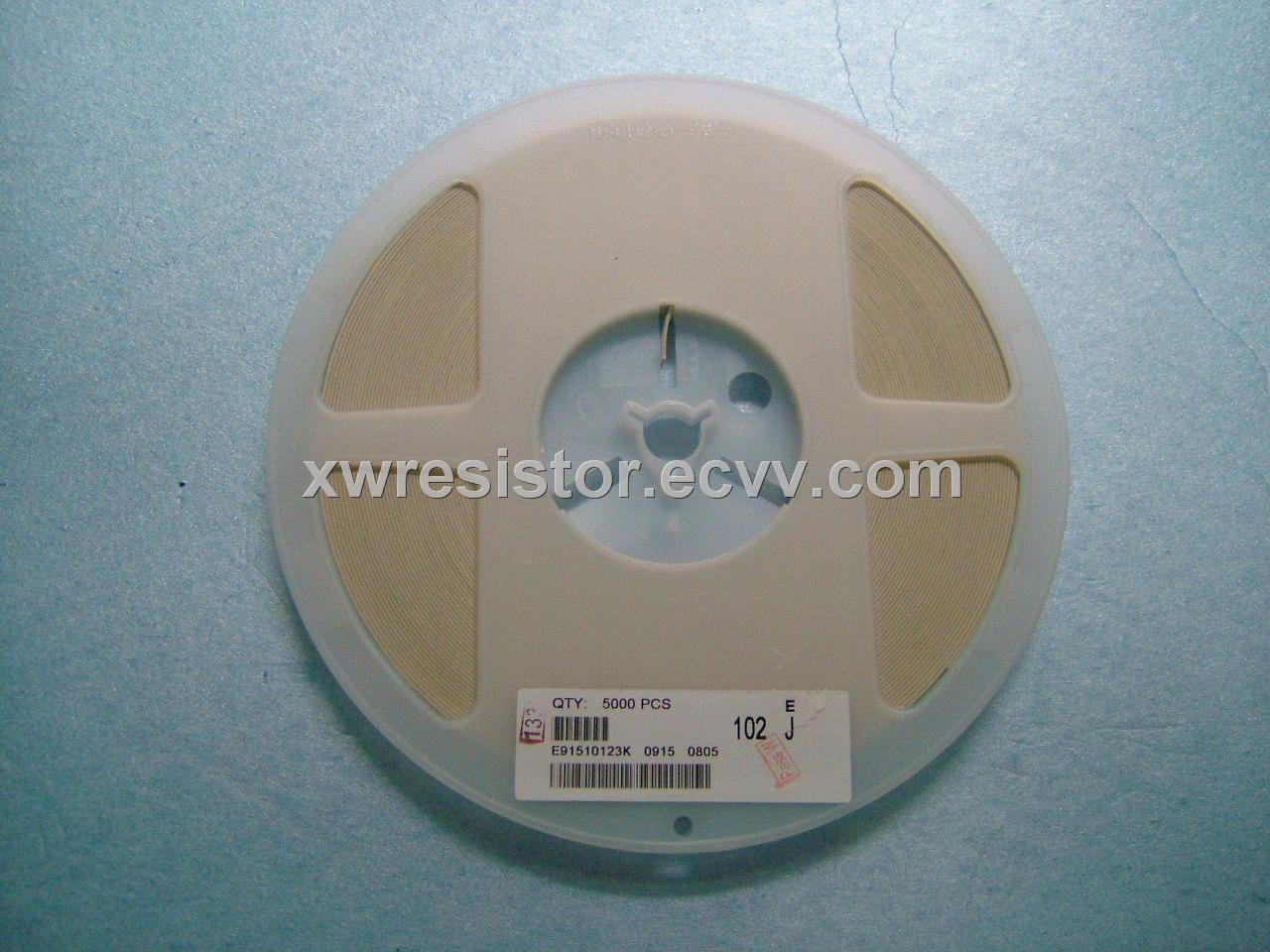

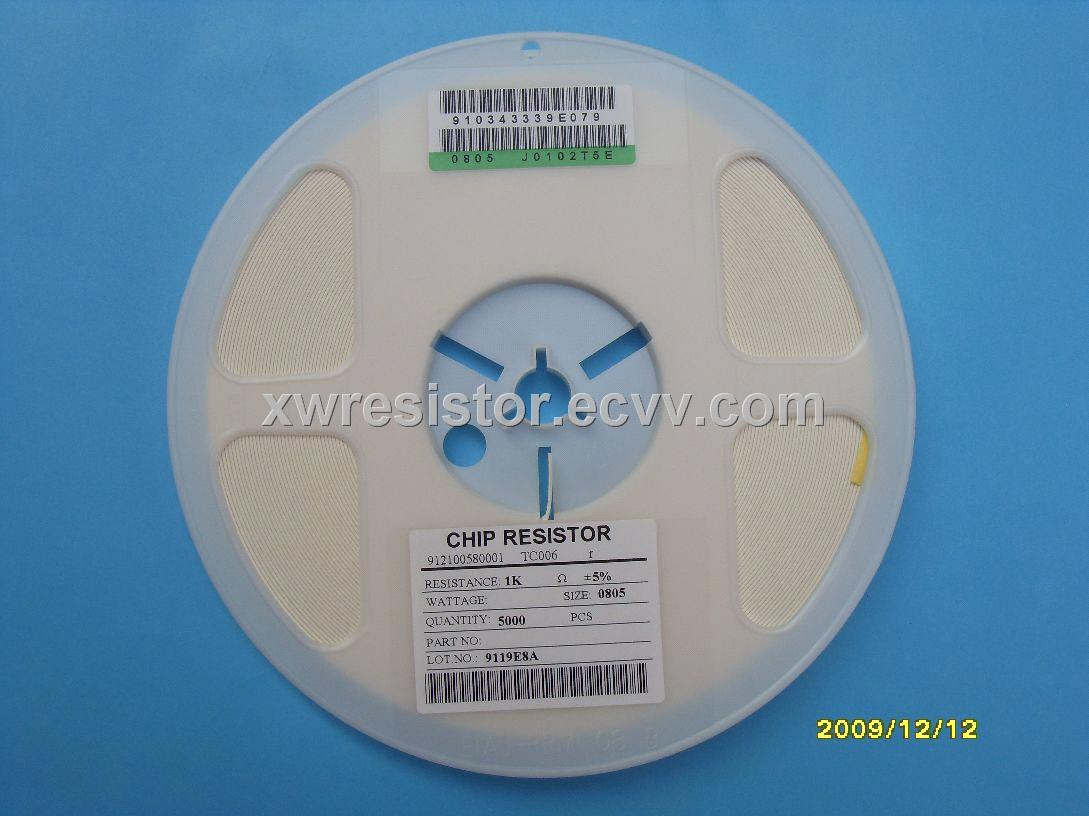

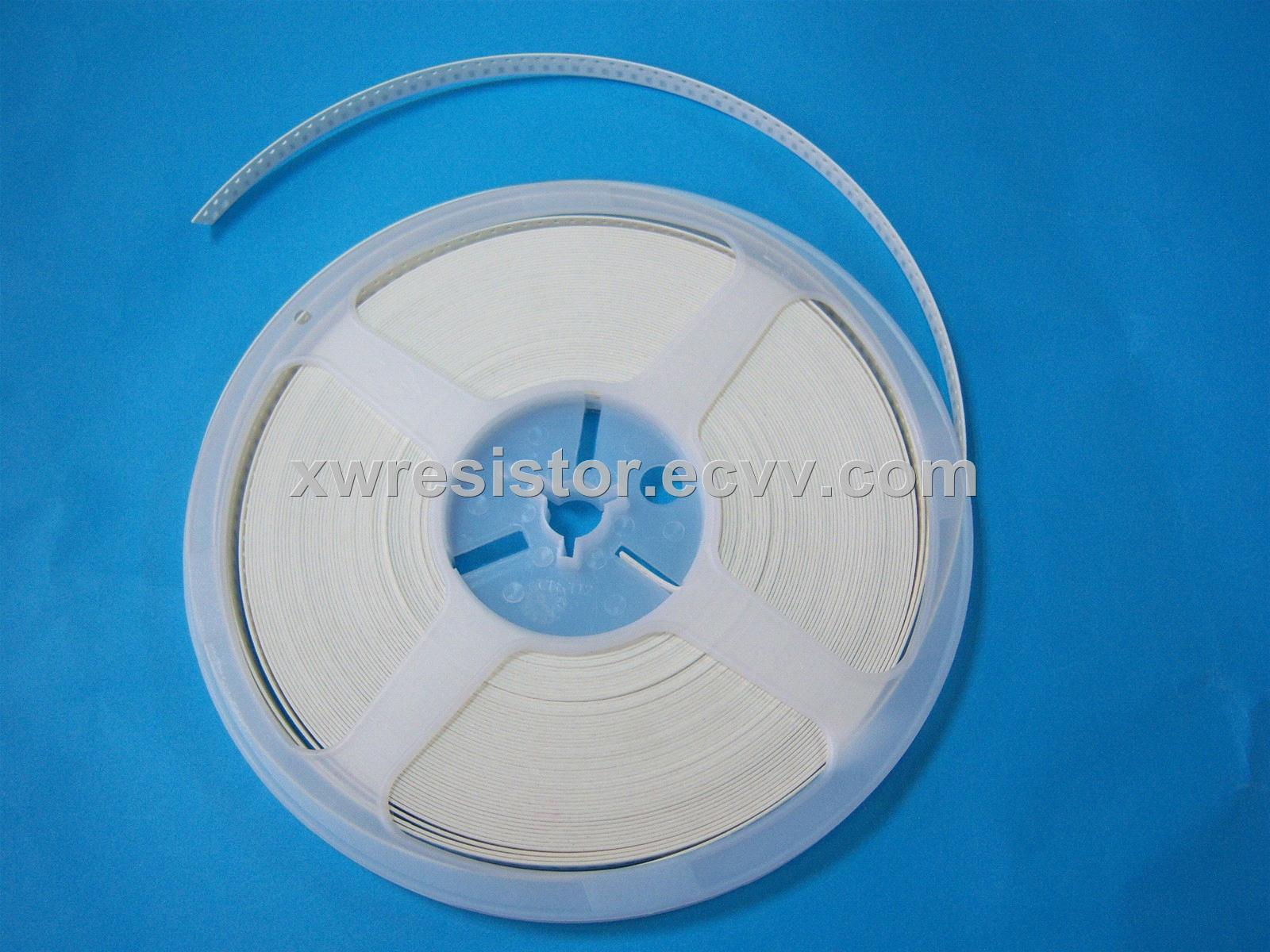

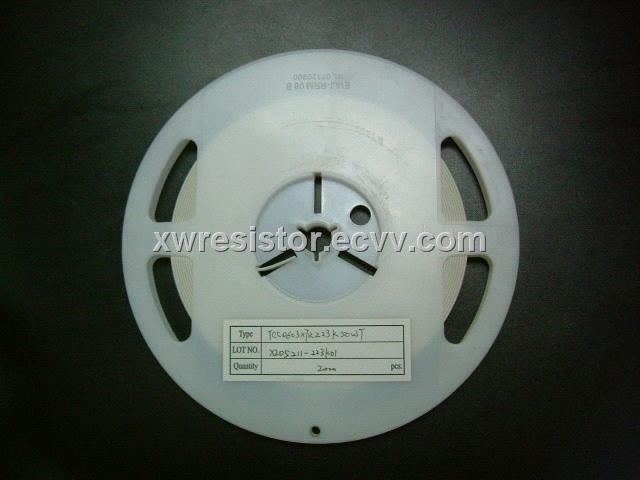

2)Variety of packing:bulk or tape in box;
3)Stable performance, extensive resistance, small size,high operating temperature and high ultimate voltage;
4)Factory direct price;
5)None forbidden.
3,Description
1)High quality;
2)Meet performance requirement of CNS 2320, JIS 6402;
3)Standard tolerance : 5%.( 1% Available );
4)OEM;
4, Function
To protective circuit.
5,Advantage
1)Factory direct price;
2)All materials & machines imported from Taiwan;
3)Rohs compliant & ISO9001(2008);
4)Prompt delivery;
5)None forbidden.
|
TYPE |
INCH |
RATED POWER |
L |
W |
H |
L1 |
L2 |
|
CR03 |
0603 |
1/10W |
1.6±0.1 |
0.85±0.1 |
0.4±0.05 |
0.3±0.2 |
0.2±0.2 |
|
CR05 |
0805 |
1/10W |
2.05±0.1 |
1.3±0.1 |
0.45±0.1 |
0.4±0.2 |
0.3±0.2 |
|
1/8W |
|||||||
|
CR06 |
1206 |
1/4W |
3.1±0.1 |
1.6±0.1 |
0.45±0.25 |
0.45±0.25 |
0.4±0.2 |
|
TYPE |
RATED POWER |
MAX.WORKING VOL.(V) |
MAX.INTERMITTENCE OVERLOAD VOL.(V) |
TOLERANCE |
RESISTANCE RANGE |
OPERATE TEMPERATURE(°C) |
|
1206 |
1/8W |
200 |
400 |
±1% |
50mΩ |
-55- +125 |
|
±2% |
10Ω-1MΩ |
|||||
|
±5% |
1Ω-10MΩ |
|||||
|
0805 |
1/10W |
150 |
300 |
±1% |
50mΩ |
-55- +125 |
|
±2% |
10Ω-1MΩ |
|||||
|
±5% |
1Ω-10MΩ |
|||||
|
0603 |
1/16W |
50 |
100 |
±1% |
50mΩ |
-55- +125 |
|
±2% |
10Ω-1MΩ |
|||||
|
±5% |
1Ω-10MΩ |
Attention:
Any question just leave a message we will handle it in time.
If there is any products you need please tell me the models and specific information of the products before you order it
