Shenzhen Xuwei Electronic Co., Ltd.
China Manufacturer with main products: All Kinds of Components, High Power Resistor, Fusing Resistor, Chip Resistor, All Kinds of Resistor, Resistor Machinery, Resistor Accessories... |
11th
Comparable Price Metal Film Resistor
| FOB Price: | 0.10 - 0.21 USD/Piece |
|---|---|
| Supply Ability: | 50,000,000 Piece/Pieces per Day |
| Shipping: | via International Express way as customer needed. |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | neutral or printing packing way as customer needed to packing |
Quick Details
- Operating Temperature: -55---+155
- Temperature Coefficient: 100PPM
- Rated Power: 1/4W---5W.1/2WS-5WS
- Resistance Tolerance: 1% 5%
- Resistance: 0.1R-1KR and above or below
- Package Type: T/B; P
- Technology: Metal Film
- Type: metal film resistor
- Model Number: XWP-273
- Brand Name: OEM
Specifications

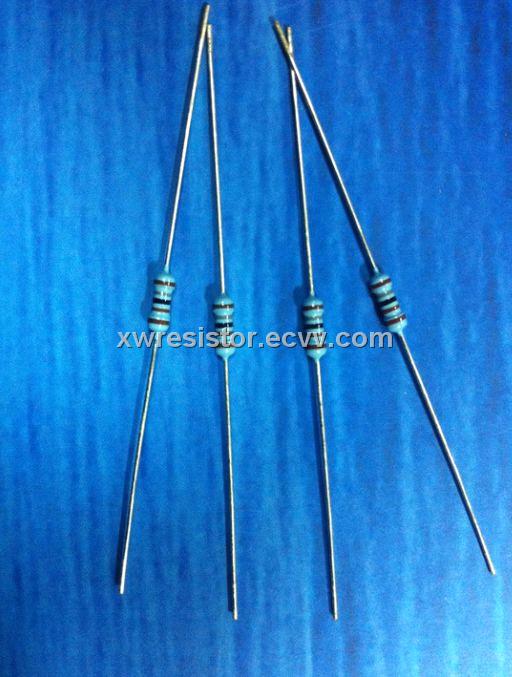

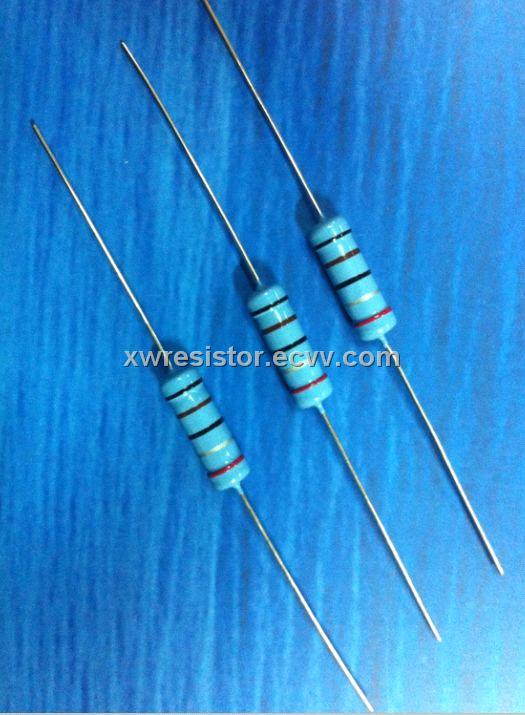

Comparable Price Metal Film Resistor
electronic component to protective circuit SGS RoHS
1,Style is your market
Used for power industry to protective circuit.
2,Selling point
1)Prompt delivery;

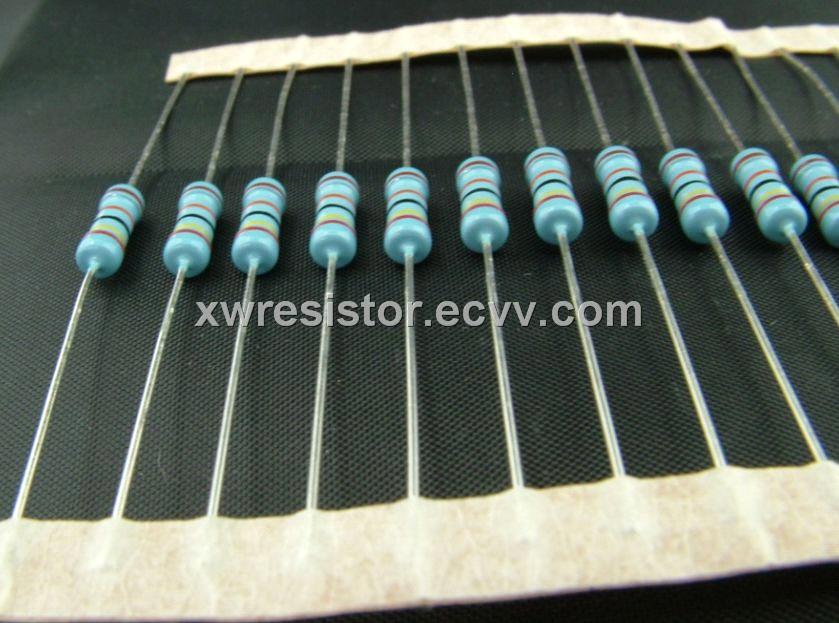

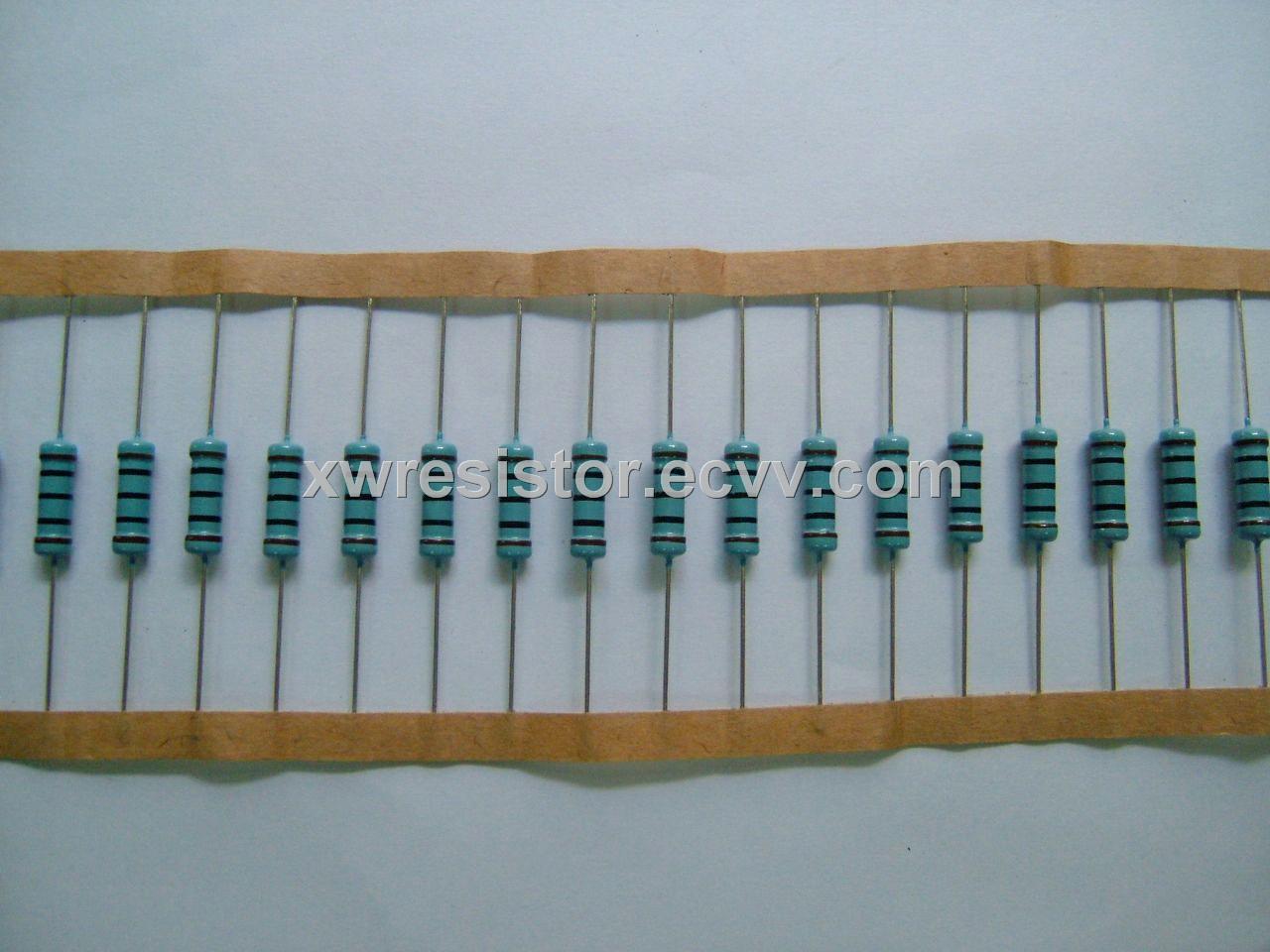

2)Variety of packing:bulk or tape in box;
3)Stable performance, extensive resistance, small size,high operating temperature and high ultimate voltage;
4)Factory direct price.
3,Description
1)High quality;
2)Meet performance requirement of CNS 2320, JIS 6402;
3)Standard tolerance : 5%.( 1% Available );
4)Ceramic core. (High conductivity);
5)Metal film. (High stability);
6)End cap (High reliability fitting by original cap-pressing method);
7)Epoxy resin (Insulative lacquer, solvent-proof);
8)Color code (Per MIL & EIA standards);
9)Lead wire (Excellent solderability);
10)OEM;
11)The normal size coating is yellow and the small size coating is pink.
4,Function
To protective circuit.
5,Advantage
1)Factory direct price;
2)All materials & machines imported from Taiwan;
3)Rohs compliant & ISO9001(2008);
4)Prompt delivery.
|
TYPE |
DIMENSION(mm) |
MAX. WORKING VOLTAGE(V) |
MAX. OVERLOAD VOLTAGE(V) |
INSULATION RESISTANCE TO VOLTAGE(V) |
RESISTANCE TOLERANCE |
RESISTANCE RANGE(OHM) |
||||
|
L ±1 |
D ±1 |
H ±1 |
d ±0.05 |
MIN. |
MAX. |
|||||
|
MF 1/8W,1/4WS |
3.5 |
1.7 |
28 |
0.43 |
150 |
300 |
300 |
F(±1%) |
1Ω |
10MΩ |
|
MF 1/4W,1/2WS |
6.5 |
2.3 |
26 |
0.5 |
250 |
500 |
500 |
F(±1%) |
1Ω |
10MΩ |
|
MF 1/2W, 1WS |
9.5 |
3.2 |
25 |
0.56 |
350 |
700 |
700 |
F(±1%) |
1Ω |
10MΩ |
|
MF 1W, 2WS |
12 |
4.5 |
31 |
0.75 |
500 |
800 |
1000 |
F(±1%) |
0.1Ω |
1MΩ |
|
MF 2W, 3WS |
16 |
5 |
33 |
0.75 |
500 |
1000 |
1000 |
F(±1%) |
0.1Ω |
1MΩ |
|
MF 3W, 5WS |
18 |
6 |
33 |
0.75 |
500 |
1000 |
1000 |
F(±1%) |
0.1Ω |
1MΩ |
Attention:
Any question just leave a message we will handle it in time.
If there is any products you need please tell me the models and specific information of the products before you order it.
