Inductive & Non-Inductive Wirewound Resistor

FOB Price:	0.23 - 0.58 USD/Piece
Supply Ability:	50,000,000 Piece/Pieces per Day
Shipping:	via International Express way as customer needed.
Payment Terms:	T/T, MoneyGram

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	neutral or printing packing way as customer needed to packing

Quick Details

ecaltvv

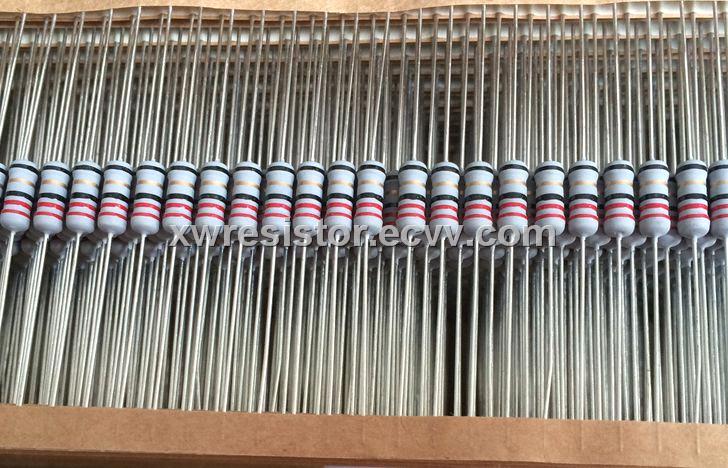

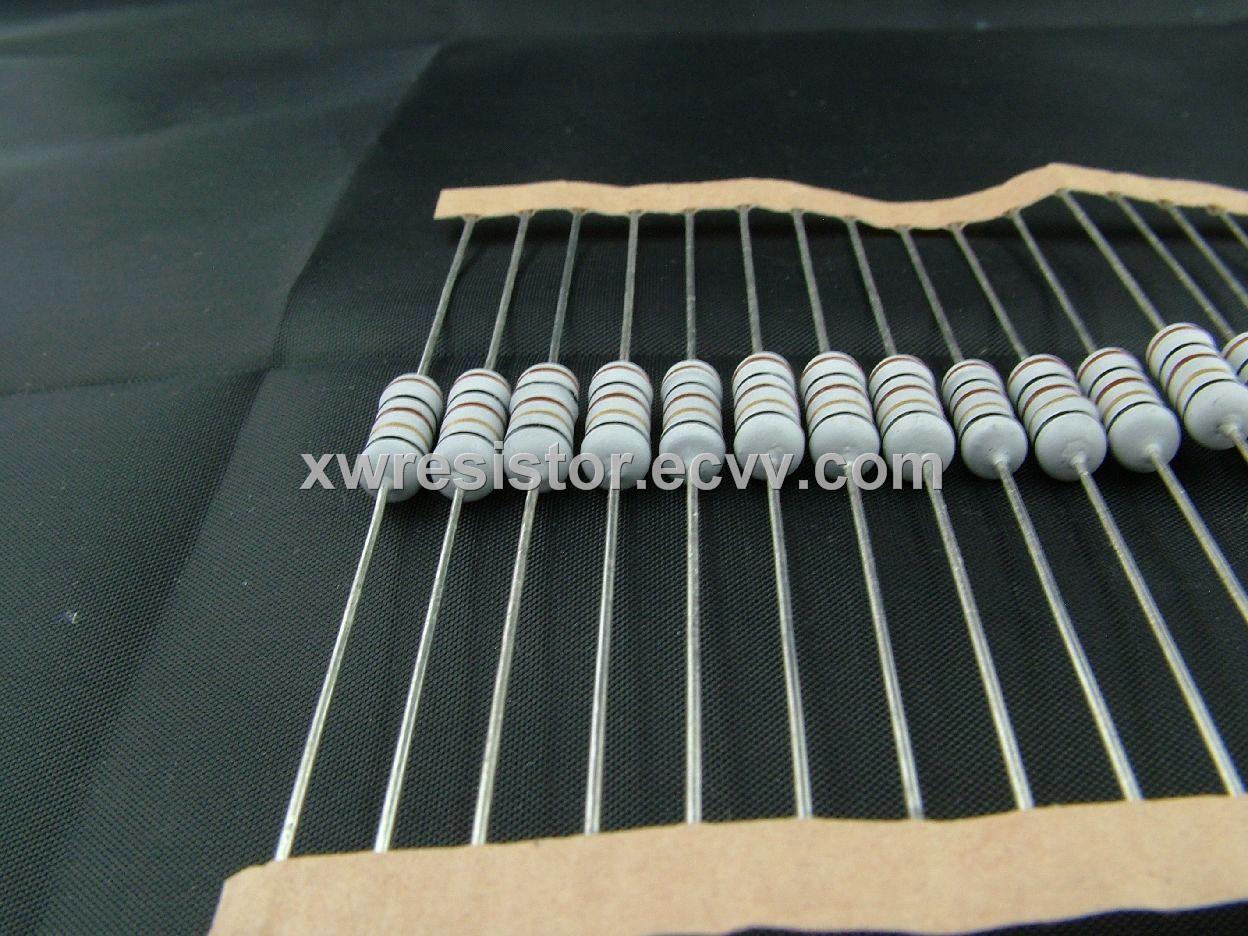

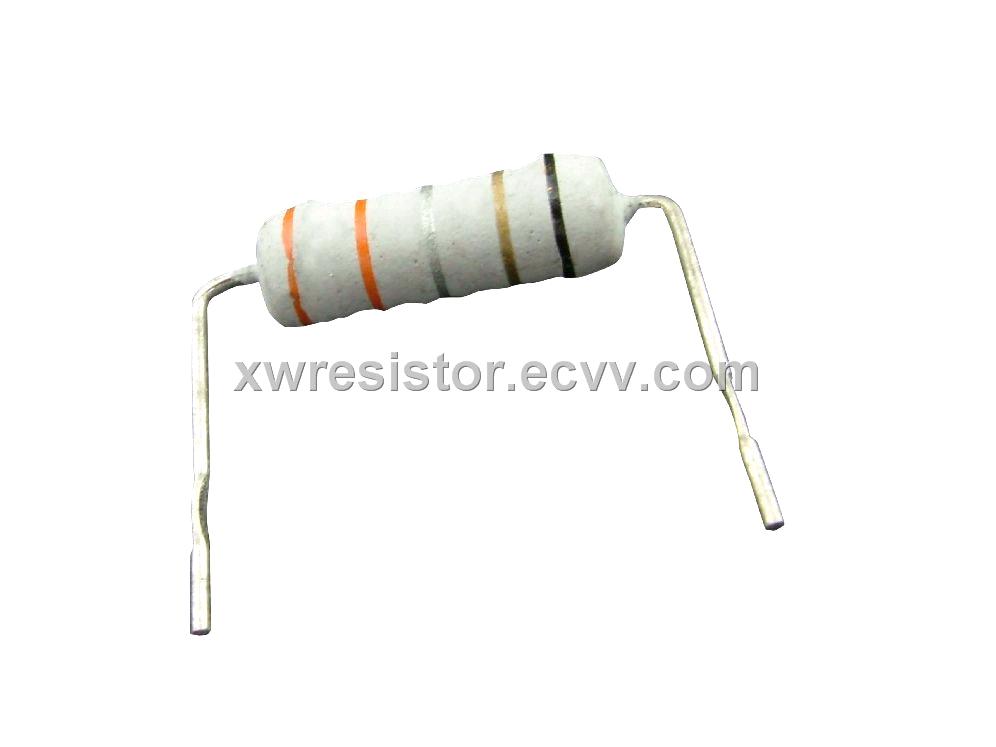

Inductive & Non-Inductive Wirewound Resistor
PCB-specific fuse resistor UL

Wire Wound Resistor(KNP) for use in consumer electronics , computer . telecommunication equipments...etc

1,Style is your market

Used for power industry to protective circuit.

2,Selling point

1)Prompt delivery;

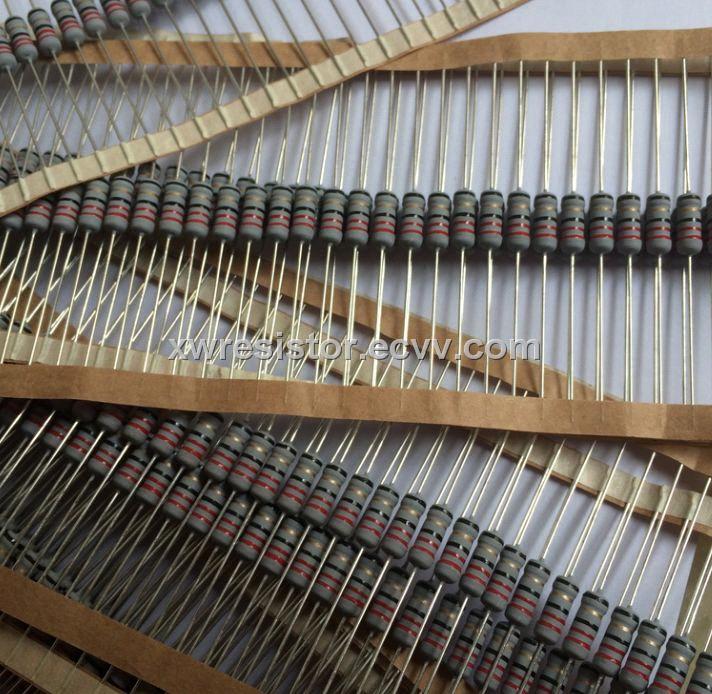

2)Variety of packing:bulk or tape in box;

3)Stable performance, extensive resistance, small size,high operating temperature and high ultimate voltage;

4)Factory direct price;

5)None forbidden.

3,Description

1)High quality;

2)Meet performance requirement of CNS 2320, JIS 6402;

3)Standard tolerance : 5%.( 1% Available );

4)Ceramic core. (High conductivity);

5)Mtal film. (High stability);

6)End cap (High reliability fitting by original cap-pressing method);

7)Epoxy resin (Insulative lacquer, solvent-proof);

8)Color code (Per MIL & EIA standards);

9)Lead wire (Excellent solderability);

10)OEM;

11)The normal size coating is yellow and the small size coating is pink.

4,Function

To protective circuit.

5,Advantage

1)Factory direct price;

2)All materials & machines imported from Taiwan;

3)Rohs compliant & ISO9001(2008);

4)Prompt delivery;

5)None forbidden.

TYPE	DIMENSION(mm)				MAX. WORKING VOLTAGE(V)	MAX. OVERLOAD VOLTAGE(V)	INSULATION RESISTANCE TO VOLTAGE(V)	RESISTANCE TOLERANCE	RESISTANCE RANGE(OHM)
TYPE	L ±1	D ±1	H ±1	d±0.05	MAX. WORKING VOLTAGE(V)	MAX. OVERLOAD VOLTAGE(V)	INSULATION RESISTANCE TO VOLTAGE(V)	RESISTANCE TOLERANCE	MIN.	MAX.
FUSE 1/4W,1/2WS	6.5	2.3	26	0.5	150	3times of rated voltage	250	J(±5%)	0.1Ω	1KΩ
FUSE 1/2W, 1WS	9.5	3.2	25	0.56	250	3times of rated voltage	300	J(±5%)	0.1Ω	1KΩ
FUSE 1W, 2WS	12	4.5	31	0.75	250	3times of rated voltage	350	J(±5%)	0.1Ω	1KΩ
FUSE 2W, 3WS	16	5	33	0.75	250	3times of rated voltage	350	J(±5%)	0.1Ω	1KΩ
FUSE 3W, 5WS	18	6	33	0.75	300	3times of rated voltage	350	J(±5%)	0.1Ω	1KΩ
