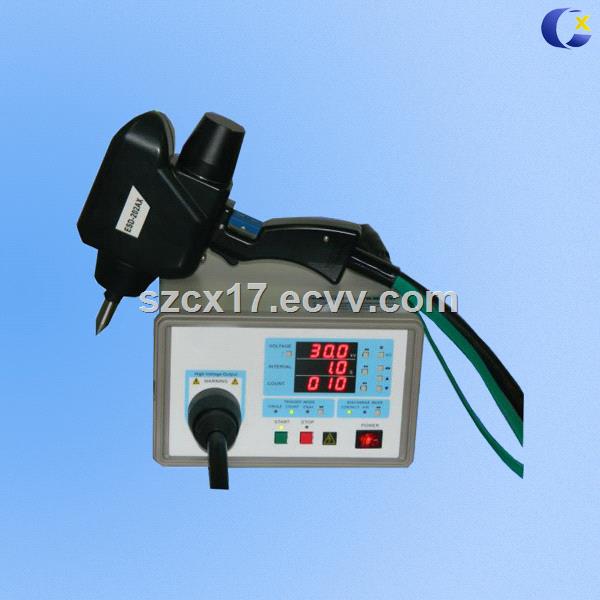

IEC61000-4-2 20KV 30KV electrostatic discharge generator ESD EMC tester
| FOB Price: | 1.00 - 4,600.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set/Sets per Month |
| Shipping: | within 7 days receipt payment |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | standard packing |
Quick Details
- Usage: ESD tester
- Power: Electronic
- Model Number: ESD-202AX
- Brand Name: CX
- Items Name: electrostatic discharge generator
- Output Voltage: 0.1~20kv /30KV
- Polarity: Positive/Negative
- Warranty: 1 year
Specifications
IEC61000-4-2 20KV 30KV electrostatic discharge generator ESD EMC tester
ESD simulator is in full compliance with IEC 61000-4-2, EN61000-4-2, ISO10605, GB/T17626.2, GB/T17215.301 and GB/T17215.322. The ESD generator is designed for the assessment of electrical and electronic equipment to withstand ESD performance
Product Model
ESD-202AX
ESD-203AX
Output Voltage
0.1~20kV±3% 0.1~20kV±3%
Polarity
Positive/Negative
Energy Storage Capacitance
150pF±10% (Replaceable)
Discharge Resistor
330Ω±5% (Replaceable)
Current Rise Time
0.6~1ns
Testing Functions
Single, Count, 20pps, Air, Contact, IEC level
Trigger Mode
Host rising automatically trigger, voltage scanning
counter
0~999 (for discharge count)
Discharge interval
0.05s)0.1~9.9s (when 20pps mode, the discharge interval of 0.05s)
Air-gap discharge voltage holding time
More than 5 seconds
Use environment
Ambient temperature: 10 c ~35 c humidity: 30%~60%
Working Power
AC85~265V,50/60Hz
