Home >Products Catalog > EMC Tester > IEC61000-4-5 0-6KV Lightning Surge Tester Surge Generator

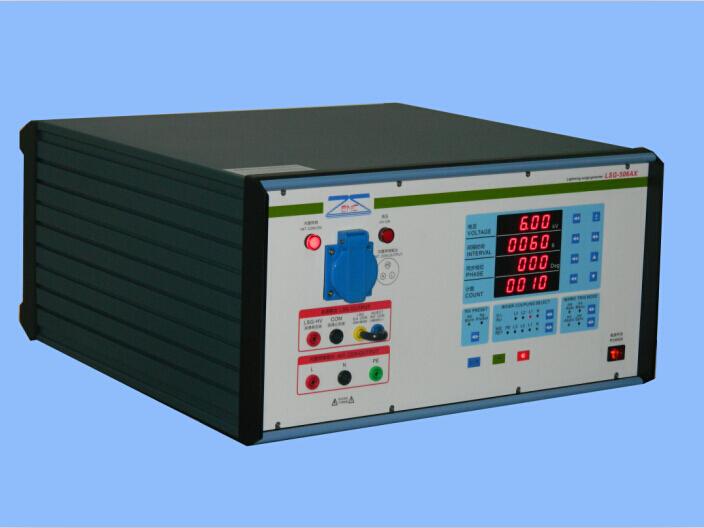

IEC61000-4-5 0-6KV Lightning Surge Tester Surge Generator

FOB Price:	1.00 - 5,000.00 USD/Set
Supply Ability:	1,000 Set/Sets per Month
Shipping:	within 7 days receipt payment
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	standard packing

Quick Details

Usage: According to the standard
Power: Electronic
Model Number: 506AX
Brand Name: CX
Items Name: surge generator
Polarity: Negative or Positive
Surge injection phase: 0-360
Surge Trigger mode: Manual/Auto
Surge inteval: 20~9999s
Surge count: 1~9999
Working Power: AC220V 50/60Hz

Specifications

IEC61000-4-5 0-6KV lightning surge tester surge generator

Automatic lightning surge generator (or Lightning surge immunity) is used to assess the power cord and connect the internal switch stood in line to connect the internal switch to provide a common basis for switching the natural world and lightning caused by the high-energy transient interference performance. Performance fully meets the , EN61000-4-5 and GB/T17626.5 standards.

Specification:

Output voltage	0~6000V ±5%
Output voltage waveform	1.2/50uS / (10/700uS)
Output current waveform	8/20uS / (5/320uS)
Polarity	Negative or Positive
Output impedance	2Ω / 12Ω /15 Ω . 40 Ω
Surge Trigger mode	Synchronism/Asynchronism
Surge injection phase	0-360 °
Surge Trigger mode	Manual/Auto
Surge inteval	20~9999s
Surge count	1~9999
Testing functions	Set test mode freely or IEC Level
Working Power	AC220V ±10%, 50/60Hz
