Voltage Dips and Short Interruption Generator

FOB Price:	1.00 - 9,000.00 USD/Set
Supply Ability:	100 Set/Sets per Month
Shipping:	By sea, air, express
Payment Terms:	T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	wooden case

Quick Details

Usage: EMC Test
Power: Electronic
Model Number: VDS-1120DX
Brand Name: Chuangxin

Specifications

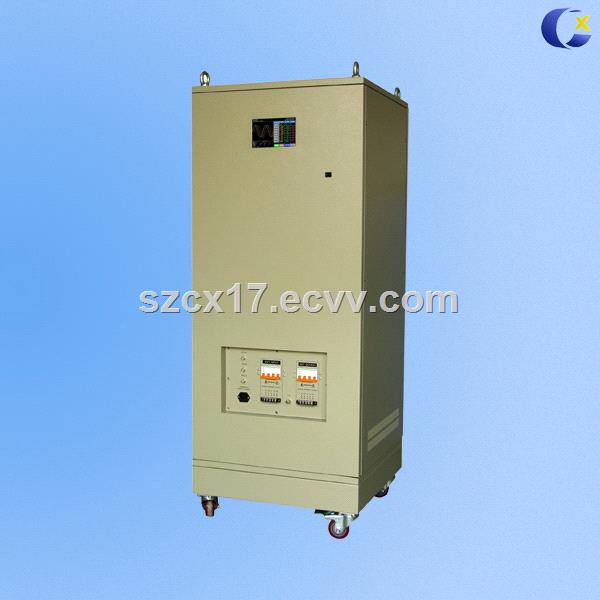

VDS-1120DX Voltage Dips and Short Interruption Generator

Voltage dips and short interruption generator is designed to simulate voltage dips, short interruption and voltage variations. The generator is completely met the requirements of IEC61000-4-11 and GB/T17626.11. It is widely apply to all kinds of electronic equipment.

Standard: IEC61000-4-11. GB/T17626.11

Parameters:

Loading Capacity	Single Phase 220V 20A
Voltage Dips	0~265V ±10% (1Vset)
Nominal Voltage	90~265V ±10% (1set)
Dip Phase Set	0~359°(1°step)
IEC Standard Test Voltage	Dip voltage: 0%, 40%, 70%, 120% UT
Durations for Voltage Dip	0001~9999 cycles (1 cycle step)
Dip Cycles	0001~9999 cycles (1 cycle step)
Environment	Temperature: 10℃-35℃ Relative Humidity: 30%-60%
Weight	About 100KG
