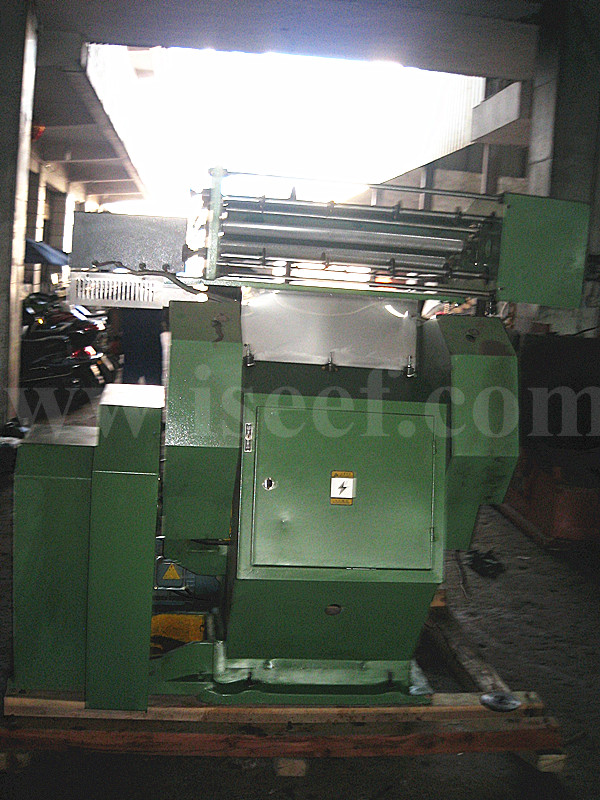

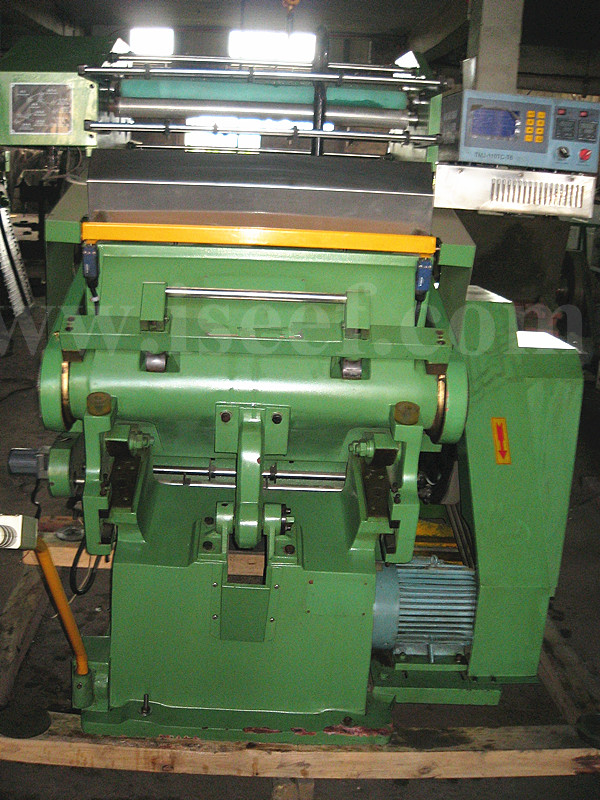

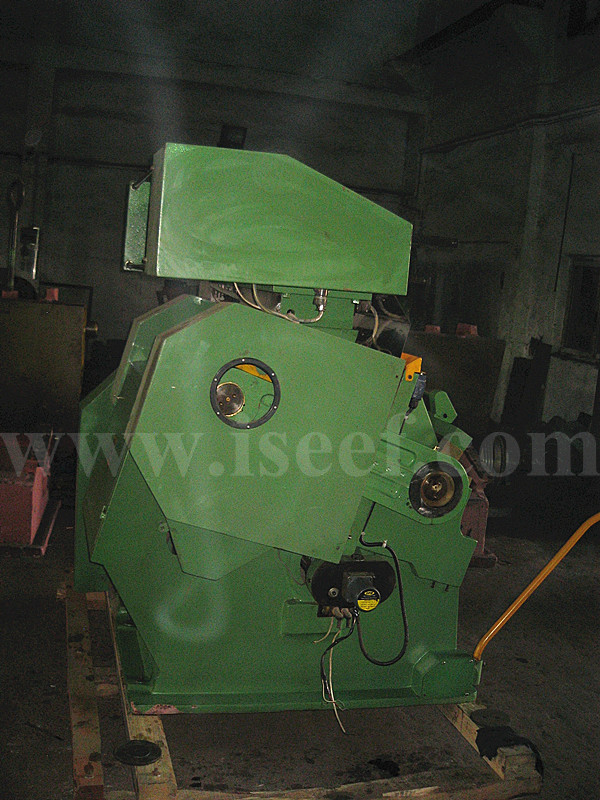

Hot stamping and die cutting machine (one station)

Shipping:	30% advance payment be paid by TT, balance paymen shall be paid before shipment
Payment Terms:	L/C, T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Standard export package

Quick Details

Type: Gluing Machine
Weight: 1700kgs
Dimension(L*W*H): 1400*1690*1790mm
Power: 4.5kw
Voltage: 380V/50HZ/3 PHASE (the voltage can change with surcharge)
Condition: New

Specifications

Description:

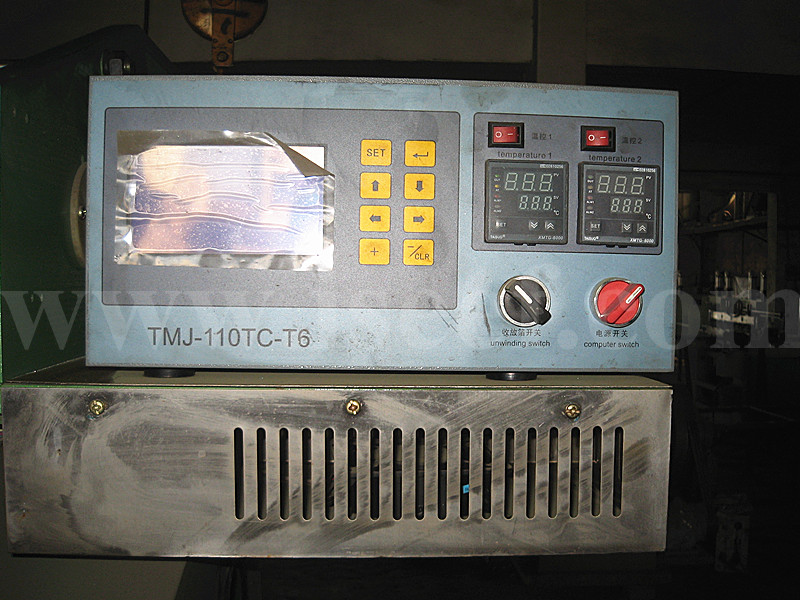

This machine is a kind of special equipment used for thermo-printing and creasing various products, such as cardboard, leather and plastic etc. It is suitable for thermo-printing various paper products with electrochemical aluminum and also used as a creasing and cutting machine for mould cutting and creasing cardboard cases and boxes. Concave- convex thermo- printing of various high-grade and fine printed products can also be conducted on this machine for obtaining stereoscopic exquisite and beautiful packing and decorating products. The machine is controlled by a chip microprocessor, with the foil-feeding rubber roller of electrochemical aluminum driven by the separately set length and leapfrog parameters to make the most effective using of electrochemical aluminum. The purpose of this model is to ensure that the system runs stably and reliably so that the machine can be maintained by anybody.

Main technical parameters:

Model & Size	TYMK-750
Effective area of flat plate for die cutting	750×500mm
Max. Area of hot stamping plate	650×460mm
Total electro thermal power	4.5kw
Adjustable range of temperature	1-199℃
Continuous stamping speed	25(Storkes/min)
Common foil feeding	1-460mm
Times of skip	1-99
Resolution of foil feeding	1mm
Motor power	2.2kw/4(Serise)
Machine's weight	1700kgs
Packaging size(L×W×H)	1400×1690×1790mm
