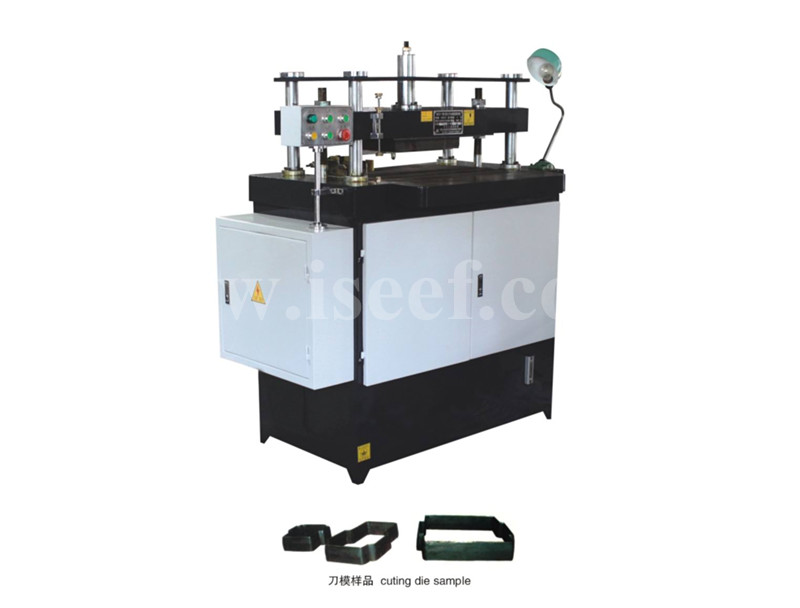

HYDRAULIC DIE CUTTER (large platform) Model MQY-760

Shipping:	30% advance payment be paid by TT, balance paymen shall be paid before shipment
Payment Terms:	L/C, T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Standard export package

Quick Details

Type: Other
Dimension(L*W*H): 1300*800*1500mm
Weight: 1200kgs
Power: 4 kw
Voltage: 380V/50HZ/3 PHASE (the voltage can change with surcharge)
Packaging Material: Wood,PLYWOOD
Condition: New

Specifications

MAIN STRUCTURE FEATURES

MQY-760 type large platform hydraulic module cutter is acutting equipment developed for moulding envelope paper, suitable to processing and module cutting for paper sheet, cardboard, plastic film, leather, etc.

The prominent features is of convenient adjusting, simple operating, which is applicable to mass production ofr little batch of various kinds.spacious working platform, strong cutting pressure, four-dimensional foot type steady structure, prompt lift controlling and automatic material return of high efficiency and labor saving.

TECHNICAL PARAMETER

Max.working pressure	20Mpa
Max. working speed	20000 pcs/h
Max. lift of plunger	80mm
Motor power	4 kw
Machine weight	1200kgs
External dimension(LWH)	13008001500mm
