Iseef Enterprise Inc
China Manufacturer with main products: Lamination Machine, Embossing Machine, RAM Punching Machine, Pad Gluing Machine, BOPP Flim, Envelop Making Machine, Sticky Memo Pad, Knife... |
10th

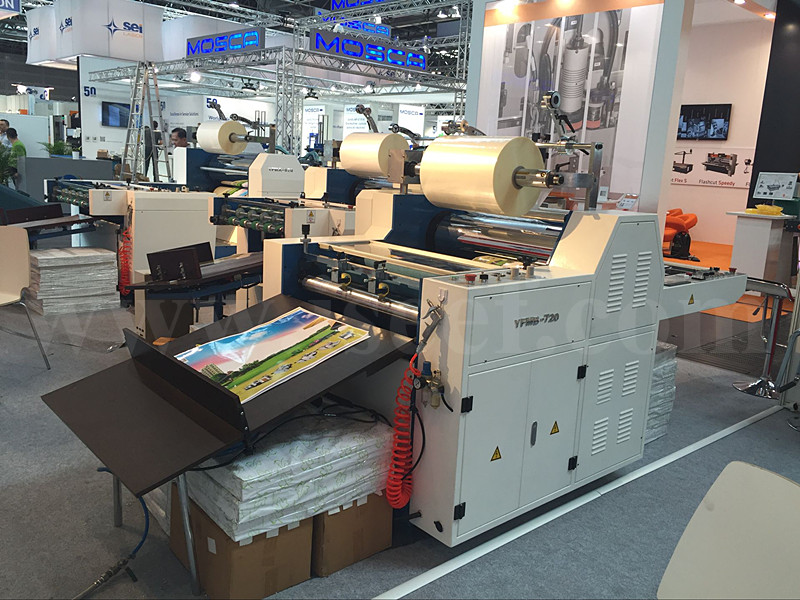

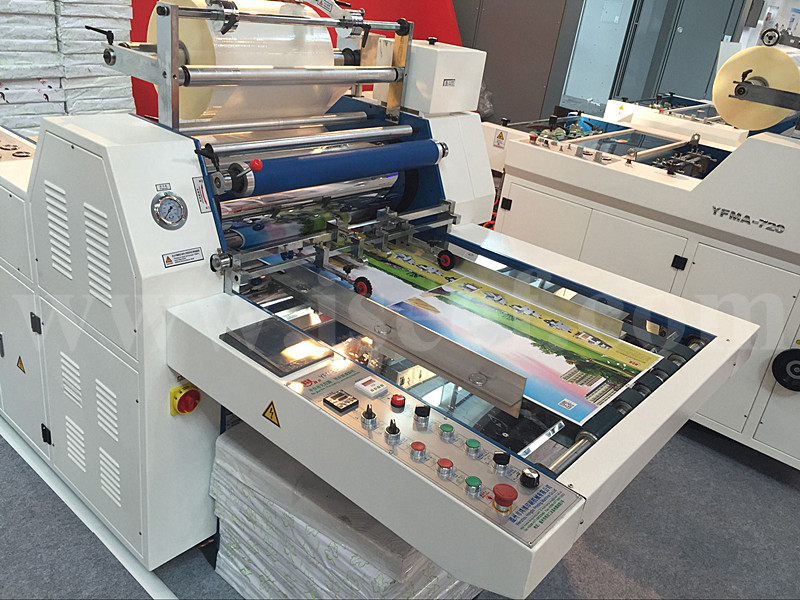

Semi Auto Sheet Thermal Lamination Machine Model YFMB
| Shipping: | 30% advance payment be paid by TT, balance paymen shall be paid before shipment |
|---|---|
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | standard export package by sea |
Quick Details
- Type: Laminating Machine
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE
- Weight: depends on machine size
- Dimension(L*W*H): depends on machine size
- Power: depends on machine size
- Voltage: 380V/50HZ/3 PHASE (the voltage can change with surcharge)
- Driven Type: Hydraulic
- Automatic Grade: Semi-Automatic
- Packaging Material: Plywood
- Application: Machinery & Hardware
- Condition: New
Specifications
Features:
YFMB series of semi-auto laminating machine is a competitive laminator which is designed and manufactured elaborately based on the combination of advanced technology of the international similar products and the manufacturing experience of about 30 years. It is of high technical content, excellent quality and original appearance.

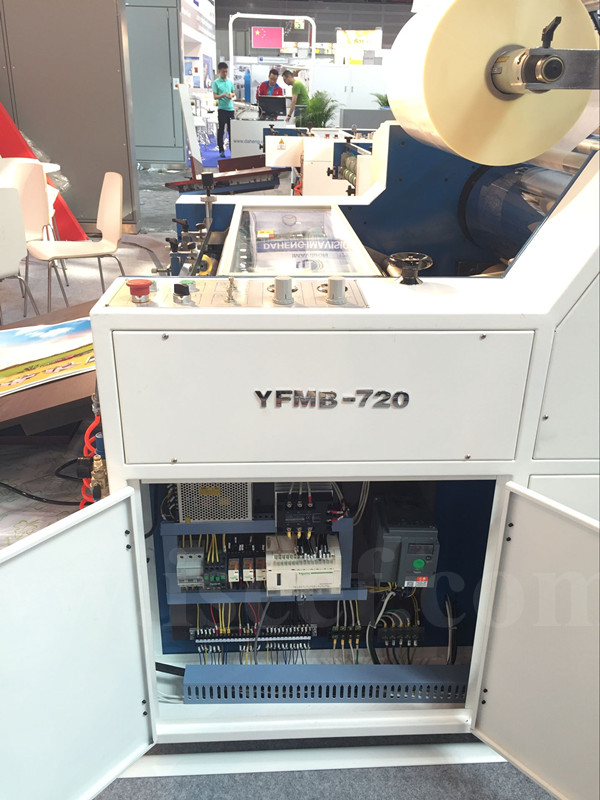

This machine is a kind of dual-function product which is for both pre-glued and glueless film. It is of compact structure, easy operation and high degree of automatization. All the main components adopt the international noted brands. The electrical and pneumatic devices are controlled by PLC system, and can be operated by only one person. The operator can realize both laminating and separating processes at the same time as long as the size of workable paper is input on the text screen
|
Model |
YFMB-520 |
YFMB-720 |
YFMB-920 |
YFMB-1100 |
|
Max Laminating Width |
500mm |
680mm |
880mm |
1040mm |
|
Paper gsm |
105-450gsm |
105-450gsm |
105-450gsm |
105-450gsm |
|
Laminating Speed |
0-30m/min |
0-30m/min |
0-30m/min |
0-30m/min |
|
Laminating Temperature |
≤130℃ |
≤130℃ |
≤130℃ |
≤130℃ |
|
Gross Power |
11kw |
13kw |
15kw |
16kw |
|
Total Weight |
800kg |
900kg |
1000kg |
1100kg |
|
Dimensions (mm) |
2200x1300x1300 |
2200x1500x1300 |
2200x1700x1300 |
2200x1900x1300 |
