Home >Products Catalog > High Speed Automatic Corrugated Folder Gluer Model BSH-II Series

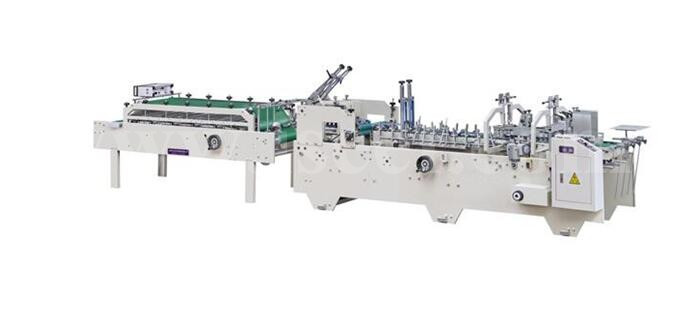

High Speed Automatic Corrugated Folder Gluer Model BSH-II Series

Shipping:	30% advance payment be paid by TT, balance paymen shall be paid before shipment
Payment Terms:	L/C, T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	standard export package by sea

Quick Details

Type: Gluing Machine
Certification: CE
Weight: depends on machine size
Dimension(L*W*H): depends on machine size
Voltage: 380V/50HZ/3 PHASE (the voltage can change with surcharge)
Automatic Grade: Automatic
Application: Machinery & Hardware
Condition: New

Specifications

Product brief introduction
Folder gluing machine Model BSH series paste box machine possesses a fairly high stability, strong universality, wide application and flexible and convenient debugging. It's widely used for paste manufacturing process in medicine box, wine box and cultural articles box etc.

Major technical parameter

Style	(A-max)	(A-min)	(B-max)	(B-min)	(C-min)	(D-min)	(E-min)
BSH-800	700mm	70mm	620mm	110mm	8mm	70mm	51mm
BSH-1200	700mm	70mm	840mm	110mm	8mm	70mm	51mm

Characteristics

Linear velocity	0～220m/min
Suitable paper quality	210～800g／m2 Card-paper
Paste box basic form	One-side edge pastes, two-side edge pastes.
Feeding way	Automatically and continuously feeding
Adhesive	Solute type
Needed power	220V 2.2KW
Weight	1200KG
Overall Size	5500x900x1300mm 5500x1200x1300mm
The scope of Count	0～999999
