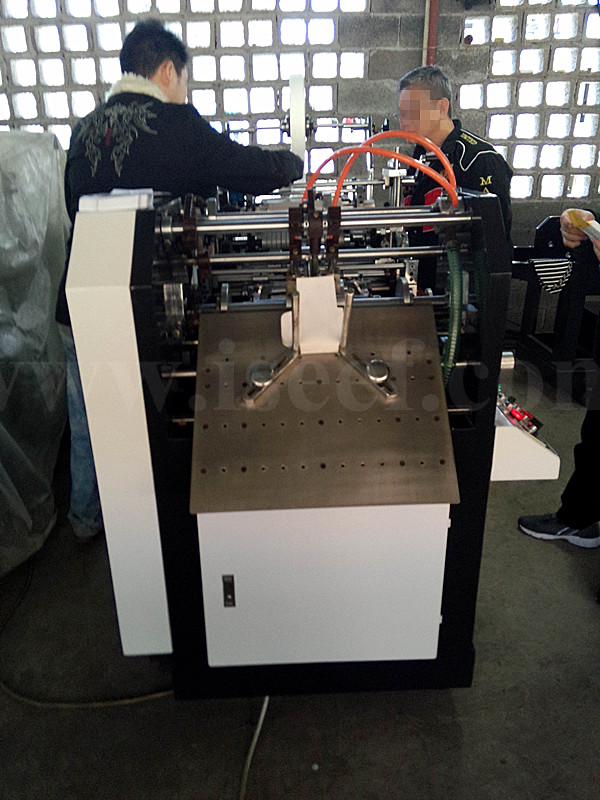

Window Film Sticky Machine Model TM-200

Shipping:	30% advance payment be paid by TT, balance paymen shall be paid before shipment
Payment Terms:	L/C, T/T, Western Union

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	standard export package by sea

Quick Details

Type: Other
Dimension(L*W*H): 2200*940*1400mm
Weight: 1100kgs
Power: 4.5kw
Voltage: 380V/50HZ/3 PHASE (the voltage can change with surcharge)
Packaging Material: PLYWOOD or Iron shelf
Application: Machinery & Hardware
Condition: New

Specifications

MAIN STRUCTURE FEATURES

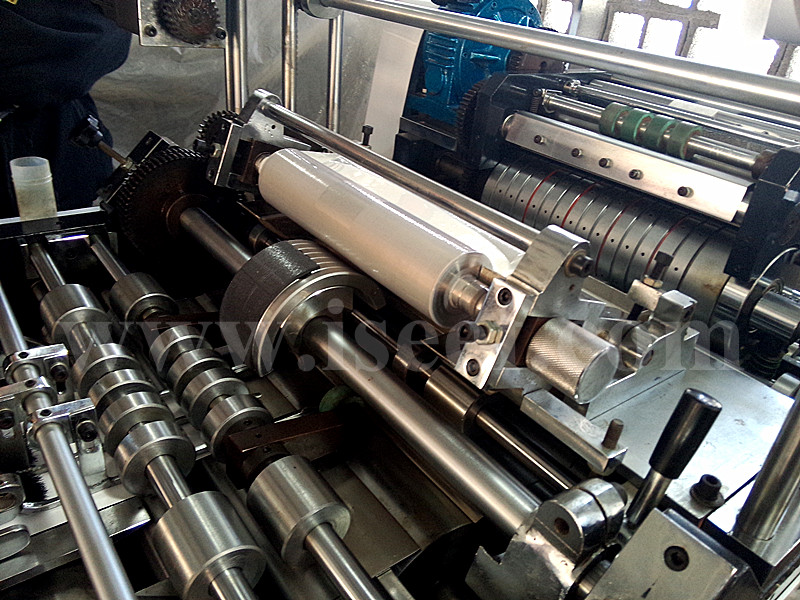

Air suction bottom paper-extracting is available to supply paper constantly without a pause and improve the efficiency. Camthree-spot paper supplying is steady and reliable. High-accuracy paper setting systems assure the quality. Rotary pasting ensure coating averagely. Stepless adjusting window film-sticking length, convenient and reliable.

TECHNICAL PARAMETER

Max working velocity	10000pcs/h
Applicable paper ration	70-157 g/m²
Window dimension range	30150 -50200mm
Film thickness	0.05-0.2mm
Motor power	1.5kw
Air pump power	3.0 kw
Machine weight	1100kgs
External dimension(LWH)	22009401400mm
