Automatic Laminating Machine Model YFMA-560L/720L/920L/1100L

Payment Terms:	T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Type: Laminating Machine
Automatic Grade: Automatic
Packaging Material: Wood
Packaging Type: Cartons
Application: Machinery & Hardware
Condition: New
After-sales Service Provided: Engineers available to service machinery overseas

Specifications

Features

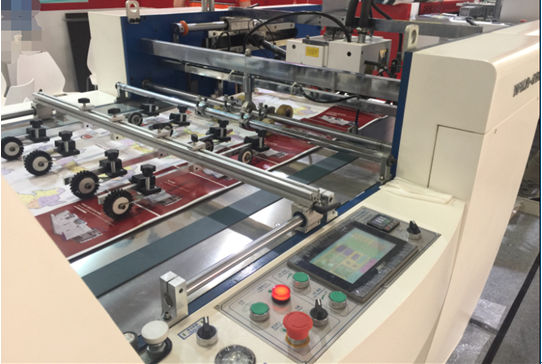

YFMA-L series fully automatic laminators are our newly designed thermal film lamination machines. this lamination machine is composed of feeding system, laminating system, cutting system, paper collecting and rewinding system. The electric and pneumatic devices are controlled by programmable control (PLC) system. and the operator can operate the machine easily by touch screen. Heating roll adopts built-in heating system which has excellent heating remaining property to stabilize laminating temperature and make it more precise. this machine centralizes the features of compact structure, high automation and humanized operation design, is an excellent choice for large and medium-size enterprises.

Main Technical Specification

Model	YFMA-560L	YFMA-720L	YFMA-920L	YFMA-1100L
Max laminating size(W*L)	560*820mm	680*940mm	889*940mm	1050*1200mm
Min laminating size (W*L)	210*260mm	210*260mm	210*260mm	300*300mm
Paper thickness	105-500gsm	105-500gsm	105-500gsm	105-500gsm
Max. Film roll diameter	300mm	300mm	300mm	300mm
Total power	20kw(380V AC3 50/60HZ)	24kw(380V AC3 50/60HZ)	24kw(380V AC3 50/60HZ)	26kw(380V AC3 50/60HZ)
Laminating speed	5-60m/min	5-60m/min	5-60m/min	5-60m/min
Dimension	480014501750mm	510015501750mm	532017501750mm	610019501750mm
Machine Weight	1600kgs	1800kgs	2000kgs	2200kgs
