Energy Consumption Three Phase Electricity Volt Ampere Watt Meter

Inquiry Now

Product Details

Quick Details

Dimensions: 90*72mm
Accuracy Class: 1%(Optional 0.5s)
Phase: Single Phase and There Phase
Display Type: Digital Only
Brand Name: Elecnova

Specifications

Basic Info.

Model NO.

DDS1946-L4

Power Meter Connection

Terminal

Measured Signal

Pulse Peak

Type

Power Meter

Certification

ISO, CE

Customized

Phase

Single Phase

Measuring Energy Range

0-9999

Accuracy Class

1%(Optional 0.5s)

Output Voltage

230V

Operating Temperature

-10~+55C

Frequency

45-65Hz

Rated Current

AC 5(40)a

Communication

RS-485

IP Degree

Front IP51

Storage Temperature

-25C~70C

Standard

IEC-62053

Specification

90*72mm

Trademark

LINFEE

Origin

China

HS Code

9030809090

Production Capacity

20000PCS/Per Month

Product Description

Product Name: Energy consumption three phase electricity volt ampere watt meter

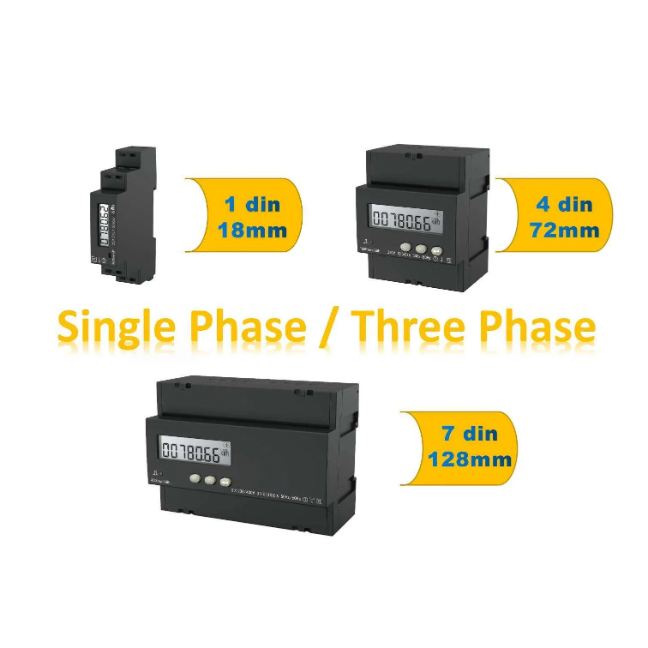

the rail-mounted meter uses an modular design, which has the advantages of small size, easy installation, and easy networking.It is easy to achieve terminal lighting energy measurement,and it is convenient to retrofit the lighting system with an electric meter.

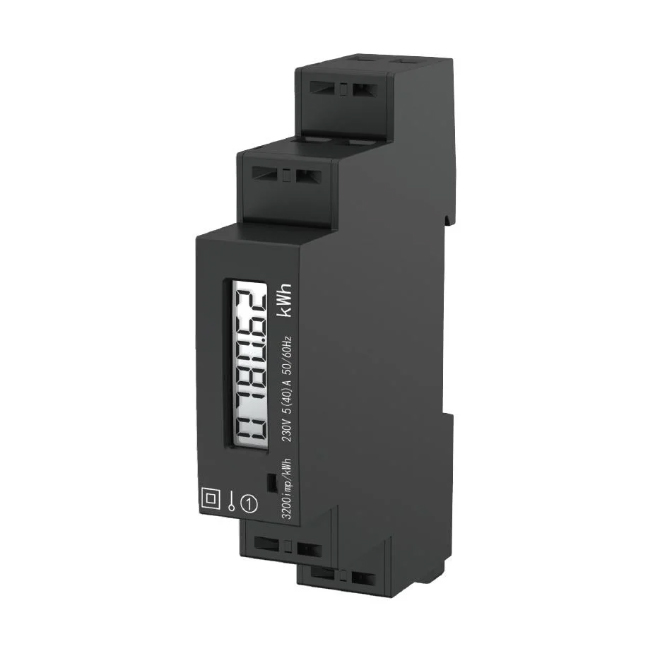

Energy Consumption Three Phase Electricity Volt Ampere Watt Meter

Technical Specifications

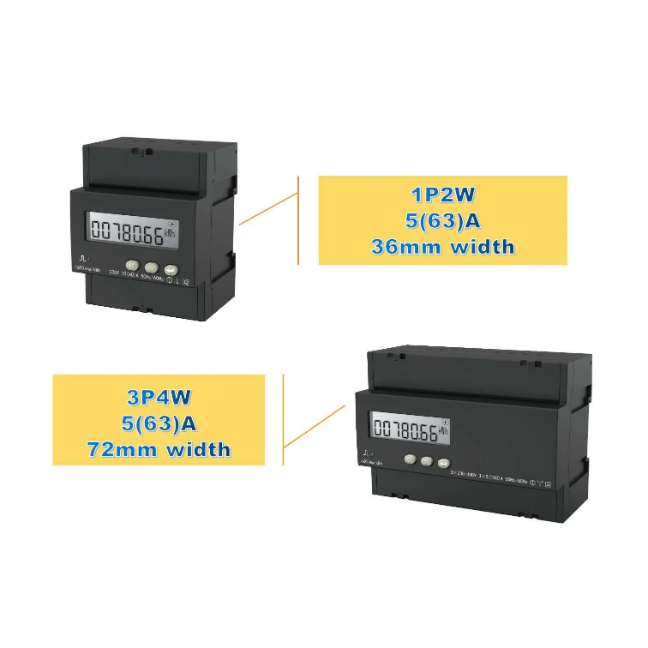

		DDS1946-1P DDSF1946-1P	DDS1946-2P DDSF1946-2P	DDS1946 DDSF1946	DSS1946 DSSF1946	DTS1946 DTSF1946

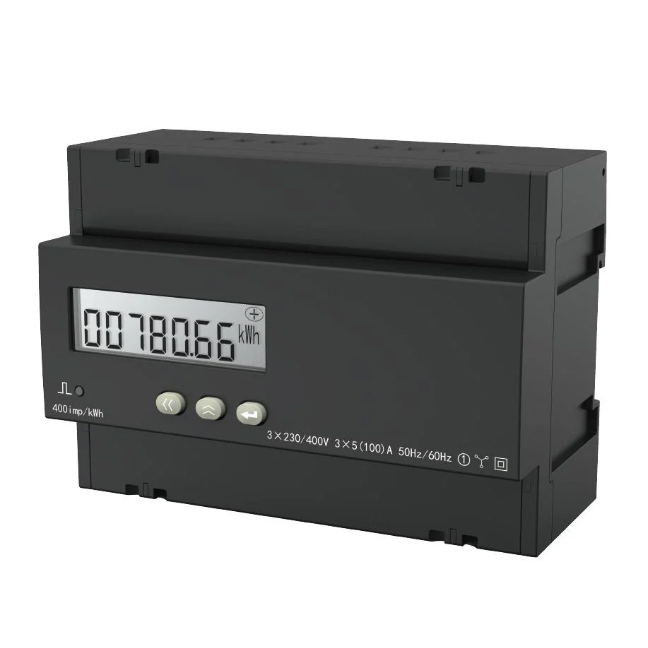

Normal Voltage		230V	230V	230V	3*400V	3*230/400V
Current	Direct input	5(40)A	5(100)A	5(100)A	5(100)A	5(100)A
	Via CT input	-	-	1.5(6)A	1.5(6)A	1.5(6)A
Accuracy		Class 1(Optional:Class 0.5S)
Frequency		45Hz~65Hz
Voltage Range		0.8Un~1.2Un
Start Current	Direct input	0.004Ib
	Via CT input	0.002In
Consumption		<2VA
Energy Pulse		1 output, pulse width (80±20%) ms
RTC Error		≤0.5s/day

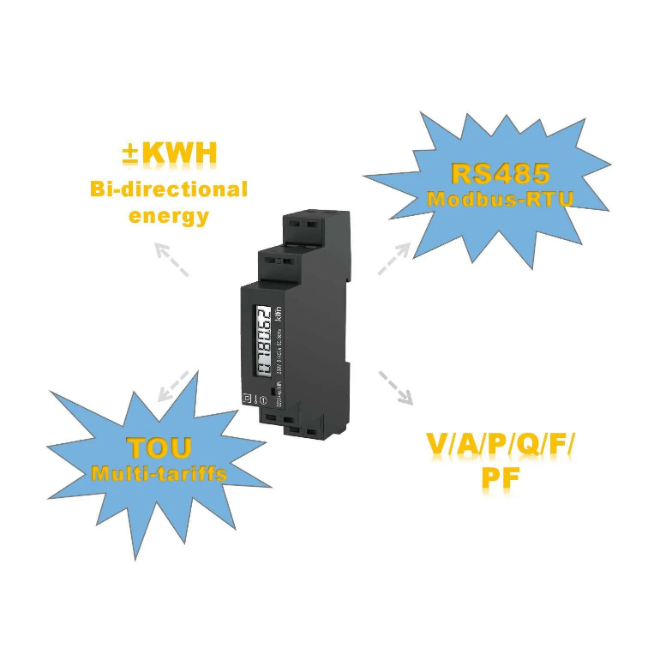

Communication		RS485, Modbus-RTU, 2-wire, up to 9600bps
IP Degree		Front: IP51
Operating Temperature		-10C ~ 55C
Storage Temperature		-25C ~ 70C
Relative Humidity		≤93%
Certificate		CE ISO9001,MID

Application
Energy Consumption Three Phase Electricity Volt Ampere Watt Meter
