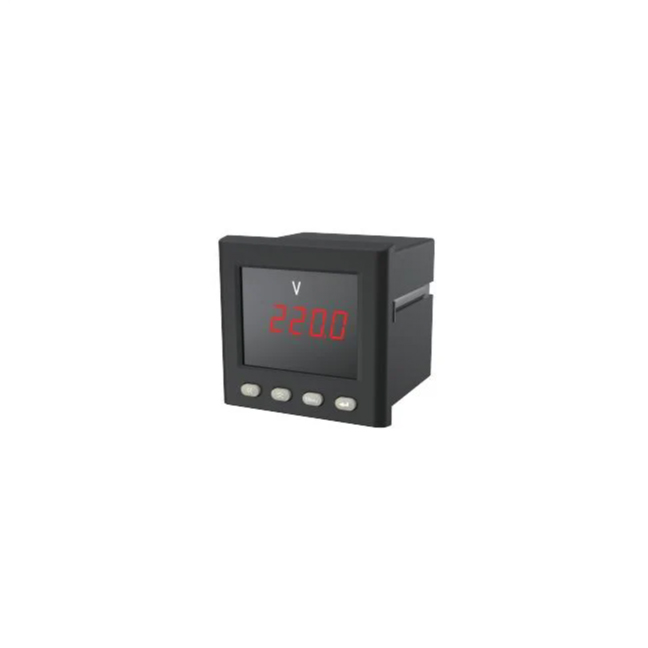

China-Made Single-Phase Smart Electric Measuring Instrument Current & Voltage Panel Meter

Inquiry Now Start Order

Product Details

Quick Details

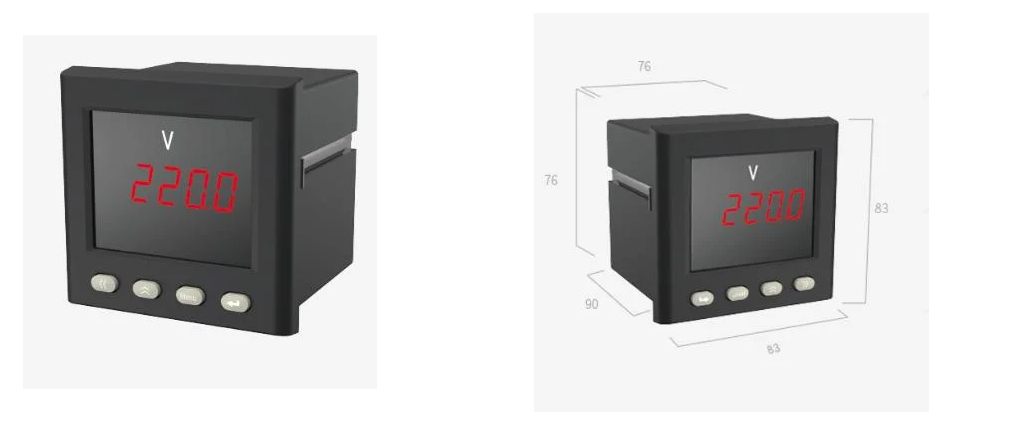

Dimensions: 83*83mm
Accuracy Class: 0.5s
Phase: Single Phase
Display Type: Digital Only
Brand Name: Elecnova

Specifications

Basic Info.

Model NO.

LNF80U

Power Meter Connection

Terminal

Measured Signal

Pulse Peak

Type

Power Meter

Certification

ISO, CE

Customized

Display Method

LED

Accuracy

0.5s

Data Refresh Frequency

Degree of Protection

IP54

Frequency

45-65Hz

Supply Voltage

AC 80~270V

Rated Voltage

AC 100V/380V

Communication

RS485

Specification

83*83mm

Trademark

LINFEE

Origin

China

HS Code

9030809090

Production Capacity

30000PCS/Per Month

Product Description

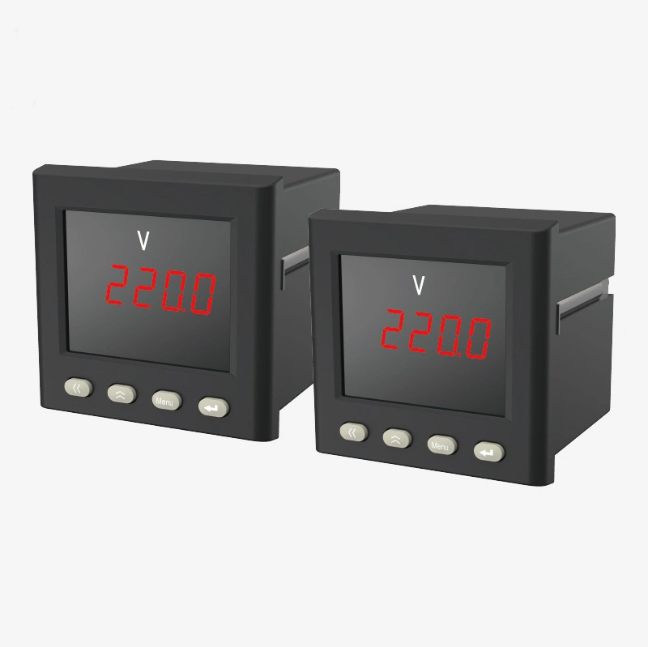

Product Name: China-made single-phase smart electric measuring instrument current and voltage Panel Meter
this series of intelligent electrical measuring instruments is suitable for voltage or current parameter measurement of power distribution system. the series of instruments have programmable transformation ratio, optional communication interface, beautiful appearance and compact structure.
ChinaMade SinglePhase Smart Electric Measuring Instrument Current and Voltage Panel Meter

Technical Specifications

Accuracy		0.5S
Data Update Rate		1s
Signal Input	Rated Current	AC 1A,5A
	Rated Voltage	AC 100V,380V
	Overload	Continuous:2In,instantaneous:10In/5s
		Continuous:1.2Un,instantaneous:2Un/1min
	Energy Consumption	≤0.1VA
	Fequency	45~65HZ
Communication	RS485 Interface	Modbus-RTU protocol, baud rate up to 9600bps
Energy Pulse		Optocoupler isolation,pulse width 80ms±20%
Digital Input		Optocoupler isolation,passive dry contact
Relay Output		Contact capacity AC250V 5A or DC 30V 5A
Auxiliary Power Supply	Working Range	AC/DC 80~270V
Auxiliary Power Supply	Energy Consumption	≤5VA
Environment Condition	Working Temperature	-10~55C
	Storage Temperature	-25~70C
	Relative Humidity	≤93%RH
	Altitude	≤2000m
Safety	Insulation	SignaL,power supply,output terminal to case resistance ≥100MΩ
Safety	Withstand Voltage	Power supply,input and output ≥2kv
Protection Level		IP54

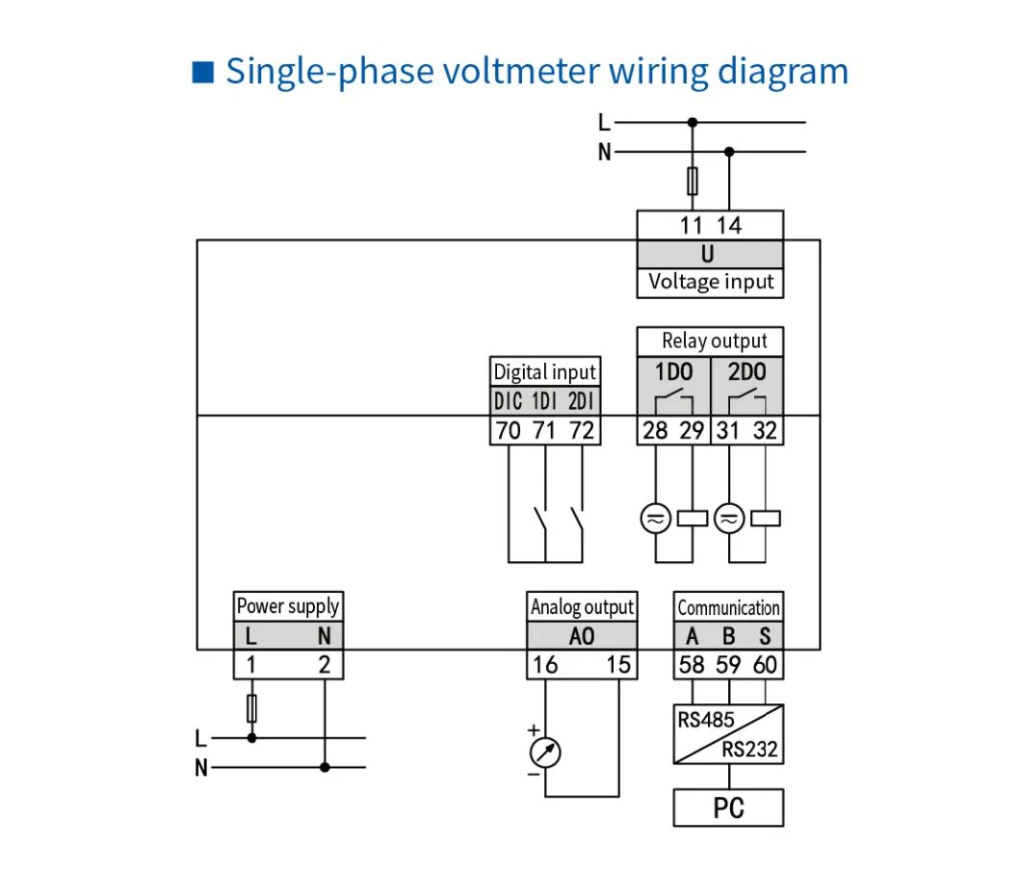

Typical Wiring
ChinaMade SinglePhase Smart Electric Measuring Instrument Current and Voltage Panel Meter

Application
ChinaMade SinglePhase Smart Electric Measuring Instrument Current and Voltage Panel Meter
