Shanghai Minggong Heavy Equipment Co., Ltd.
China Manufacturer with main products: Ball Mill, Crusher Equipment, Cement Mill, Classier, Rotary Dryer, Grinding Mill, Milling Equipments, Rotary Kiln |
13th
classifier
| FOB Price: | 1,000.00 - 5,000.00 USD/Set |
|---|---|
| Shipping: | 30 days |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | export package |
Specifications

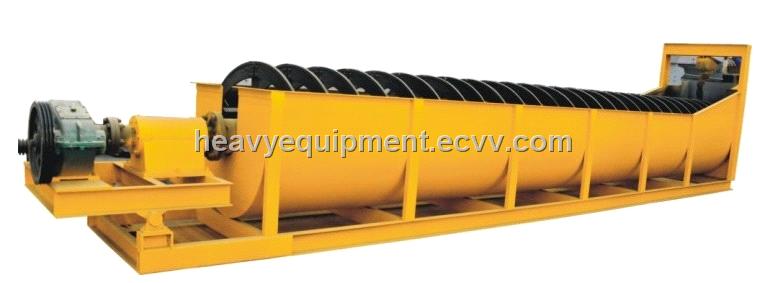

Classifier Introduction:
Our company has independently developed this new generation series of classifier, which introduces the foreign advanced technology. And it features simple structure, reliable and easy in operation. Actually, the classifier has four types: high weir single and double spiral, immersed single and double spiral classifiers.
High weir type: the top of the spiral vane is above the overflow surface, and the spiral center is under the overflow, mainly applied in classifying the size between 0.83-0.15mm.
Immersed type: all the spiral vanes immerses under overflow surface, mainly applied in classifying the size between 0.15-0.07mm.
(Main Technical Parameters):
|
Type
|
Model
|
Screw dia.
mm
|
Trough length
mm
|
Rotary speedr/min
|
Capacityt/d
|
Trough angle
°
|
Motor powerkw
|
Overall dimension
(L×W×H) mm
|
Weight
kg |
||
|
Sand return
|
Overflow
|
Drive
|
Raise
|
||||||||
|
High-weir type
|
FG500
|
Φ500
|
4500
|
8～12.5
|
135～210
|
32
|
14-18.5
|
1.5
|
|
6409×712×1599
|
1980
|
|
FG750
|
Φ750
|
5500
|
6.0-10.0
|
340～570
|
65
|
14-18.5
|
3.0
|
|
6300×1250×1780
|
3005
|
|
|
FG-1000
|
Φ1000
|
6500
|
5.0～8.0
|
675～1080
|
110
|
14-18.5
|
7.5
|
|
7100×1330×2390
|
5310
|
|
|
FG-1200
|
Φ1200
|
6500
|
5.0～8.0
|
1170～1870
|
155
|
14-18.5
|
7.5
|
0.4
|
7560×1572×2328
|
8000
|
|
|
FG-1500
|
Φ1500
|
8300
|
4.0～6.0
|
1830～2740
|
235
|
14-18.5
|
11
|
0.4
|
9740×2000×4100
|
9800
|
|
|
FG-2000
|
Φ2000
|
8400
|
3.0～3.5
|
3240～5400
|
400
|
14-18.5
|
11
|
2.8
|
10000×2570×4468
|
20500
|
|
|
FG-2400
|
Φ2400
|
9200
|
2.5～4.0
|
4650～7450
|
580
|
14-18.5
|
11-15
|
2.8
|
10800×2980×4700
|
25700
|
|
|
2FG-1200
|
Φ1200
|
6500
|
5.0～8.0
|
2340～3740
|
310
|
14-18.5
|
5.5×2
|
0.4×2
|
8060×3400×3100
|
13300
|
|
|
2FG-1500
|
Φ1500
|
8300
|
4.0～6.0
|
3660～5480
|
470
|
14-18.5
|
7.5×2
|
0.4×2
|
9740×3630×4050
|
22100
|
|
|
2FG-2000
|
Φ2000
|
8400
|
3.0～5.5
|
6480～10800
|
800
|
14-18.5
|
11×2
|
2.8×2
|
10000×4600×4470
|
36500
|
|
|
2FG-2400
|
Φ2400
|
9200
|
2.5～4.0
|
9300-14900
|
1160
|
14-18.5
|
15×2
|
2.8×2
|
10800×5400×4700
|
45800
|
|
|
2FG-3000
|
Φ3000
|
12500
|
2.0～3.2
|
14600～23400
|
1785
|
14-18.5
|
18.5×2
|
4×2
|
15600×6640×6350
|
73000
|
|
|
Immersed type:
|
FC-1000
|
Φ1000
|
7600
|
5.0～8.0
|
675～1080
|
85
|
14-18.5
|
7.5
|
0.4
|
10000×1680×4000
|
6000
|
|
FC-1200
|
Φ1200
|
8400
|
5.0～8.0
|
1170～1870
|
120
|
14-18.5
|
7.5
|
0.4
|
10000×1880×4190
|
9280
|
|
|
FC-1500
|
Φ1500
|
10500
|
4.0～6.0
|
1830～2740
|
185
|
14-18.5
|
11
|
0.8
|
12200×2100×4900
|
12570
|
|
|
FC-2000
|
Φ2000
|
12900
|
3.0～3.5
|
3240～5940
|
320
|
14-18.5
|
11-15
|
2.8
|
14500×2880×5500
|
29100
|
|
|
FC-2400
|
Φ2400
|
14200
|
2.5～4.0
|
4650～7450
|
455
|
14-18.5
|
11-18.5
|
4.0
|
15900×3300×6000
|
41000
|
|
|
2FC-1200
|
Φ1200
|
8400
|
5.0～8.0
|
2340～3740
|
240
|
14-18.5
|
7.5×2
|
0.4×2
|
10000×3700×4190
|
19600
|
|
|
2FC-1500
|
Φ1500
|
10500
|
4.0～6.0
|
3660～5480
|
370
|
14-18.5
|
7.5×2
|
0.8×2
|
12200×3840×4850
|
30700
|
|
|
2FC-2000
|
Φ2000
|
12900
|
3.0～5.5
|
6480～11800
|
640
|
14-18.5
|
15×2
|
2.8×2
|
14500×4910×5500
|
50000
|
|
|
2FC-2400
|
Φ2400
|
14200
|
2.5～4
|
9300～14900
|
910
|
14-18.5
|
18.5×2
|
4×2
|
15900×5730×6000
|
67900
|
|
|
2FC-3000
|
Φ3000
|
14300
|
2.0～3.2
|
14600～23400
|
1410
|
14-18.5
|
22×2
|
4×2
|
17700×7000×8000
|
84900
|
|
