Shanghai Minggong Heavy Equipment Co., Ltd.
China Manufacturer with main products: Ball Mill, Crusher Equipment, Cement Mill, Classier, Rotary Dryer, Grinding Mill, Milling Equipments, Rotary Kiln |
13th
| Export Markets: | South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia |
|---|
Specifications

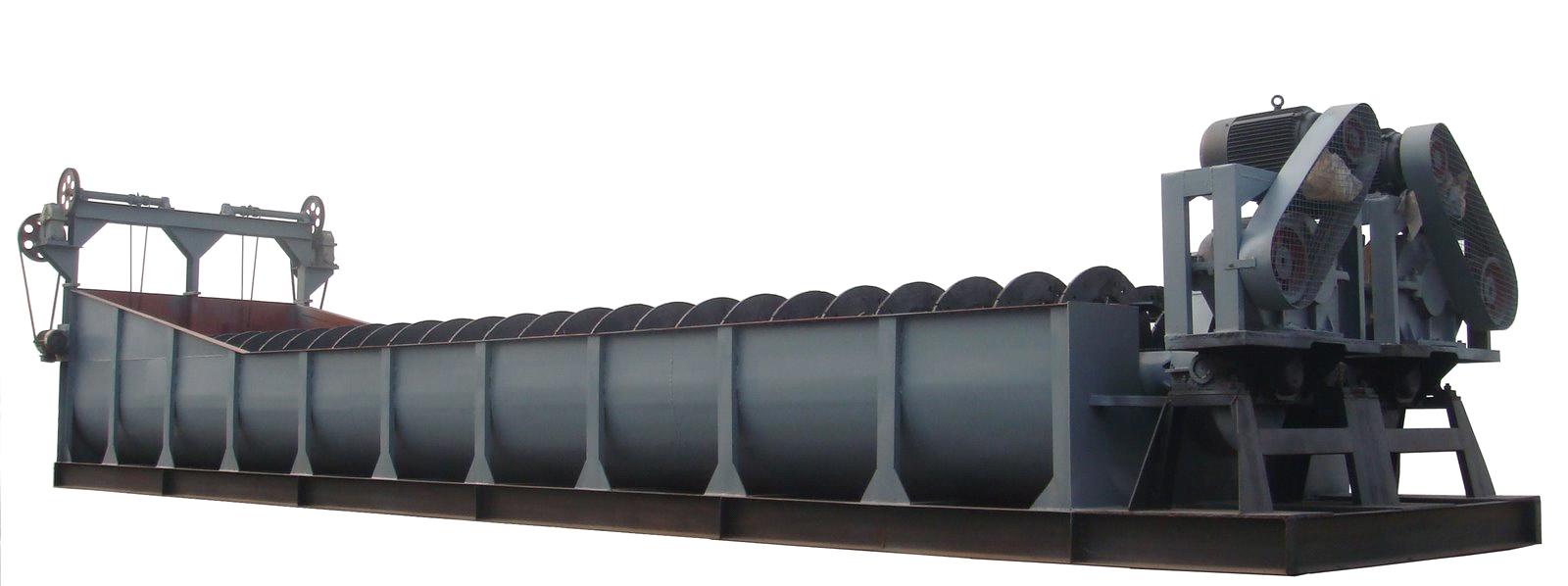

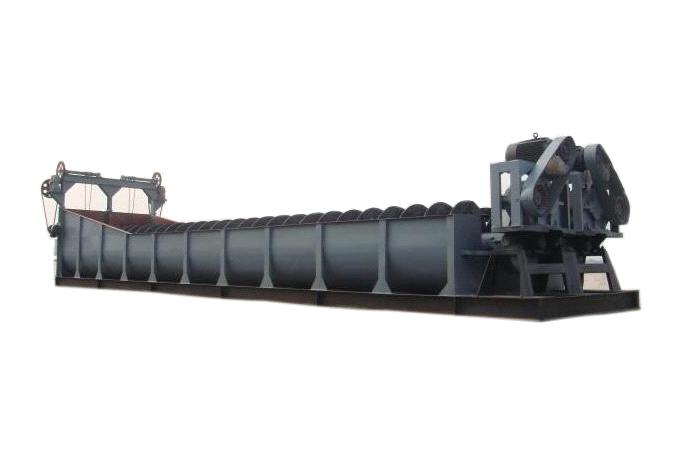

Classifier is mainly consists of driver , screw , trough , lifting device, bottom-support ( bearing bush ) and the discharging valve. The base adopts channel steel material, and the frame is welded with steel plate. Besides, the water input and spindle head of the screwing shaft use cast iron, making them durable and wear-resisting. Moreover, the lifting device has two types :motor-driven and hand-driven
Features and Benefit:
1. Large output, low energy consumption, high classifying efficiency
2. The granularity is concentrative distribution, high classification precision
3. Rational structure, fine applicability
4. A high degree of automation
Main Technical Parameters of Spiral Classifier:
|
Type
|
Model
|
Screw Dia
(mm) |
Flume Length(mm)
|
Capacity(t/d)
|
Power(kw)
|
Overall Dimension
(mm) |
Weight(kg)
|
||
|
Return Sand
|
Overflow
|
Driving Motor
|
Elevating
Motor |
||||||
|
High Weir Classifier
|
FG500
|
φ500
|
4500
|
135 ~210
|
32
|
1.5
|
|
6409×712×1599
|
1980
|
|
FG750
|
φ750
|
5500
|
340 ~570
|
65
|
3.0
|
|
6300×1250×1780
|
3005
|
|
|
FG-1000
|
φ1000
|
6500
|
675 ~1080
|
110
|
7.5
|
|
7100×1330×2390
|
5310
|
|
|
FG-1200
|
φ1200
|
6500
|
1170 ~1870
|
155
|
7.5
|
0.4
|
7560×1572×2328
|
8000
|
|
|
FG-1500
|
φ1500
|
8300
|
1830 ~2740
|
235
|
11
|
0.4
|
9740×2000×4100
|
9800
|
|
|
FG-2000
|
φ2000
|
8400
|
3240 ~5400
|
400
|
11
|
2.8
|
10000×2570×4468
|
20500
|
|
|
FG-2400
|
φ2400
|
9200
|
4650 ~7450
|
580
|
11-15
|
2.8
|
10800×2980×4700
|
25700
|
|
|
2FG-1200
|
φ1200
|
6500
|
2340 ~3740
|
310
|
5.5×2
|
0.4×2
|
8060×3400×3100
|
13300
|
|
|
2FG-1500
|
φ1500
|
8300
|
3660 ~5480
|
470
|
7.5×2
|
0.4×2
|
9740×3630×4050
|
22100
|
|
|
2FG-2000
|
φ2000
|
8400
|
6480~10800
|
800
|
11×2
|
2.8×2
|
10000×4600×4470
|
36500
|
|
|
2FG-2400
|
φ2400
|
9200
|
9300~14900
|
1160
|
15×2
|
2.8×2
|
10800×5400×4700
|
45800
|
|
|
2FG-3000
|
φ3000
|
12500
|
14600~23400
|
1785
|
18.5×2
|
4×2
|
15600×6640×6350
|
73000
|
|
