Classifier /New Air Classifier / Powder Cyclone Classifier
| FOB Price: | 10.00 - 99,999.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set/Sets per Month |
| Shipping: | ASAP |
| Payment Terms: | L/C, T/T, negotiable |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | classifier packing with woodbox, adjuistable, according to customer requirement |
Specifications
classifier /new air classifier / powder cyclone classifier
Our company independently manufactures this new generation series of the classifier, which synthesizes similar classification technology from Germany and Japan. At present it has reached the international advanced level of the same products. And it has advantages of simple structure , reliable and easy in operation. Now it is widely used in many areas, for example, it worked together with the ball mill, forming closed cycle to split and shunt the iron ore in the concentrating mill; classified the iron ore and fine silt in the gravity concentrator; graded the size of the pulp in metal processing and applied in de-sliming& dehydration operation during the process of ore washing. Actually, the classifier has four types: high weir single and double spiral, immersed single and double spiral classifiers.
Classifier Working principle:

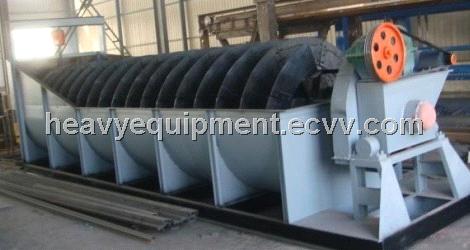

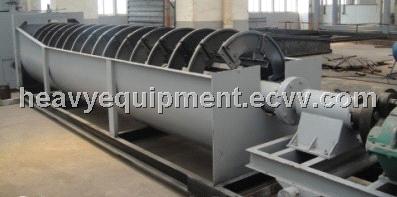

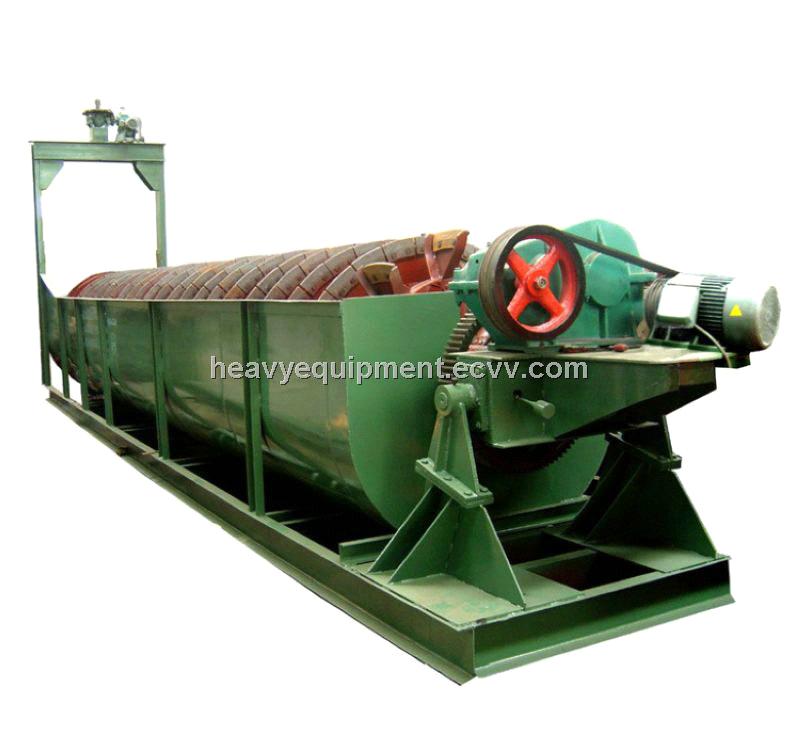

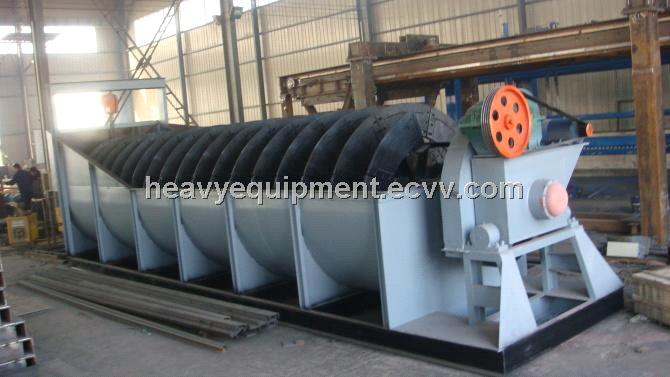

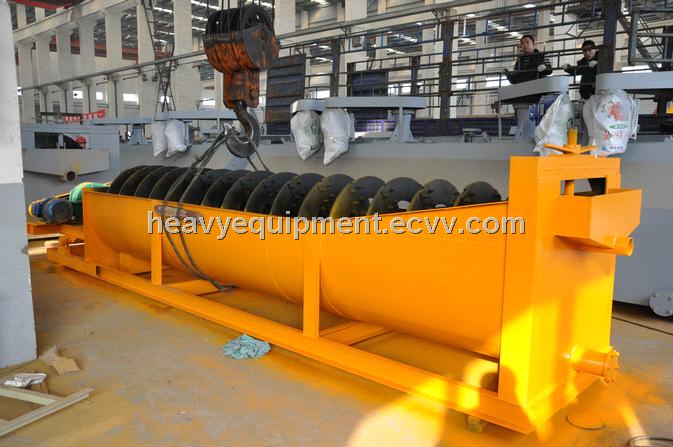

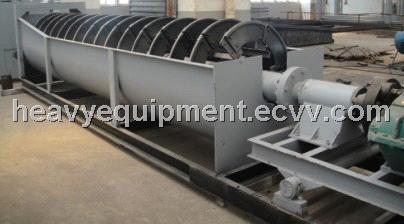

Classifier is mainly consists of driver , screw , trough , lifting device, bottom-support ( bearing bush ) and the discharging valve. The base adopts channel steel material, and the frame is welded with steel plate. Besides, the water input and spindle head of the screwing shaft use cast iron, making them durable and wear-resisting. Moreover, the lifting device has two types : motor-driven and hand-driven
Classifier features and Benefits:
1. Large output, low energy consumption, high classifying efficiency
2. The granularity is concentrative distribution, high classification precision
3. Rational structure, fine applicability
4. A high degree of automation
Main Technical Parameters of Spiral Classifier:
|
|
Model
|
Screw Dia
(mm) |
Flume Length(mm)
|
Capacity(t/d)
|
Power(kw)
|
Overall Dimension
(mm) |
Weight(kg)
|
||
|
Return Sand
|
Overflow
|
Driving Motor
|
Elevating
Motor |
||||||
|
FG-1200
|
φ 1200
|
6500
|
1170 ~1870
|
155
|
7.5
|
0.4
|
7560× 1572× 2328
|
8000
|
|
|
FG-1500
|
φ 1500
|
8300
|
1830 ~2740
|
235
|
11
|
0.4
|
9740× 2000× 4100
|
9800
|
|
|
FG-2000
|
φ 2000
|
8400
|
3240 ~5400
|
400
|
11
|
2.8
|
10000× 2570× 4468
|
20500
|
|
|
FG-2400
|
φ 2400
|
9200
|
4650 ~7450
|
580
|
11-15
|
2.8
|
10800× 2980× 4700
|
25700
|
|
|
2FG-1200
|
φ 1200
|
6500
|
2340 ~3740
|
310
|
5.5× 2
|
0.4× 2
|
8060× 3400× 3100
|
13300
|
|
|
2FG-1500
|
φ 1500
|
8300
|
3660 ~5480
|
470
|
7.5× 2
|
0.4× 2
|
9740× 3630× 4050
|
22100
|
|
|
2FG-2000
|
φ 2000
|
8400
|
6480~10800
|
800
|
11× 2
|
2.8× 2
|
10000× 4600× 4470
|
36500
|
|
|
2FG-2400
|
φ 2400
|
9200
|
9300~14900
|
1160
|
15× 2
|
2.8× 2
|
10800× 5400× 4700
|
45800
|
|
|
2FG-3000
|
φ 3000
|
12500
|
14600~23400
|
1785
|
18.5× 2
|
4× 2
|
15600× 6640× 6350
|
73000
|
|
