Shanghai Minggong Heavy Equipment Co., Ltd.
China Manufacturer with main products: Ball Mill, Crusher Equipment, Cement Mill, Classier, Rotary Dryer, Grinding Mill, Milling Equipments, Rotary Kiln |
13th
Classifier
| FOB Price: | 100.00 - 10,000.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set/Sets per Day |
| Shipping: | according to customer's requirement |
| Payment Terms: | L/C, T/T, D/A |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | Export standard packaging |
Specifications
Classifier

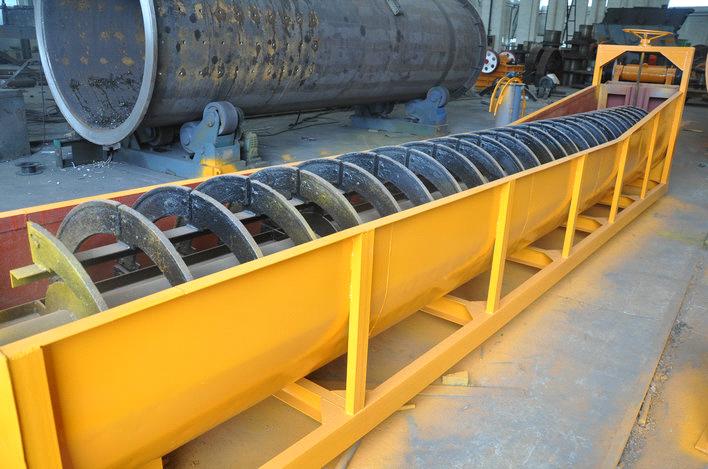

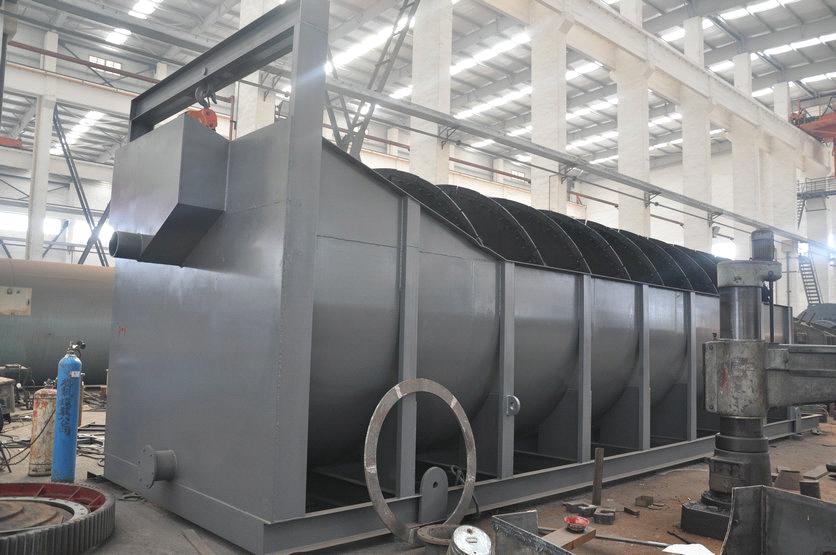

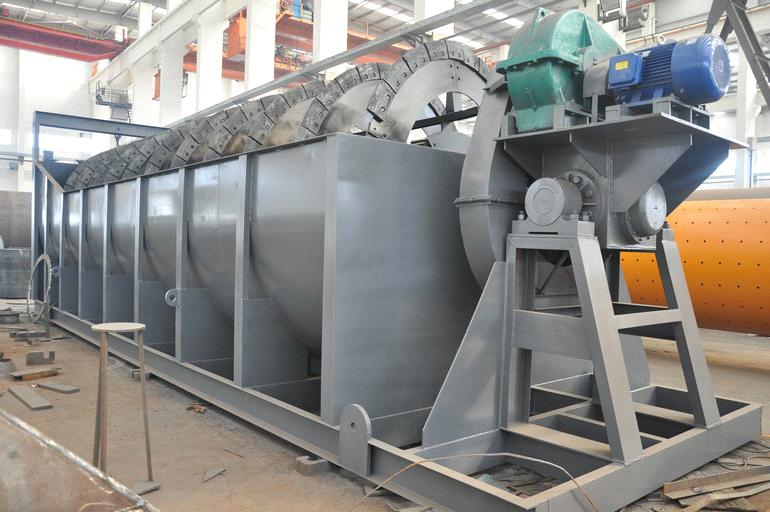

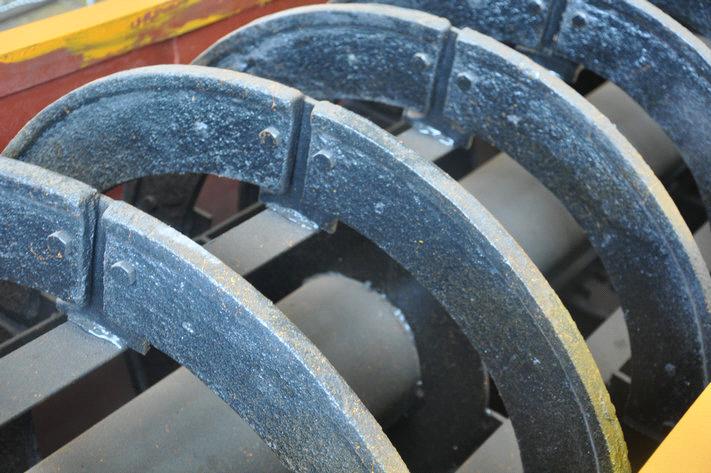

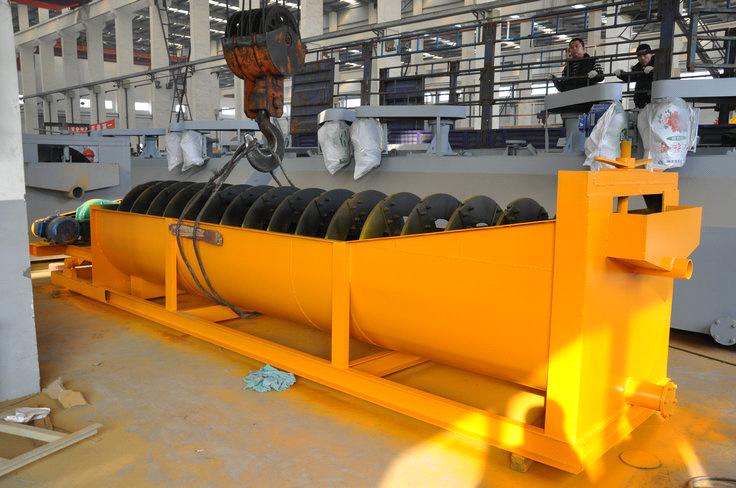

Our Spiral Classifiers are available in a comprehensive range, designed to fit a variety of classification applications in wide range of industries.The Spiral Classifiers are durable, and offer rugged construction, low maintenance and markedly lower energy consumption.
These Spiral Classifiers have several novel design features for improved performance, operational cask and long trouble free service.
Main Technical Parameters of Spiral Classifier:
| Type | Model |
Screwdia. (mm) |
Trough length (mm) |
Rotary speed (r/min) |
Capacity(t/d) | Trough angle (° ) | Motor power(kw) | Overall dimension (L× W× H) (mm) | Weight(kg) | ||
|
Sand return
|
Overflow
|
Drive
|
Raise
|
||||||||
| High-weir type | FG500 | Φ 500 | 4500 | 8～12.5 | 135～210 | 32 | 14-18.5 | 1.5 | 6409× 712× 1599 | 1980 | |
| FG750 | Φ 750 | 5500 | 6.0-10.0 | 340～570 | 65 | 14-18.5 | 3.0 | 6300× 1250× 1780 | 3005 | ||
|
FG- 1000 |
Φ 1000 | 6500 | 5.0～8.0 | 675～1080 | 110 | 14-18.5 | 7.5 | 7100× 1330× 2390 | 5310 | ||
|
FG- 1200 |
Φ 1200 | 6500 | 5.0～8.0 | 1170～1870 | 155 | 14-18.5 | 7.5 | 0.4 | 7560× 1572× 2328 | 8000 | |
|
FG- 1500 |
Φ 1500 | 8300 | 4.0～6.0 | 1830～2740 | 235 | 14-18.5 | 11 | 0.4 | 9740× 2000× 4100 | 9800 | |
|
FG- 2000 |
Φ 2000 | 8400 | 3.0～3.5 | 3240～5400 | 400 | 14-18.5 | 11 | 2.8 | 10000× 2570× 4468 | 20500 | |
|
FG- 2400 |
Φ 2400 | 9200 | 2.5～4.0 | 4650～7450 | 580 | 14-18.5 | 11-15 | 2.8 | 10800× 2980× 4700 | 25700 | |
|
2FG- 1200 |
Φ 1200 | 6500 | 5.0～8.0 | 2340～3740 | 310 | 14-18.5 | 5.5× 2 | 0.4× 2 | 8060× 3400× 3100 | 13300 | |
|
2FG- 1500 |
Φ 1500 | 8300 | 4.0～6.0 | 3660～5480 | 470 | 14-18.5 | 7.5× 2 | 0.4× 2 | 9740× 3630× 4050 | 22100 | |
|
2FG- 2000 |
Φ 2000 | 8400 | 3.0～5.5 | 6480～10800 | 800 | 14-18.5 | 11× 2 | 2.8× 2 | 10000× 4600× 4470 | 36500 | |
|
2FG- 2400 |
Φ 2400 | 9200 | 2.5～4.0 | 9300-14900 | 1160 | 14-18.5 | 15× 2 | 2.8× 2 | 10800× 5400× 4700 | 45800 | |
|
2FG- 3000 |
Φ 3000 | 12500 | 2.0～3.2 | 14600～23400 | 1785 | 14-18.5 | 18.5× 2 | 4× 2 | 15600× 6640× 6350 | 73000 | |
| Immersed type: |
FC- 1000 |
Φ 1000 | 7600 | 5.0～8.0 | 675～1080 | 85 | 14-18.5 | 7.5 | 0.4 | 10000× 1680× 4000 | 6000 |
|
FC- 1200 |
Φ 1200 | 8400 | 5.0～8.0 | 1170～1870 | 120 | 14-18.5 | 7.5 | 0.4 | 10000× 1880× 4190 | 9280 | |
|
FC- 1500 |
Φ 1500 | 10500 | 4.0～6.0 | 1830～2740 | 185 | 14-18.5 | 11 | 0.8 | 12200× 2100× 4900 | 12570 | |
|
FC- 2000 |
Φ 2000 | 12900 | 3.0～3.5 | 3240～5940 | 320 | 14-18.5 | 11-15 | 2.8 | 14500× 2880× 5500 | 29100 | |
|
FC- 2400 |
Φ 2400 | 14200 | 2.5～4.0 | 4650～7450 | 455 | 14-18.5 | 11-18.5 | 4.0 | 15900× 3300× 6000 | 41000 | |
|
2FC- 1200 |
Φ 1200 | 8400 | 5.0～8.0 | 2340～3740 | 240 | 14-18.5 | 7.5× 2 | 0.4× 2 | 10000× 3700× 4190 | 19600 | |
|
2FC- 1500 |
Φ 1500 | 10500 | 4.0～6.0 | 3660～5480 | 370 | 14-18.5 | 7.5× 2 | 0.8× 2 | 12200× 3840× 4850 | 30700 | |
|
2FC- 2000 |
Φ 2000 | 12900 | 3.0～5.5 | 6480～11800 | 640 | 14-18.5 | 15× 2 | 2.8× 2 | 14500× 4910× 5500 | 50000 | |
|
2FC- 2400 |
Φ 2400 | 14200 | 2.5～4 | 9300～14900 | 910 | 14-18.5 | 18.5× 2 | 4× 2 | 15900× 5730× 6000 | 67900 | |
|
2FC- 3000 |
Φ 3000 | 14300 | 2.0～3.2 | 14600～23400 | 1410 | 14-18.5 | 22× 2 | 4× 2 | 17700× 7000× 8000 | 84900 | |
