Home  >Products Catalog > Optical Passive Series > FC/SC Optical Fiber Adaptor

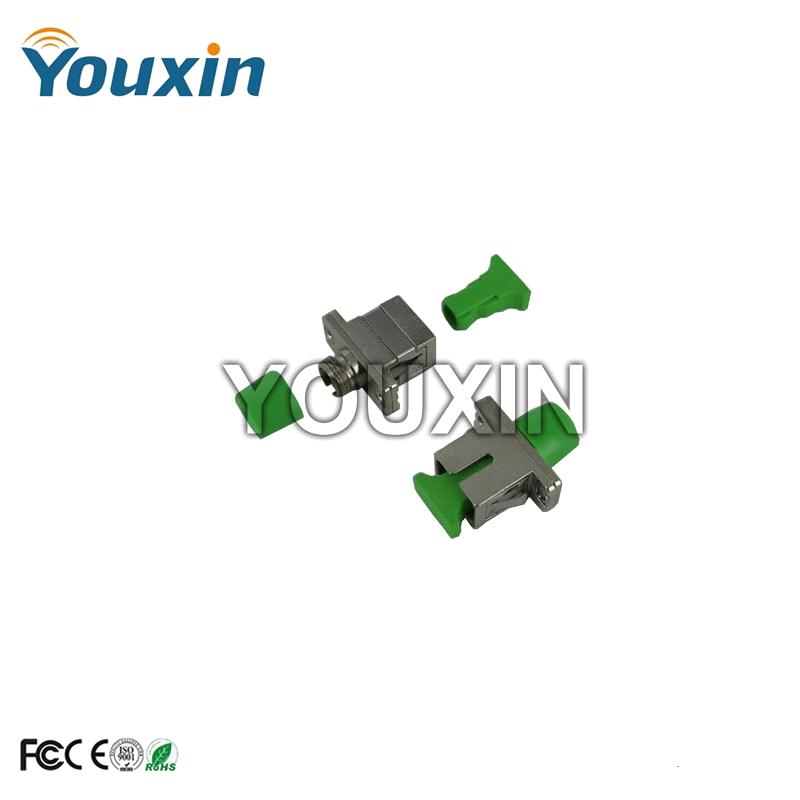

FC/SC Optical Fiber Adaptor SafeBuy Supplier Member

Shipping: By sea or air
Payment Terms: L/C, T/T
Update Time: 2017/1/16
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Zhejiang in China

Quick Details

  • Brand Name: YOUXIN
  • Model Number: OFAT-FC-SC-M

Specifications

Optical fiber hybrid adaptor, FC to SC, SM/MM, single core, female to female, metal type.
Features :
◇ Accurate Dimension
◇ Good Exchangeability
◇ Good Repeatability
◇ Good Wear Resistance
Description
Hybrid fiber optic adapters offer a solution for hybrid applications where the two different kinds of fiber connectors or cable assemblies need to be linked with each other. Most of the hybrid fiber adapters use high precision ceramic sleeves which enable reliable ferrule mating and ensure low insertion loss and return loss during the linking.
Parameter
  Item
Specification
FC to SC
FC to ST
SC to ST
Insertion loss
≤0.20 dB
Repeatability
≤0.10 dB
Changeability
≤0.20 dB
Sleeve material
Bronze sleeve
Operation temperature
-25 ~ +70℃
-40 ~ +80℃
-25 ~ +70℃
Storage temperature
-40 ~ +85℃
Industry standard
Bellcore TA-NWT-001209
Applications
◇ FTTH, LAN, PON & Optical CATV
◇ Local ring net
◇ Optical fiber communication system
◇ Optical fiber test equipment
◇ Optical fiber network
