Home  >Products Catalog > GEPON Series > Ten Ports EPON OLT

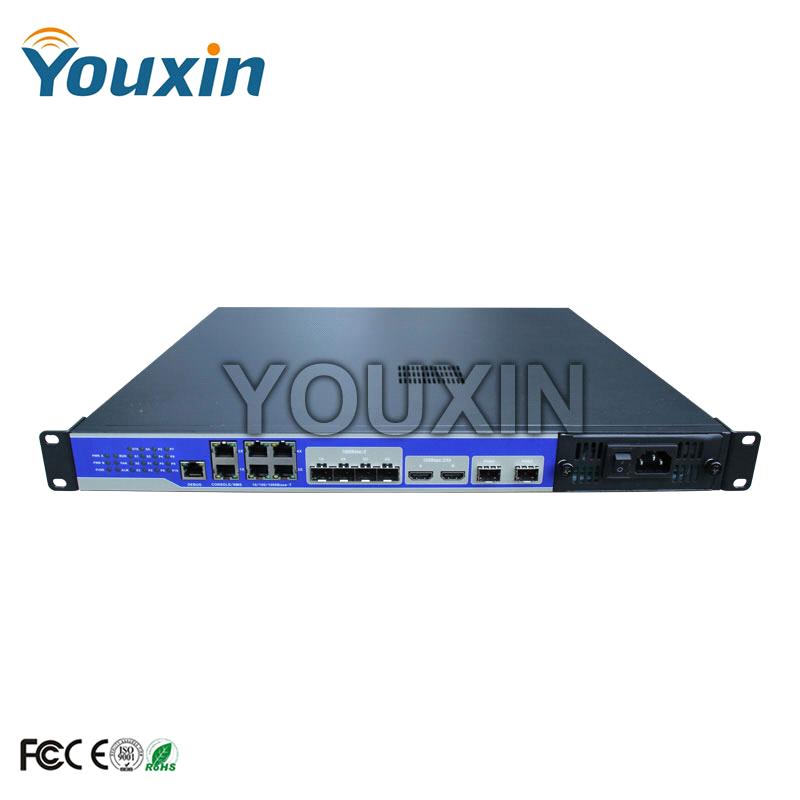

Ten Ports EPON OLT SafeBuy Supplier Member

Shipping: By sea or air
Payment Terms: L/C, T/T
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

Optical line termination, 2 EPON interfaces (leave advance 4 PON card , 1 PON card with 2 SFP PON ports for PON slot )
4 Gigabit Ethernet ports, 4Gigabit SFP slots, 1 10G HDMI interface, 1 debugging port, 1 management Ethernetport ,
-48Vdcpower supply input, 440mm(W) * 385mm (D) * 43.6mm (H), 19' ', 1U. (adapt TK solution)
Features:
◇Highestintegration level in industry, 1U height, small size, high capacity, 2 built-in PONs in main board, supports 8 PONs by 4 hot-swappable slots, fullload equipment supports up to 10 PONs.
◇ Strongdata switch ability, up to 68G full wire-speednon-blocking data switch.
◇ Richuplink interfaces, including 4*1000M uplink Ethernet ports, 4*1000M uplink SFPoptical module slots, and 1*10G uplink Ethernet port.
◇ 220Vacand -48Vdc dual power redundant hot backup, load balance operating, auto-seamless switch whichever power broke down, no service interruption.
◇ Hot-swappablecomponents, all PON/Ethernet interfaces, module/card in front and back panelare hot-swappable.
◇ Support flexible controllablemulti-cast, Proxy, Snooping and etc.
◇ Support strong VLAN extensionfunctions, including VLAN Stacking/Trunk, etc.
◇ Support flexible DBA, uplink/downlink service rate-limited, minimum broadband assigned precision is1Kbps.
◇ Adopt multi LLID and IEEE802.1ptechnologies, provide multi protectionQoS services.
Description:
OLT-1200is a miniaturization andmodularization GEPON OLT, broadband fiber access system platform, developed byV-Solution. It is fully compliant to IEEE802.3-2005 and Chinese technicalrequirement of Ethernet Passive Optical Network (EPON). This product supportsintegrated access service, such as broadband surf-netting, IP voice, IPTV, CATVand etc.
Parameter
Equipment components
No
Item
Full load
Qty
Description
1
Main board
1
2 EPON interfaces, 4 Gigabit Ethernet ports, 4 Gigabit SFP slots, 1 10G HDMI interface, 1 debugging port, 1 management Ethernet port, -48Vdc power supply input
2
PON line card
4
Hot-swappable 2 EPON interfaces, compliant with IEEE802.3-2005 EPON technical standard, support 20km transmission distance (Standard configuration without optical module)
3
Fans module
1
Hot-swappable fans module
4
Power module
1
Hot-swappable power supply module supports 220Vac power in, builds dual power redundant hot backup with -48Vdc on main board.
Hardware features
Equipment parameters
Dimension
440mm (W) * 385mm (D) * 43.6mm (H)
Net weight
4Kg (Full load)
Power consumption
≤ 80W
Operating condition
Temperature: 0 ~ +55℃, humidity: 10 ~ 90% (non-condensed)
Storing condition
Temperature: -25 ~ +70℃, humidity: 10 ~ 90% (non-condensed)
Power supply
DC
48± 3 VDC
AC
176 ~ 264 VAC
Equipment interface
Uplink Ethernet interface
1*10GE(HDMI connector), 4*GE ports (Ethernet port and SFP connector)
EPON interface
10*EPON SFP interfaces
Console debugging interface
1 interface, compliant with RS232 technical standard
Out-of-band management interface
1 interface, compliant with 100Base-TX technical standard
Advanced features
Switch function
10Gigabit switch backplane (Switch capability reach up to 68Gbps), non-blocking wire-speed switch ability
8K MAC address table, support 256 multicast table, support 4K VLAN (802.1Q)
Up to 1*10GE, 4* uplink GE aggregation (IEEE 802. Ad), support maximum 14 aggregation groups, support port mirroring based on output interface
VLAN
Support IEEE 802.1QVLAN, support 4K concurrent VLAN
Strong VLAN extension functions, support VLAN Stacking/Trunk and flexible QinQ, etc.
RSTP
Support STP, RSTP
IGMP
Support IGMPv1/v2 protocol, support IGMP Snooping/Proxy, support controllable multicast
QoS and ACL
Support flow classification, mark, queue and dispatch
Support flow filter and suppression of L2, L3, L4
Support ONU, ONU port and SNI port uplink/downlink rate limited, rate limited precision better than ± 5%
OLT uplink/downlink service based on IEEE 802.1D User Priority marking and mirroring to different priority queue and dispatching
OLT SNI ports support 8 priority queues, ONU UNI supports 4 priority queues
Broadcast storm suppression
Support broadcast, multicast and DLF broadcast storm suppression, suppression based on setting PPS
Flow control
Support IEEE 802.3x flow control in Full duplex mode, support backpressure flow control in half duplex mode
Encryption and security
Support legitimacy authentication based on ONU MAC address
Support AES-128 bi-direction for each LLID and support triple churning in downlink direction
Management
SNMP, Telnet, Console
Support in/out-of-band management, support SNMPv1/v2, support IEEE802.3ah OAM
Management function
Support equipment configuration management, performance management, fault management, sources management, safety management and etc.
Support ONU remote management, remote mass configuration download, software remote auto-update
Support ONU offline configuration, auto-configuration when registered
Support ONU line diagnosis and distance measuring
Redundant backup
Support AC/DC dual power protection
Applications
◇ Triple-play(GEPON-IP, CATV, VOIP)
