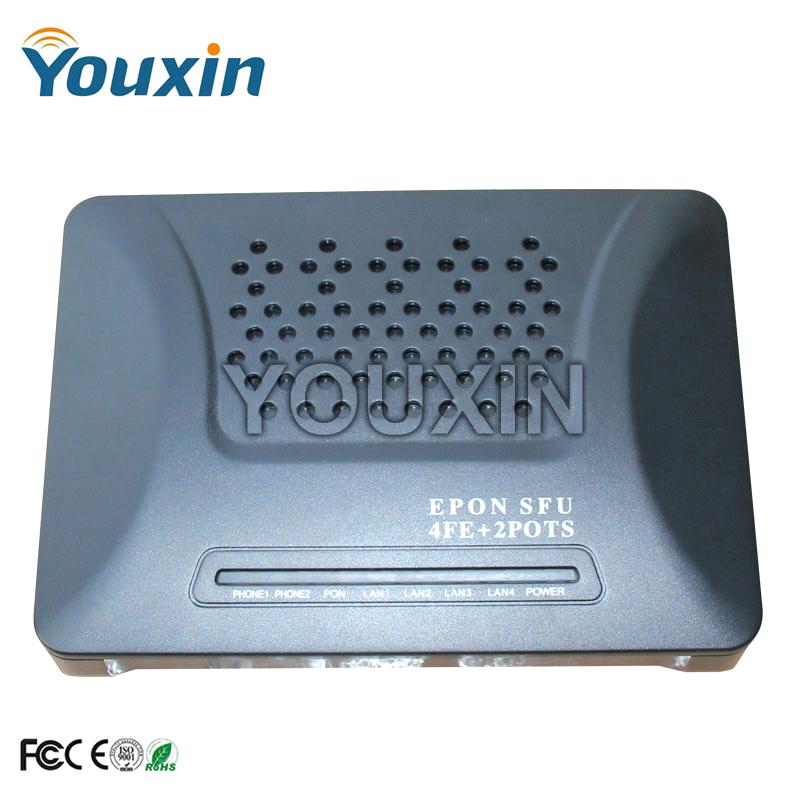

FTTH EPON SFU (4x Fast Ethernet Ports.2 VoIP Ports)
| Shipping: | By sea or air |
|---|---|
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Specifications
Optical network unit, 4 10/100Base-T RJ45 ports, 2 VoIP ports, 1 PON port for GEPON, SM, single fiber, Web management, RS232 console for debug, external power, AC220V/DC-12V, 160mm*115mm*32mm (length*width*height)
Features :
◇ Plug and play, integrated auto-detecting, auto-configuration, and auto firmware upgrade, etc.
◇ Integrated OAM remote configuration and maintenancefunction.
◇ Support rich QinQ VLAN function and IGMP snoopingmulticast feature.
◇ Integrated line testing compliant with GR-909.
◇ Support transceiver diagnostic monitoring, transmitterdisable, etc.
◇ Fully compatibility with OLT based onBroadcom/PMC/Cortina chipset.
◇ For small and medium-sized operators, VoIP servicesare customizable.
◇ Full speed non-blocking switching.
◇ 1K MAC address table.
◇ 64 full range VLAN ID.
◇ Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.
◇ Integrated port monitoring, port mirroring, port ratelimiting, port SLA, etc.
◇ Support auto polarity detection of Ethernet ports (AUTOMDIX).
◇ Integrated IEEE802.1p QoS with four level priorityqueues.
◇ Support IPv4 IGMP snooping and IPv6 MLD snooping.
Description
YX2806 is an EPON broadband terminal device designedfor fulfilling FTTH/FTTO request of telecom operators, and internet access ofSOHO people. This product is based on stable and mature Gigabit EPONtechnology, which has high performance/price ratio, and the technology of Layer2 Ethernet switch and high quality VoIP as well. It is highly reliable and easyto maintain, with guaranteed QoS. And it is fully compliant to technicalregulations such as IEEE802.3ah and technical requirement of EPON Equipment (V2.1and above version) from China Telecom
Description
|
Technical items
|
Descriptions
|
|
Upstream PON interface
|
1 EPON interface, SC single-mode/single-fibre, symmetric 1.25Gbps
|
|
Wavelength
|
Tx 1310nm, Rx 1490nm
|
|
Optical interface
|
SC/PC connector
|
|
Downstream LAN interface
|
4 10/100Mbps auto adaptive Ethernet interfaces, Full Duplex/Half Duplex, RJ45 connectors
|
|
Downstream POTS interface
|
2 FXS, RJ11 connectors
|
|
Indicators
|
8 indicators, for status of power supply, PON, LAN and POTS.
|
|
DC power supply
|
+12V, external AC-DC power adaptor
|
|
Power switch
|
1
|
|
Reset button
|
1, for reset and restore to factory configuration
|
|
Power consumption
|
≤ 5W
|
|
Operating condition
|
Operating temp: -5 - +55℃, operating humidity: 10-90%(non-condensed)
|
|
Storing condition
|
Storing temp: -30 - +60℃, storing humidity: 10-90%(non-condensed)
|
|
Dimension
|
160mm*115mm*32mm (length*width*height)
|
|
Net weight
|
0.5Kg
|
Applications
◇ Triple-play(GEPON-IP, CATV, VOIP)
◇ FTTx (FTTH, FTTP, FTTB, FTTC)Other products from this supplier
