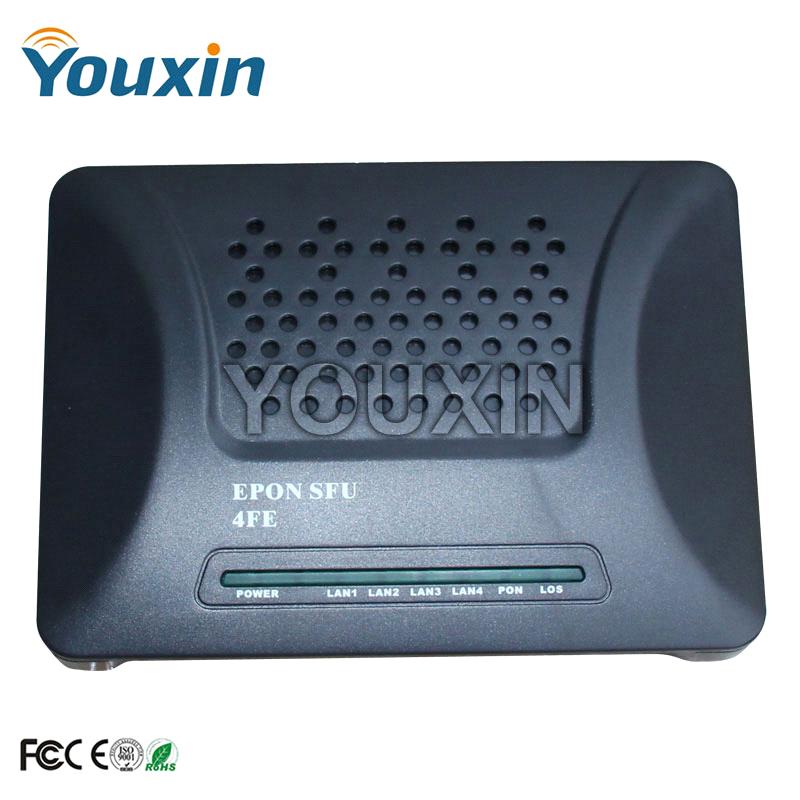

Low Density EPON Data ONU (4x Fast Ethernet Ports.)
| Shipping: | By sea or air |
|---|---|
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Specifications
Optical network unit, 4 10/100Base-T RJ45 ports, 1 PON port for GEPON, SM, single fiber, external power, AC100~240V/DC, 159mm*115mm*35mm (length*width*height)
Features:
◇ Plug and play, integrated auto-detecting, auto-configuration, and auto firmware upgrade, etc.
◇ Integrated OAM remote configuration and maintenance function.
◇ Support rich QinQ VLAN function and IGMP Snoopingmulticast feature.
◇ Functions like transceiver diagnostic monitoring, transmitter disable, etc.
◇ Fully compatibility with OLT based on Broadcom/PMC/Cortinachipset.
◇ Full speed non-blocking switching.
◇ 1K MAC address table.
◇ 64 full range VLAN ID.
◇ Integrated QinQ VLAN, 1:1 VLAN, VLAN reusing, VLANtrunk, etc.
◇ Support port monitoring, port mirroring, port ratelimiting, port SLA, etc.
◇ Support auto polarity detection of Ethernet ports (AUTOMDIX).
◇ Support IEEE802.1p QoS with four level priority queues.
◇ Support IPv4 IGMP snooping and IPv6 MLD snooping.
◇ Notes: YX2801 doesn’ t support the above features.
Description
YX2804/YX2804i , arelow density EPON data ONUs designed for fulfilling FTTH request of telecom operators, internet access of SOHO people and renovation request of EPON+EOCinfrastructure of cable TV operators. These products are based on the stableand mature Gigabit EPON technology, which has high performance/price ratio, andthe technology of layer 2 Ethernet switch as well. They are highly reliable andeasy to maintain, with guaranteed QoS. And they are fully compliant totechnical regulations such as IEEE802.3ah and technical requirement of EPONEquipment (V2.1 and above version) from China Telecom.
Parameter
|
Technical items
|
Descriptions
|
|
Upstream PON
interface
|
1 EPON interface, SC single-mode/single-fibre, symmetric 1.25Gbps
|
|
Wavelength
|
Tx 1310nm, Rx 1490nm
|
|
Optical interface
|
SC/PC connector
|
|

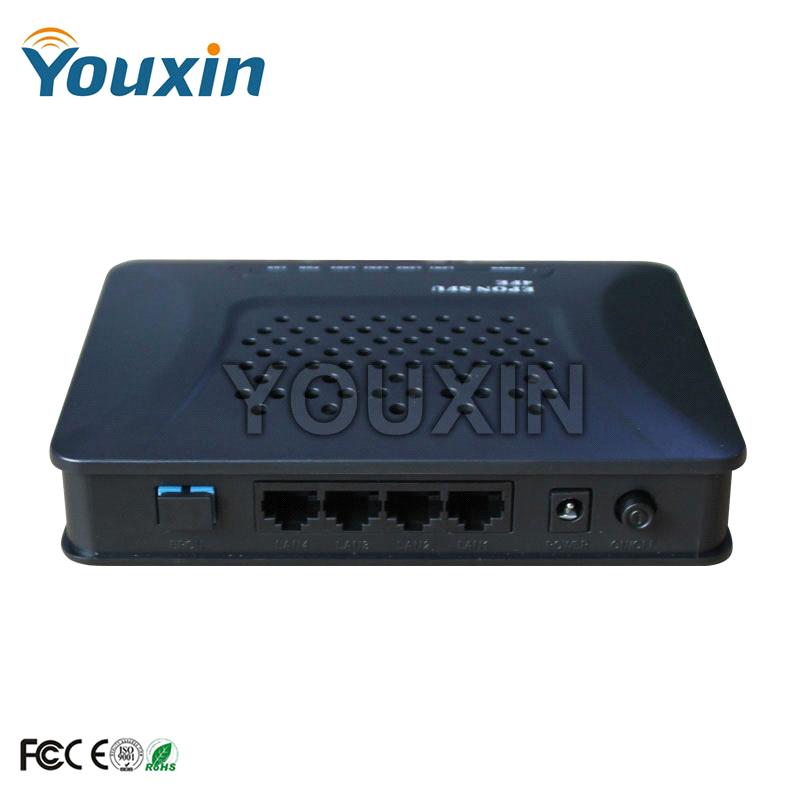

Downstream LAN interface
|
YX2804, YX2804i: 4x 10/100Mbps auto adaptive Ethernet interfaces, Full Duplex/Half Duplex, RJ45 connectors
YX2801: 1x 10/100/1000Mbps auto adaptive Ethernet interface, Full Duplex/Half Duplex, RJ45 connector
|
|
Indicators
|
YX2804, YX2804i: 6 indicators, for status of power, PON port and 4x Fast Ethernet ports.
YX2801: 4 indicators, for status of power, PON port and 1 Giga-Ethernet port.
|
|
DC power supply
|
+12V, external AC-DC power adaptor
|
|
Power switch
|
1, Power On/Off
|
|
Power consumption
|
≤ 3W
|
|
Operating condition
|
YX2801, YX2804
Operating temp: -5 - +55℃, operating humidity: 10-90%(non-condensed)
YX2804i
Operating temp: -40 - +80℃, operating humidity: 10-90%(non-condensed)
|
|
Storing condition
|
Storing temp: -30 - +60℃, storing humidity: 10-90%(non-condensed)
|
|
Dimension
|
YX2801, YX2804: 159mm*115mm*35mm (length*width*height)
YX2804i: 142 mm*113mm*20mm (length*width*height)
|
|
Net weight
|
YX2801: 0.24Kg; YX2804:0.25Kg; YX2804i: 0.12Kg
|
Applications
◇ Triple-play(GEPON-IP, CATV, VOIP)
◇ FTTx (FTTH, FTTP, FTTB, FTTC)Other products from this supplier
